Free 3D Assemblies

2199 3D parts with Assembly · Clear all

• stepMGN12Rotate in 3D

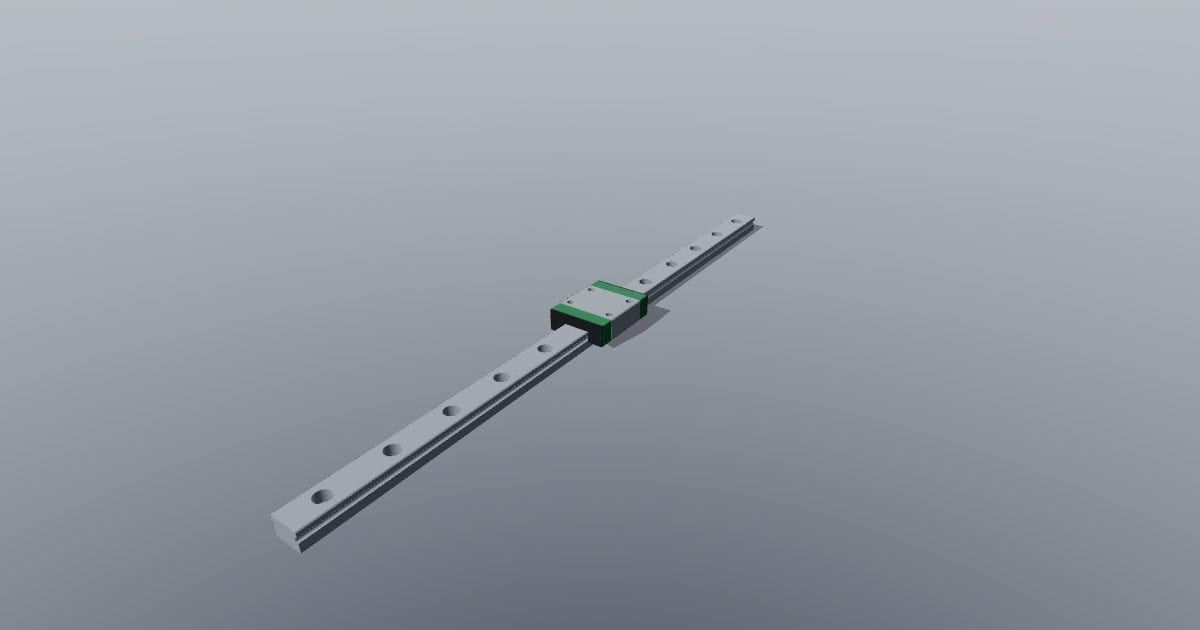

  MGN12C carriage on 300 mm rail

  MGN12C carriage on 300 mm rail, modeled from published dimensions. Overall 27 x 300 x 13 mm. Key dimensions: reference MGN12C; rail length 300 mm; rail width 12 mm; rail height 8 mm; assembled height 13 mm; carriage width 27 mm; carriage length 34.7 mm; steel body length 21.7 mm; mount tap M3; mount depth 3.5 mm; rail hole pitch 25 mm; rail end hole offset 12.5 mm; rail through hole 3.5 mm; rail counterbore 6 mm; rail counterbore depth 4.5 mm. MGN-C/H dimensions follow HIWIN catalog G99TE23-2309, printed page 89. Rail cut length is selected; MGN12 uses symmetric 12.5 mm end offsets at 25 mm pitch. MGN15 uses the published 15 mm end offset. Rail race relief, carriage internal cavity and end-cover shapes are reconstructed. Recirculating balls and grease nipple are omitted. M3 taps are nominal cylindrical envelopes; no running clearance, preload or load performance is simulated. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  524 KBDetails & download
• stepUCP205Rotate in 3D
  UCP205 pillow-block bearing

  UCP205 pillow-block bearing, modeled from published dimensions. Overall 140 x 38.8 x 75.4 mm. Key dimensions: bore 25 mm; shaft axis height 36.5 mm; length 140 mm; base width 38 mm; bolt pitch 105 mm; foot height 16 mm; housing height 70 mm; insert outer diameter 52 mm; insert width 34.1 mm; insert short offset 14.3 mm; grease fitting 1/4-28 UNF nominal, thread omitted. Shaft height, bore, mounting slots, base envelope and insert datums follow the Koyo tables. Housing H2 excludes the grease fitting; its reconstructed fitting adds 5.35 mm. Cast contour, ribs, relief, seal/race details and screw heads are reconstructed. Spherical outer ring is shown upright in a simplified cylindrical seat; self-alignment, rolling elements, preload and load rating are not simulated. M6 set screws have cylindrical thread envelopes. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  371 KBDetails & download
• stepUCP204Rotate in 3D
  UCP204 pillow-block bearing

  UCP204 pillow-block bearing, modeled from published dimensions. Overall 127 x 38 x 70.4 mm. Key dimensions: bore 20 mm; shaft axis height 33.3 mm; length 127 mm; base width 38 mm; bolt pitch 95 mm; foot height 16 mm; housing height 65 mm; insert outer diameter 47 mm; insert width 31 mm; insert short offset 12.7 mm; grease fitting 1/4-28 UNF nominal, thread omitted. Shaft height, bore, mounting slots, base envelope and insert datums follow the Koyo tables. Housing H2 excludes the grease fitting; its reconstructed fitting adds 5.35 mm. Cast contour, ribs, relief, seal/race details and screw heads are reconstructed. Spherical outer ring is shown upright in a simplified cylindrical seat; self-alignment, rolling elements, preload and load rating are not simulated. M6 set screws have cylindrical thread envelopes. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  376 KBDetails & download
• stepUCF205Rotate in 3D
  UCF205 square-flange bearing

  UCF205 square-flange bearing, modeled from published dimensions. Overall 95 x 95 x 35.8 mm. Key dimensions: bore 25 mm; flange square 95 mm; bolt square 70 mm; bolt hole diameter 12 mm; flange thickness 13 mm; housing projection 27 mm; insert center from mount face 16 mm; total projection 35.8 mm; insert outer diameter 52 mm; insert width 34.1 mm; insert short offset 14.3 mm; grease fitting 1/4-28 UNF nominal, thread omitted. Mounting square, hole diameter, flange thickness, insert center and total projection follow the Koyo UCF table. The mount face is Z=0, and the shaft axis is +Z. Cast outline and boss, grease fitting, seals and race details are reconstructed. Spherical insert occupies a simplified cylindrical seat. Rolling elements, self-alignment, preload and load rating are not simulated. M6 set screws have cylindrical thread envelopes. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  304 KBDetails & download
• stepUCF204Rotate in 3D
  UCF204 square-flange bearing

  UCF204 square-flange bearing, modeled from published dimensions. Overall 86 x 86 x 33.3 mm. Key dimensions: bore 20 mm; flange square 86 mm; bolt square 64 mm; bolt hole diameter 12 mm; flange thickness 11 mm; housing projection 25.5 mm; insert center from mount face 15 mm; total projection 33.3 mm; insert outer diameter 47 mm; insert width 31 mm; insert short offset 12.7 mm; grease fitting 1/4-28 UNF nominal, thread omitted. Mounting square, hole diameter, flange thickness, insert center and total projection follow the Koyo UCF table. The mount face is Z=0, and the shaft axis is +Z. Cast outline and boss, grease fitting, seals and race details are reconstructed. Spherical insert occupies a simplified cylindrical seat. Rolling elements, self-alignment, preload and load rating are not simulated. M6 set screws have cylindrical thread envelopes. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  301 KBDetails & download
• stepSC8UURotate in 3D

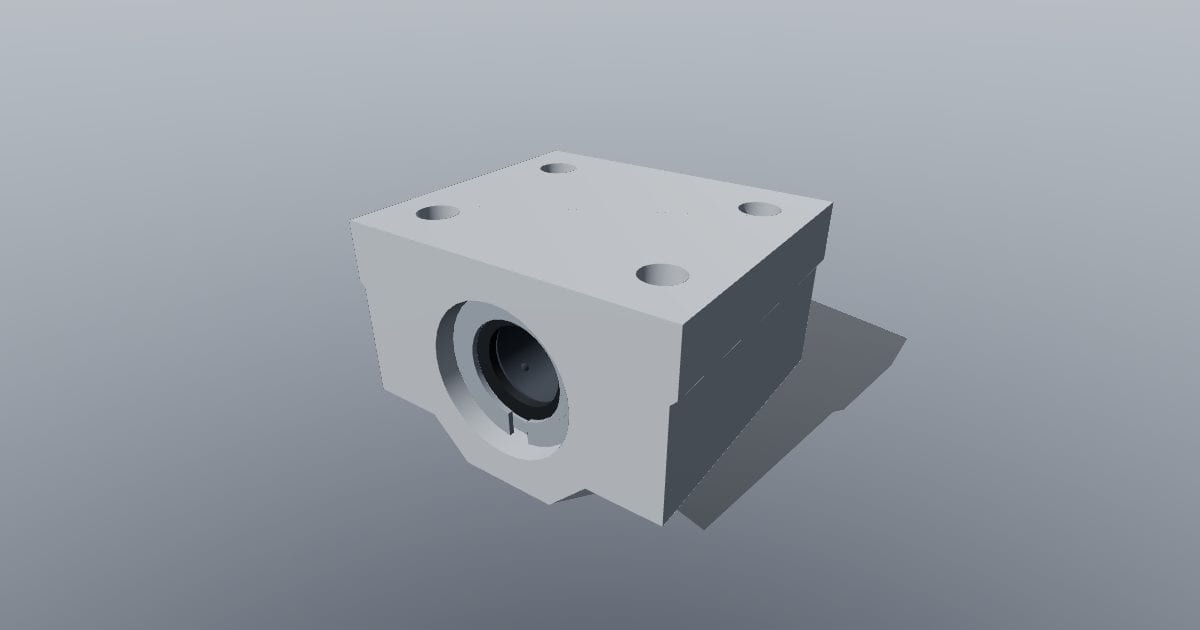

  SC8UU housed linear bearing

  SC8UU housed linear bearing, modeled from published dimensions. Overall 34 x 30 x 22 mm. Key dimensions: shaft bore 8 mm; width 34 mm; length 30 mm; height 22 mm; shaft axis height 11 mm; mount tap M4; mount tap depth 8 mm; through pilot 3.4 mm. Housing envelope, shaft center and four mounting datums follow the SBC SC table. Mounting taps are nominal cylindrical envelopes with the specified pilot continuing through. Housing relief contours and retainers are reconstructed. The bearing uses representative ball/retainer details and is shown unloaded; no stiffness or load rating is assigned. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  1.2 MBDetails & download
• stepSC10UURotate in 3D

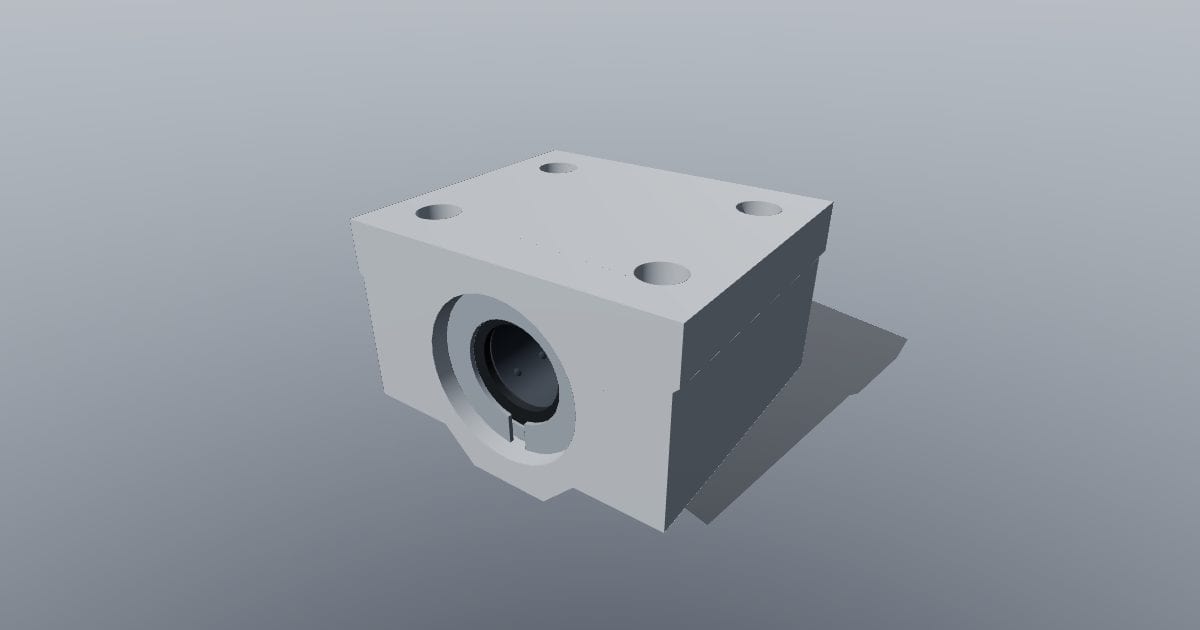

  SC10UU housed linear bearing

  SC10UU housed linear bearing, modeled from published dimensions. Overall 40 x 35 x 26 mm. Key dimensions: shaft bore 10 mm; width 40 mm; length 35 mm; height 26 mm; shaft axis height 13 mm; mount tap M5; mount tap depth 12 mm; through pilot 4.3 mm. Housing envelope, shaft center and four mounting datums follow the SBC SC table. Mounting taps are nominal cylindrical envelopes with the specified pilot continuing through. Housing relief contours and retainers are reconstructed. The bearing uses representative ball/retainer details and is shown unloaded; no stiffness or load rating is assigned. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  1023 KBDetails & download
• stepLM8UURotate in 3D

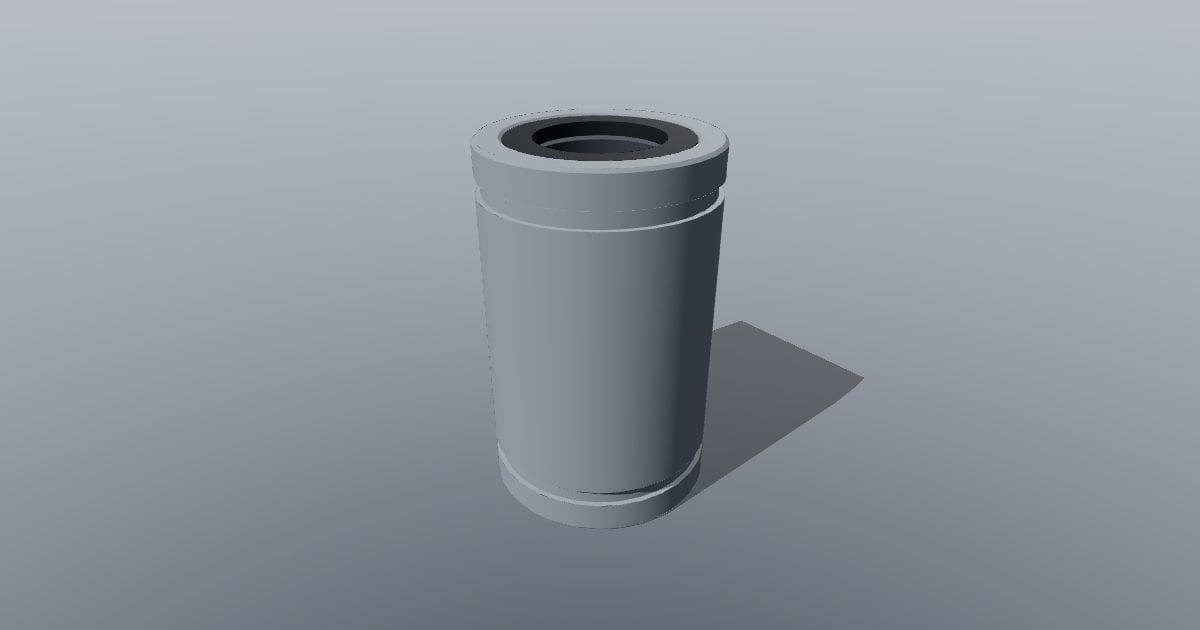

  LM8UU linear ball bushing

  LM8UU linear ball bushing, modeled from published dimensions. Overall 15 x 15 x 24 mm. Key dimensions: shaft bore 8 mm; outside diameter 15 mm; length 24 mm; groove inner edge spacing 17.5 mm; groove root diameter 14.3 mm; groove width 1.1 mm; ball rows 4. Nominal bore, outer envelope and retaining grooves follow the maker table. Modeled at nominal dimensions without tolerance offsets. Ball diameter/count, retainer and seal details are representative; recirculating return tracks, preload, friction and load ratings are not modeled. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  1.1 MBDetails & download
• stepLM10UURotate in 3D

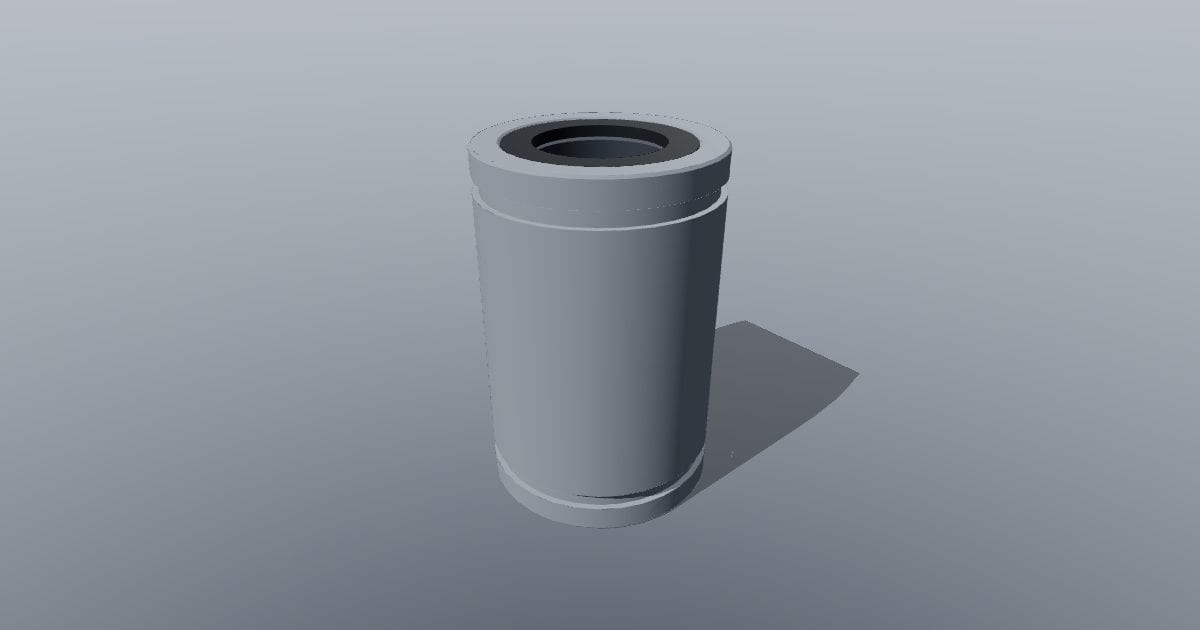

  LM10UU linear ball bushing

  LM10UU linear ball bushing, modeled from published dimensions. Overall 19 x 19 x 29 mm. Key dimensions: shaft bore 10 mm; outside diameter 19 mm; length 29 mm; groove inner edge spacing 22 mm; groove root diameter 18 mm; groove width 1.3 mm; ball rows 4. Nominal bore, outer envelope and retaining grooves follow the maker table. Modeled at nominal dimensions without tolerance offsets. Ball diameter/count, retainer and seal details are representative; recirculating return tracks, preload, friction and load ratings are not modeled. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  894 KBDetails & download
• stepRotate in 3D
  TT-style DG01D dual-output gear motor

  TT-style DG01D dual-output gear motor, modeled from published dimensions. Overall 37.6 x 64.2 x 22.5 mm. Key dimensions: body length 64.2 mm; gearbox thickness 18.8 mm; gearbox height 22.5 mm; shaft span 37.6 mm; output axis from nose 11.2 mm; shaft major diameter 5.4 mm; shaft across flats 3.6 mm; shaft bore 1.9 mm; mount hole diameter 3 mm; mount hole pitch 17.5 mm; mount hole from nose 31.8 mm; motor retainer width 22.5 mm. Installation datums follow the DAGU DG01D-A130 manufacturer drawing hosted by SparkFun. This specific TT-style design is not dimensionally interchangeable with every yellow TT gear motor. Undimensioned shell contour, seam, internal motor seat and metal retaining band are reconstructed. Auxiliary nose lug and electrical terminals are omitted; the 64.2 mm length refers to the dimensioned body datum. Internal gears and performance are not modeled. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  295 KBDetails & download
• stepRotate in 3D
  N20 9 mm gearbox with rear shaft

  N20 9 mm gearbox with rear shaft, modeled from published dimensions. Overall 12 x 10 x 40.2 mm. Key dimensions: gearbox width 12 mm; gearbox height 10 mm; gearbox length 9 mm; motor can length 15 mm; front face to terminal end 25.6 mm; output shaft diameter 3 mm; output D dimension 2.5 mm; output projection 10 mm; output boss diameter 4 mm; output boss projection 0.7 mm; mount pitch 9 mm; mount thread M1.6; rear shaft diameter 1 mm; rear shaft projection 5 mm. Nominal dimensions follow Pololu precious-metal-brush mechanical drawings (datasheet page 8). The long 12.5 mm gearbox envelope corresponds to the 1000:1 option. The shaft flat spans Z=1 to 10 mm; front mounting holes are nominal M1.6 envelopes. Visible spur gear stacks, tooth counts and axles are representative, not a working reduction train. Case seams, post positions and brush/terminal details are reconstructed. No ratio, torque, speed, tolerance or encoder functionality is simulated. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  1.8 MBDetails & download
• stepRotate in 3D
  N20 9 mm gearbox

  N20 9 mm gearbox, modeled from published dimensions. Overall 12 x 10 x 35.6 mm. Key dimensions: gearbox width 12 mm; gearbox height 10 mm; gearbox length 9 mm; motor can length 15 mm; front face to terminal end 25.6 mm; output shaft diameter 3 mm; output D dimension 2.5 mm; output projection 10 mm; output boss diameter 4 mm; output boss projection 0.7 mm; mount pitch 9 mm; mount thread M1.6; rear shaft diameter 0 mm; rear shaft projection 0 mm. Nominal dimensions follow Pololu precious-metal-brush mechanical drawings (datasheet page 8). The long 12.5 mm gearbox envelope corresponds to the 1000:1 option. The shaft flat spans Z=1 to 10 mm; front mounting holes are nominal M1.6 envelopes. Visible spur gear stacks, tooth counts and axles are representative, not a working reduction train. Case seams, post positions and brush/terminal details are reconstructed. No ratio, torque, speed, tolerance or encoder functionality is simulated. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  1.8 MBDetails & download
• stepRotate in 3D
  N20 12.5 mm gearbox with rear shaft

  N20 12.5 mm gearbox with rear shaft, modeled from published dimensions. Overall 12 x 10 x 43.7 mm. Key dimensions: gearbox width 12 mm; gearbox height 10 mm; gearbox length 12.5 mm; motor can length 15 mm; front face to terminal end 29.1 mm; output shaft diameter 3 mm; output D dimension 2.5 mm; output projection 10 mm; output boss diameter 4 mm; output boss projection 0.7 mm; mount pitch 9 mm; mount thread M1.6; rear shaft diameter 1 mm; rear shaft projection 5 mm. Nominal dimensions follow Pololu precious-metal-brush mechanical drawings (datasheet page 8). The long 12.5 mm gearbox envelope corresponds to the 1000:1 option. The shaft flat spans Z=1 to 10 mm; front mounting holes are nominal M1.6 envelopes. Visible spur gear stacks, tooth counts and axles are representative, not a working reduction train. Case seams, post positions and brush/terminal details are reconstructed. No ratio, torque, speed, tolerance or encoder functionality is simulated. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  1.8 MBDetails & download
• stepRotate in 3D
  HS-311 standard servo with original horn

  HS-311 standard servo with original horn, modeled from published dimensions. Overall 58.5 x 20 x 42.8 mm. Key dimensions: case length 40 mm; case width 20 mm; case height 36.5 mm; tab span 53 mm; tab width 20 mm; tab under height 26.5 mm; tab thickness 2.5 mm; mount slot diameter 4.5 mm; output axis x 10 mm; output teeth 24; output major diameter 6 mm; output tip height 41.6 mm; horn true. Body, tab height and mounting pitch follow the manufacturer drawing. Case contours and spline tooth form are reconstructed. Flexible leads, electrical internals and motion are omitted. Taps are nominal cylindrical envelopes. Original single-arm horn has 1.7 mm linkage holes at 3 mm pitch; it is not a vendor horn drawing. HS-311 uses the 2025 MULTIPLEX/Hitec drawing: 53 mm tab span, 47.8 x 10.2 mm slot pattern and 41.6 mm height to the output tip. The nominal 24-tooth output is 6 mm diameter; tooth profile is illustrative. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  805 KBDetails & download
• stepRotate in 3D
  HS-311 standard servo

  HS-311 standard servo, modeled from published dimensions. Overall 53 x 20 x 41.6 mm. Key dimensions: case length 40 mm; case width 20 mm; case height 36.5 mm; tab span 53 mm; tab width 20 mm; tab under height 26.5 mm; tab thickness 2.5 mm; mount slot diameter 4.5 mm; output axis x 10 mm; output teeth 24; output major diameter 6 mm; output tip height 41.6 mm; horn false. Body, tab height and mounting pitch follow the manufacturer drawing. Case contours and spline tooth form are reconstructed. Flexible leads, electrical internals and motion are omitted. Taps are nominal cylindrical envelopes. Bare output shaft; no horn fitted. HS-311 uses the 2025 MULTIPLEX/Hitec drawing: 53 mm tab span, 47.8 x 10.2 mm slot pattern and 41.6 mm height to the output tip. The nominal 24-tooth output is 6 mm diameter; tooth profile is illustrative. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  716 KBDetails & download
• stepRotate in 3D
  FS90-C 9 g micro servo with original horn

  FS90-C 9 g micro servo with original horn, modeled from published dimensions. Overall 36.7 x 12.5 x 31.4 mm. Key dimensions: case length 23.2 mm; case width 12.5 mm; case height 23 mm; tab span 32.6 mm; tab width 11.8 mm; tab under height 16.4 mm; tab thickness 2.4 mm; mount slot diameter 4 mm; output axis x 5.4 mm; output teeth 20; output major diameter 4.8 mm; output tip height 30.5 mm; horn true. Body, tab height and mounting pitch follow the manufacturer drawing. Case contours and spline tooth form are reconstructed. Flexible leads, electrical internals and motion are omitted. Taps are nominal cylindrical envelopes. Original single-arm horn has 1.7 mm linkage holes at 3 mm pitch; it is not a vendor horn drawing. FS90 output center X=5.35 mm is inferred from the case geometry; tab slot diameter 4 mm and spline extension 3.2 mm are selected from the undimensioned drawing. Verify those interfaces against the physical servo before drilling or making a mating spline. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  717 KBDetails & download
• stepRotate in 3D
  FS90-C 9 g micro servo

  FS90-C 9 g micro servo, modeled from published dimensions. Overall 32.6 x 12.5 x 30.5 mm. Key dimensions: case length 23.2 mm; case width 12.5 mm; case height 23 mm; tab span 32.6 mm; tab width 11.8 mm; tab under height 16.4 mm; tab thickness 2.4 mm; mount slot diameter 4 mm; output axis x 5.4 mm; output teeth 20; output major diameter 4.8 mm; output tip height 30.5 mm; horn false. Body, tab height and mounting pitch follow the manufacturer drawing. Case contours and spline tooth form are reconstructed. Flexible leads, electrical internals and motion are omitted. Taps are nominal cylindrical envelopes. Bare output shaft; no horn fitted. FS90 output center X=5.35 mm is inferred from the case geometry; tab slot diameter 4 mm and spline extension 3.2 mm are selected from the undimensioned drawing. Verify those interfaces against the physical servo before drilling or making a mating spline. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  638 KBDetails & download
• stepRotate in 3D
  75 mm swivel brake caster

  75 mm swivel brake caster, modeled from published dimensions. Overall 60 x 107 x 100 mm. Key dimensions: wheel diameter 75 mm; wheel width 25 mm; total height 100 mm; plate width 60 mm; plate length 60 mm; bolt pattern min 38 mm; bolt pattern max 48 mm; slot width 6.2 mm; swivel offset 29 mm; configuration swivel_brake. Installation envelope, wheel size and 38/48 mm diagonal mounting slots follow the LPA/BPA-TPA 75G reference family. Fixed wheels are centered under the mounting plate. Fork stamping, hub holes, race, axle and brake linkage are original simplified reconstructions. Brake is shown released. Bearing internals, elastic tread deformation and load ratings are not modeled. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  449 KBDetails & download
• stepRotate in 3D
  75 mm swivel caster

  75 mm swivel caster, modeled from published dimensions. Overall 60 x 96.5 x 100 mm. Key dimensions: wheel diameter 75 mm; wheel width 25 mm; total height 100 mm; plate width 60 mm; plate length 60 mm; bolt pattern min 38 mm; bolt pattern max 48 mm; slot width 6.2 mm; swivel offset 29 mm; configuration swivel. Installation envelope, wheel size and 38/48 mm diagonal mounting slots follow the LPA/BPA-TPA 75G reference family. Fixed wheels are centered under the mounting plate. Fork stamping, hub holes, race, axle and brake linkage are original simplified reconstructions. Brake is shown released. Bearing internals, elastic tread deformation and load ratings are not modeled. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  300 KBDetails & download
• stepRotate in 3D
  75 mm fixed caster

  75 mm fixed caster, modeled from published dimensions. Overall 60 x 75 x 100 mm. Key dimensions: wheel diameter 75 mm; wheel width 25 mm; total height 100 mm; plate width 60 mm; plate length 60 mm; bolt pattern min 38 mm; bolt pattern max 48 mm; slot width 6.2 mm; swivel offset 0 mm; configuration fixed. Installation envelope, wheel size and 38/48 mm diagonal mounting slots follow the LPA/BPA-TPA 75G reference family. Fixed wheels are centered under the mounting plate. Fork stamping, hub holes, race, axle and brake linkage are original simplified reconstructions. Brake is shown released. Bearing internals, elastic tread deformation and load ratings are not modeled. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  265 KBDetails & download
• stepRotate in 3D
  550 mm ball-bearing drawer slide, extended

  550 mm ball-bearing drawer slide, extended, modeled from published dimensions. Overall 1109 x 12.7 x 45 mm. Key dimensions: closed length 550 mm; travel 559 mm; shown extension 559 mm; installation thickness 12.7 mm; height 45 mm; reference series Accuride 3832; state extended. Length, travel, 45 x 12.7 mm installation envelope and listed primary mounting datums follow the source. Coordinates start at the front end of each rail before extension. Folded races, ball diameter/count, cage, disconnect lever and auxiliary punched features are simplified. Only the listed main holes are dimensionally specified; this is not a complete drilling template or load-rated mechanism. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  364 KBDetails & download
• stepRotate in 3D
  550 mm ball-bearing drawer slide, closed

  550 mm ball-bearing drawer slide, closed, modeled from published dimensions. Overall 550 x 12.7 x 45 mm. Key dimensions: closed length 550 mm; travel 559 mm; shown extension 0 mm; installation thickness 12.7 mm; height 45 mm; reference series Accuride 3832; state closed. Length, travel, 45 x 12.7 mm installation envelope and listed primary mounting datums follow the source. Coordinates start at the front end of each rail before extension. Folded races, ball diameter/count, cage, disconnect lever and auxiliary punched features are simplified. Only the listed main holes are dimensionally specified; this is not a complete drilling template or load-rated mechanism. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  364 KBDetails & download
• stepRotate in 3D
  500 mm ball-bearing drawer slide, closed

  500 mm ball-bearing drawer slide, closed, modeled from published dimensions. Overall 500 x 12.7 x 45 mm. Key dimensions: closed length 500 mm; travel 508 mm; shown extension 0 mm; installation thickness 12.7 mm; height 45 mm; reference series Accuride 3832; state closed. Length, travel, 45 x 12.7 mm installation envelope and listed primary mounting datums follow the source. Coordinates start at the front end of each rail before extension. Folded races, ball diameter/count, cage, disconnect lever and auxiliary punched features are simplified. Only the listed main holes are dimensionally specified; this is not a complete drilling template or load-rated mechanism. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  339 KBDetails & download
• stepRotate in 3D
  450 mm ball-bearing drawer slide, closed

  450 mm ball-bearing drawer slide, closed, modeled from published dimensions. Overall 450 x 12.7 x 45 mm. Key dimensions: closed length 450 mm; travel 457 mm; shown extension 0 mm; installation thickness 12.7 mm; height 45 mm; reference series Accuride 3832; state closed. Length, travel, 45 x 12.7 mm installation envelope and listed primary mounting datums follow the source. Coordinates start at the front end of each rail before extension. Folded races, ball diameter/count, cage, disconnect lever and auxiliary punched features are simplified. Only the listed main holes are dimensionally specified; this is not a complete drilling template or load-rated mechanism. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

  339 KBDetails & download

Looking for 2D drawings, blocks and details? Browse the Drawing Library (1332).
