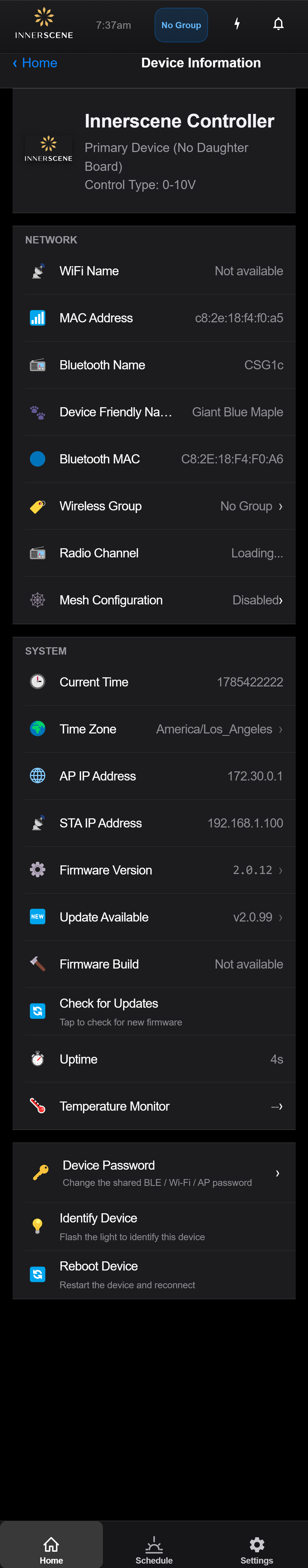

Device Info screen
Device Info
Displays device identity, network addresses, system status, firmware version, mesh configuration (primary fixtures only), and provides quick access to device actions.
Controls on this screen
- Device Name
The name of this Innerscene Controller. Shown at the top of the device info page along with the device role (Primary or Secondary fixture).
- MAC Address
The unique hardware MAC address of the device's WiFi interface. This address is factory-assigned and cannot be changed. Used to identify the device on the network.
- Bluetooth Name
The Bluetooth Low Energy (BLE) broadcast name used when scanning for devices from a phone or tablet. This is the name that appears in the Devices tab.
- Bluetooth MAC
The unique hardware MAC address of the device's Bluetooth interface. Used for BLE device identification and pairing.
- Wireless Group
Shows the current wireless synchronization group. Tap to navigate to the [[wireless_group|Wireless Group]] configuration page where you can change the group or scan for peer fixtures.
- Mesh Configuration
Shows the current Mesh Rebroadcast setting and provides quick access to change it. Tap to jump to the [[system_config|System Configuration]] page and scroll directly to the Mesh Rebroadcast Range control. Only appears on primary fixtures, since mesh rebroadcast is configured on the primary that originates the broadcasts.
- Current Time
The device's current local time, based on its timezone setting and NTP synchronization. If the device has internet access, time is automatically synchronized.
- Time Zone
Shows the currently configured timezone. Tap to navigate to the Settings page where you can change the timezone.
- AP IP Address
The IP address of the device's own WiFi access point. Connect to the device's WiFi network and navigate to this address in a browser to access the control interface. Default is 192.168.6.1.
- STA IP Address
The IP address assigned to the device when it's connected to an external WiFi network. Only visible when the device has an active WiFi station connection.
- Firmware Version
Shows the currently installed firmware version. Tap to view additional firmware details. Firmware can be updated via the Advanced > Firmware & Updates page.
- Uptime
How long the device has been running since its last reboot. Shown in days, hours, and minutes. Useful for verifying device stability.
- Temperature Monitor
Shows the current internal temperature of the device. Tap to open the [[temperature|Temperature Monitor]] page with a historical graph, min/max/average readings, and peer device temperatures.
- Identify Device
Briefly flashes the physical light fixture to help you identify which device you're viewing information about. Useful when managing multiple fixtures in an installation.
- Reboot Device
Immediately restarts the device. The device will disconnect briefly and reconnect once the reboot is complete. All saved settings are preserved across reboots.
Related screens
Open this screen in the interactive guide to explore it with clickable callouts, search, and a live simulator, or browse all screens.
