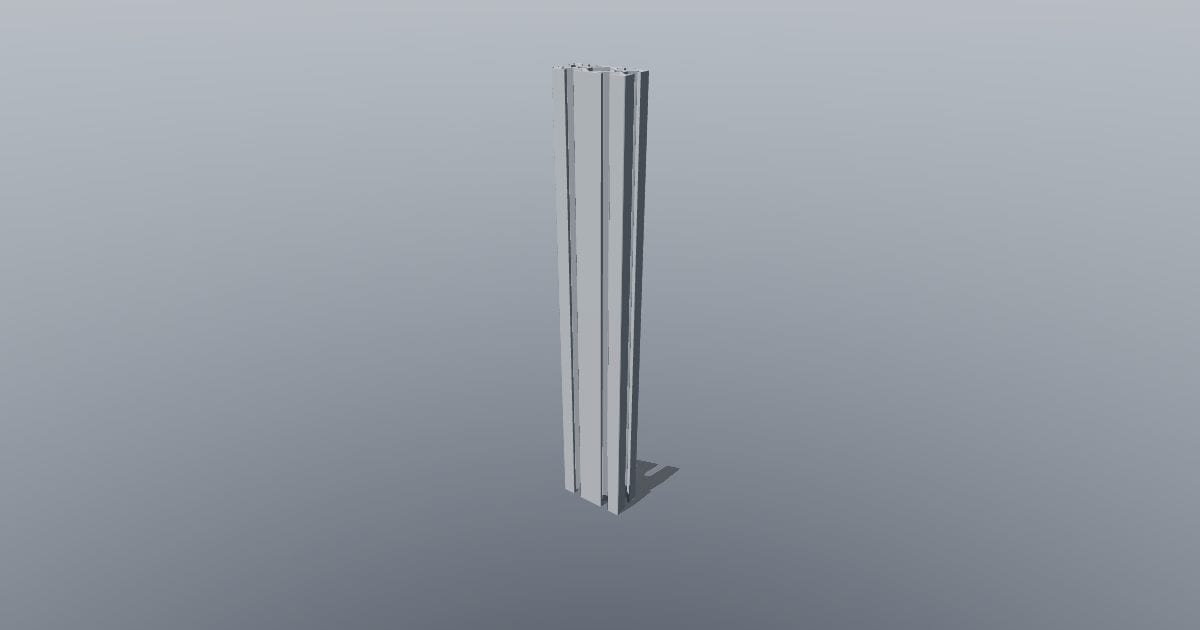

T-slot 20 x 40 x 250 mm
T-slot 20 x 40 x 250 mm, modeled from published dimensions. Overall 40 x 20 x 250 mm. Key dimensions: width 40 mm; height 20 mm; length 250 mm; slot pitch 20 mm; slot throat 5 mm; core bore 4.3 mm; profile series I-type slot 5. Nominal outer envelope, slot pitch/throat and core holes follow the cited drawings. Length is a selected 250 mm cut. Core holes are untapped. T-slot geometry follows the I-type slot-5 profile, not the visually similar slot-6 or slot-8 systems. Undimensioned internal webs, center cavities and small corner radii are reconstructed approximations. Do not use the mesh to derive section stiffness, supplier mass or unlisted mating tolerances. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
303 KBDetails & download
step20 x 20Rotate in 3D

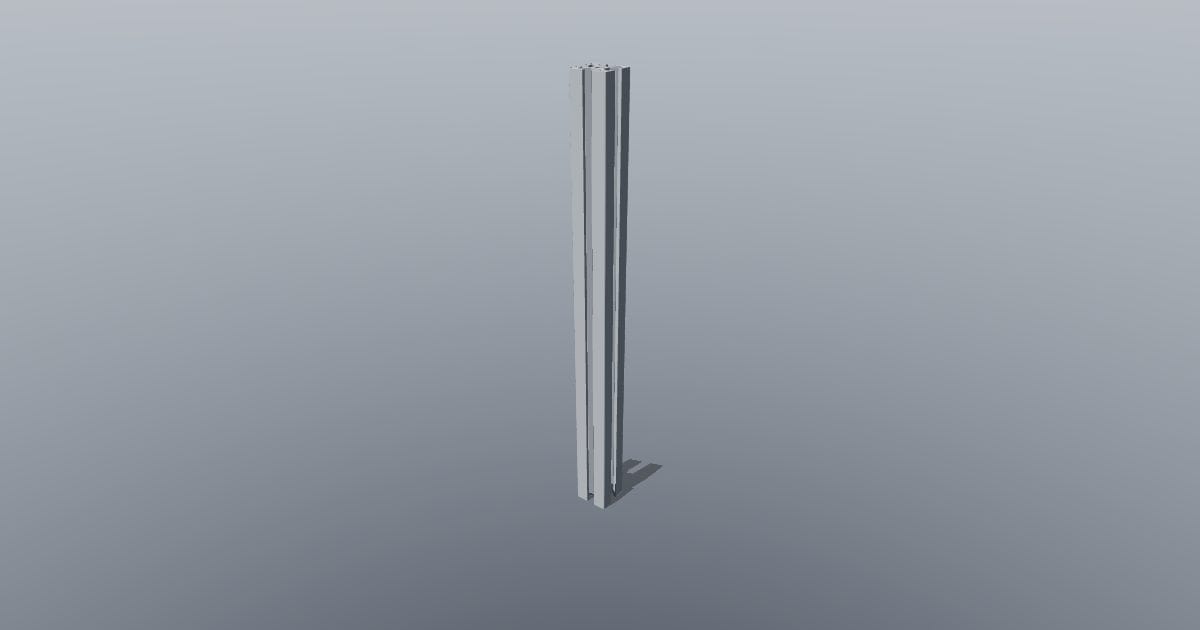

T-slot 20 x 20 x 250 mm
T-slot 20 x 20 x 250 mm, modeled from published dimensions. Overall 20 x 20 x 250 mm. Key dimensions: width 20 mm; height 20 mm; length 250 mm; slot pitch 20 mm; slot throat 5 mm; core bore 4.3 mm; profile series I-type slot 5. Nominal outer envelope, slot pitch/throat and core holes follow the cited drawings. Length is a selected 250 mm cut. Core holes are untapped. T-slot geometry follows the I-type slot-5 profile, not the visually similar slot-6 or slot-8 systems. Undimensioned internal webs, center cavities and small corner radii are reconstructed approximations. Do not use the mesh to derive section stiffness, supplier mass or unlisted mating tolerances. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
190 KBDetails & download
stepRotate in 3D

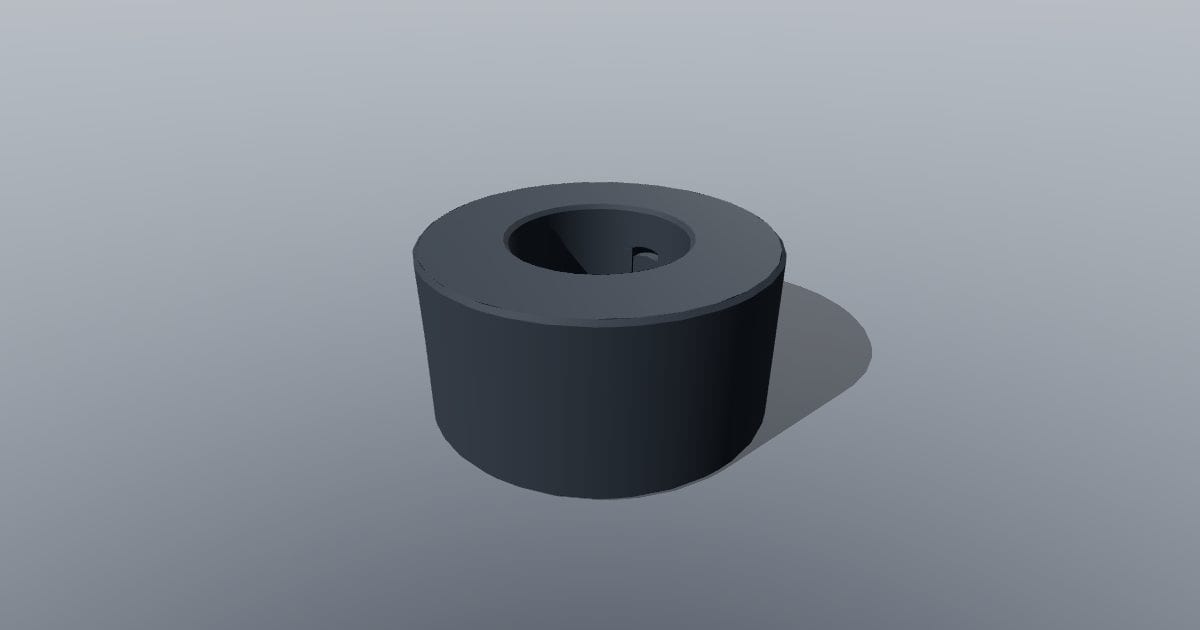

8 mm set screw shaft collar
8 mm set screw shaft collar, modeled from published dimensions. Overall 16 x 16 x 8 mm. Key dimensions: bore 8 mm; collar outer diameter 16 mm; collar width 8 mm; screw diameter 4 mm; screw length 4 mm; reference part MSC-8-F. Bore, collar OD/width and set-screw size follow the source. The screw tip is positioned just clear of the nominal shaft; longer screw sizes protrude accordingly. Cup-point and internal tapped-hole detail are simplified. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Nominal bore; published manufacturing tolerances are not applied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
383 KBDetails & download
stepRotate in 3D

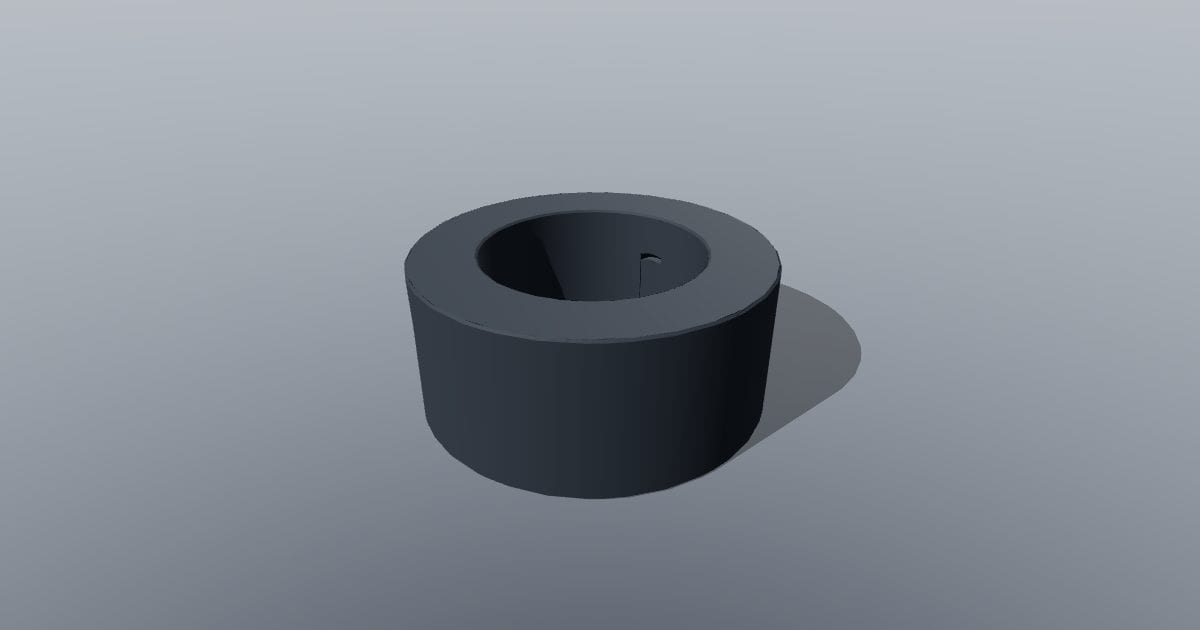

20 mm set screw shaft collar
20 mm set screw shaft collar, modeled from published dimensions. Overall 32 x 34 x 14 mm. Key dimensions: bore 20 mm; collar outer diameter 32 mm; collar width 14 mm; screw diameter 6 mm; screw length 8 mm; reference part MSC-20-F. Bore, collar OD/width and set-screw size follow the source. The screw tip is positioned just clear of the nominal shaft; longer screw sizes protrude accordingly. Cup-point and internal tapped-hole detail are simplified. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Nominal bore; published manufacturing tolerances are not applied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
460 KBDetails & download
stepRotate in 3D
12 mm set screw shaft collar
12 mm set screw shaft collar, modeled from published dimensions. Overall 22 x 23 x 12 mm. Key dimensions: bore 12 mm; collar outer diameter 22 mm; collar width 12 mm; screw diameter 6 mm; screw length 6 mm; reference part MSC-12-F. Bore, collar OD/width and set-screw size follow the source. The screw tip is positioned just clear of the nominal shaft; longer screw sizes protrude accordingly. Cup-point and internal tapped-hole detail are simplified. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Nominal bore; published manufacturing tolerances are not applied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
412 KBDetails & download
stepRotate in 3D

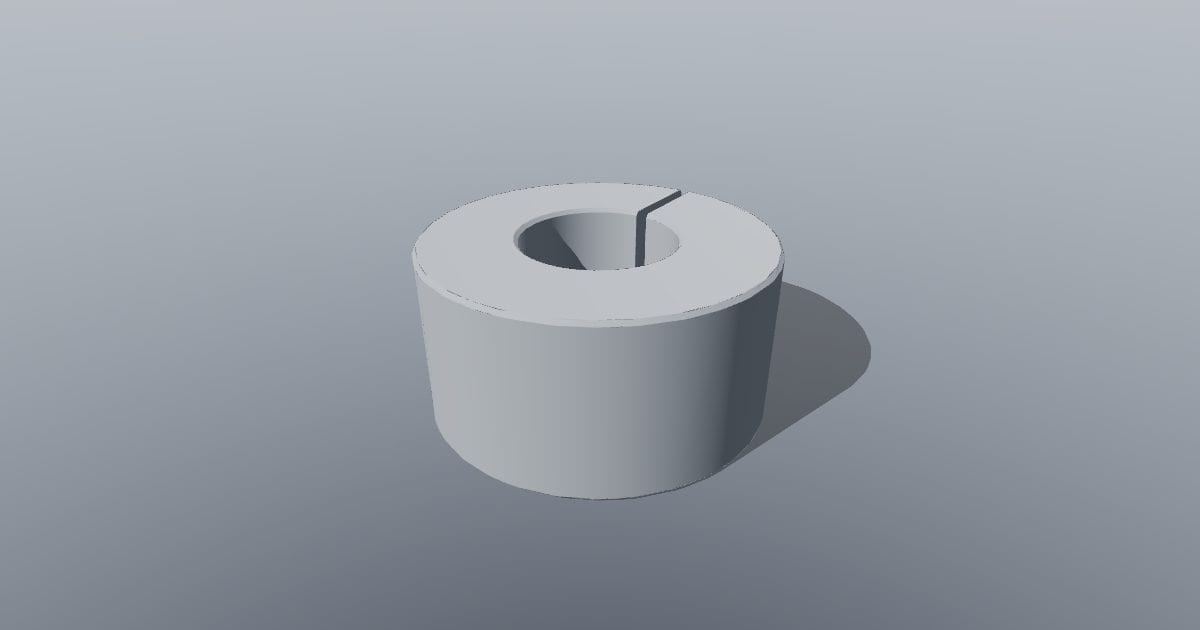

8 mm clamp shaft collar
8 mm clamp shaft collar, modeled from published dimensions. Overall 18 x 18.3 x 9 mm. Key dimensions: bore 8 mm; collar outer diameter 18 mm; collar width 9 mm; screw diameter 3 mm; screw length 8 mm; reference part MCL-8-A; screw axis offset 6.5 mm; published clearance diameter max 22.4 mm; split gap 0.6 mm. Bore, collar OD/width, screw size and radial screw-axis offset follow the source. Screw seating position is chosen within the published clearance diameter. Slit width and machining reliefs are representative. Internal tapped hole is a clearance envelope, not an additional helical thread. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Nominal bore; published manufacturing tolerances are not applied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
683 KBDetails & download
stepRotate in 3D

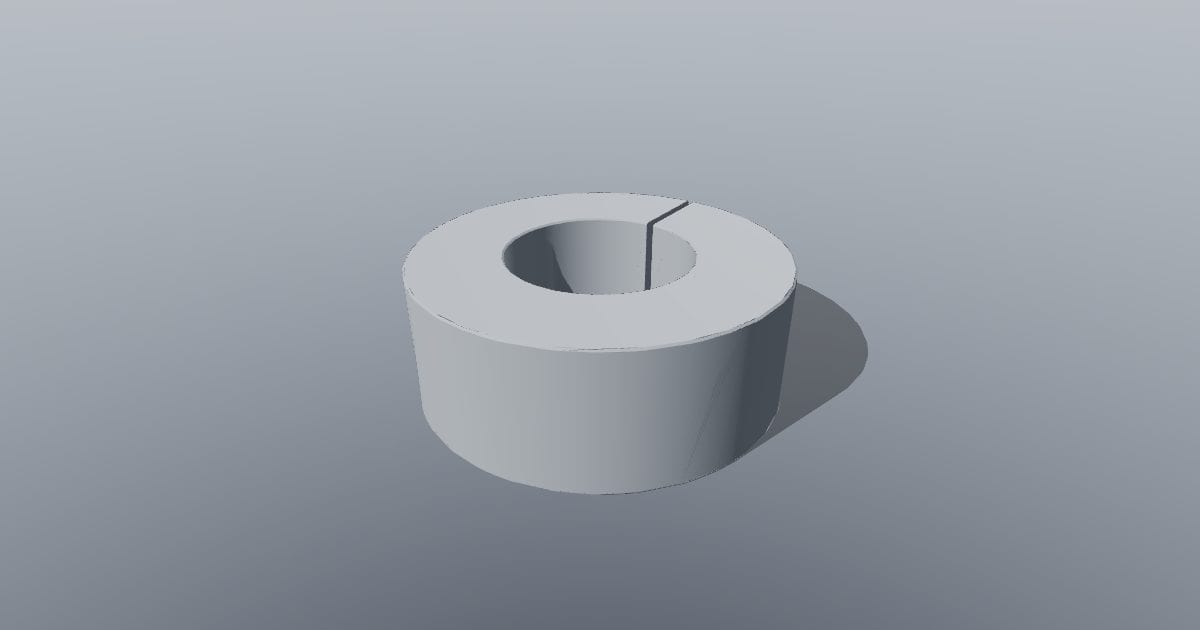

20 mm clamp shaft collar
20 mm clamp shaft collar, modeled from published dimensions. Overall 40 x 40 x 15 mm. Key dimensions: bore 20 mm; collar outer diameter 40 mm; collar width 15 mm; screw diameter 6 mm; screw length 16 mm; reference part MCL-20-A; screw axis offset 14.7 mm; published clearance diameter max 47.4 mm; split gap 0.8 mm. Bore, collar OD/width, screw size and radial screw-axis offset follow the source. Screw seating position is chosen within the published clearance diameter. Slit width and machining reliefs are representative. Internal tapped hole is a clearance envelope, not an additional helical thread. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Nominal bore; published manufacturing tolerances are not applied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
820 KBDetails & download
stepRotate in 3D

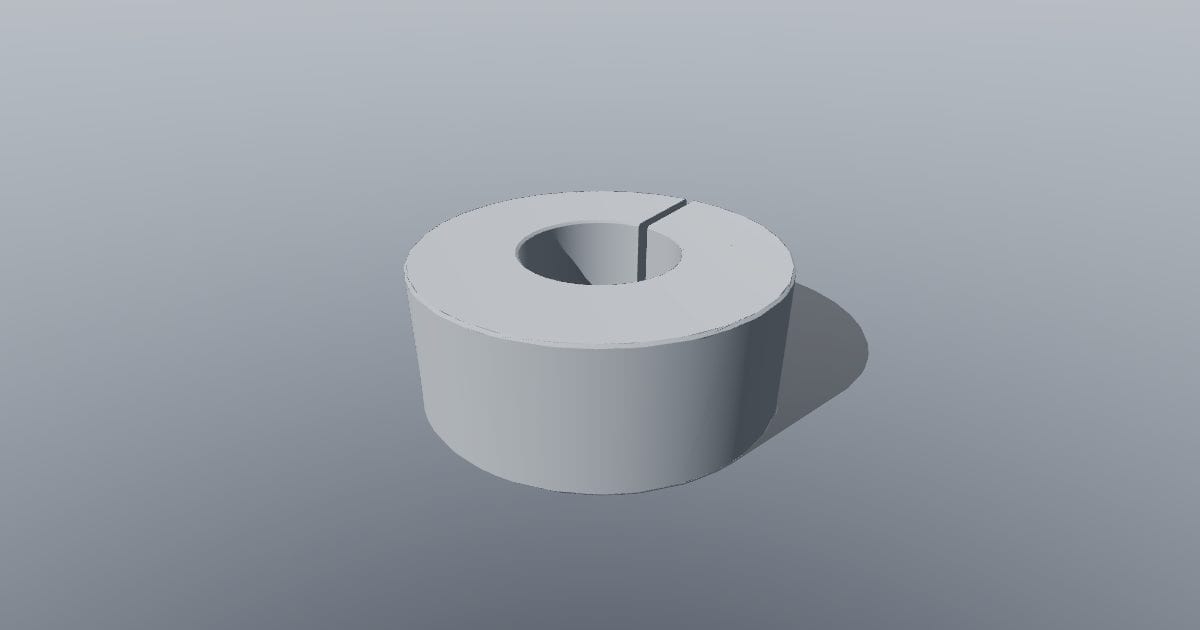

12 mm clamp shaft collar
12 mm clamp shaft collar, modeled from published dimensions. Overall 28 x 28 x 11 mm. Key dimensions: bore 12 mm; collar outer diameter 28 mm; collar width 11 mm; screw diameter 4 mm; screw length 12 mm; reference part MCL-12-A; screw axis offset 10 mm; published clearance diameter max 32 mm; split gap 0.8 mm. Bore, collar OD/width, screw size and radial screw-axis offset follow the source. Screw seating position is chosen within the published clearance diameter. Slit width and machining reliefs are representative. Internal tapped hole is a clearance envelope, not an additional helical thread. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Nominal bore; published manufacturing tolerances are not applied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
818 KBDetails & download
stepM5Rotate in 3D

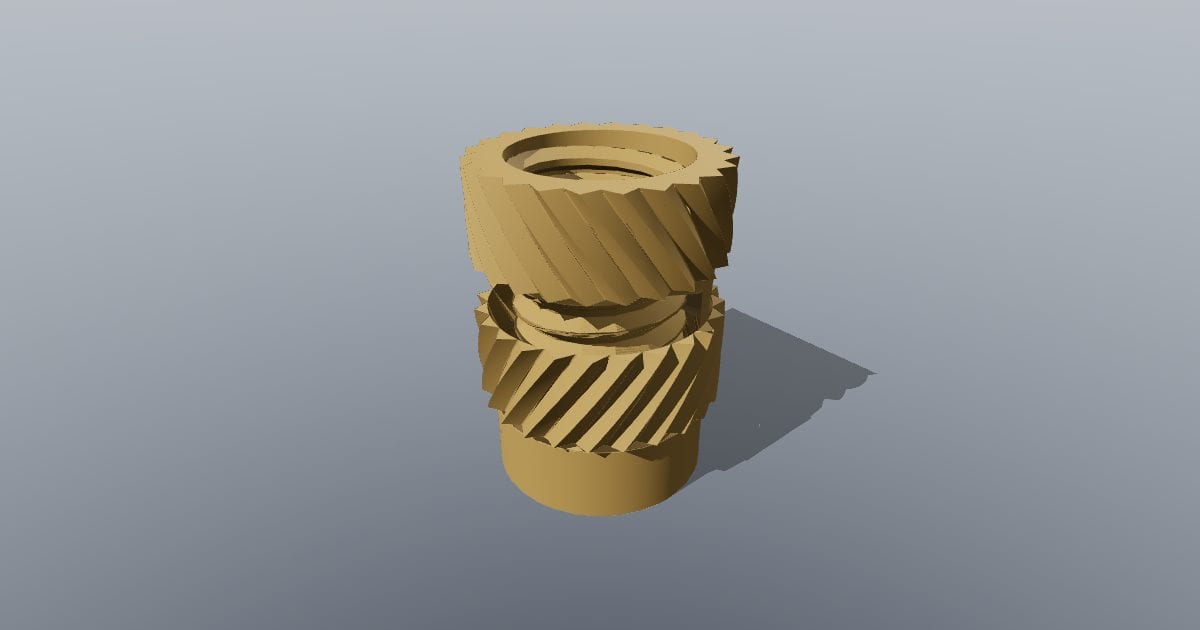

Heat-set insert M5
Heat-set insert M5, modeled from published dimensions. Overall 7.1 x 7.1 x 9.5 mm. Key dimensions: thread diameter 5 mm; pitch 0.8 mm; maximum knurl diameter 7.1 mm; lead in diameter 6.3 mm; length 9.5 mm; manufacturer recommended hole 6.4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Outside diameter, pilot diameter and length follow the RX-series drawing. Tooth count, band positions and helix angles are representative rather than manufacturing tooling geometry. The cited hole diameter is a manufacturer starting dimension; the model does not simulate heat insertion or plastic flow. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
1.6 MBDetails & download
stepM4Rotate in 3D

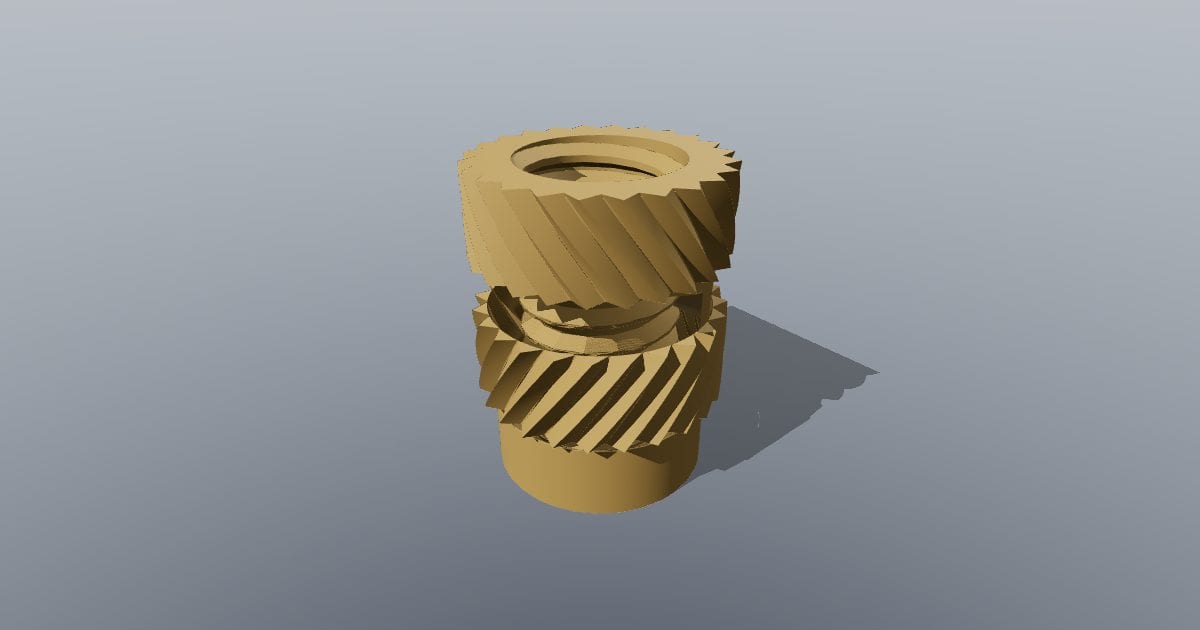

Heat-set insert M4
Heat-set insert M4, modeled from published dimensions. Overall 6.3 x 6.3 x 8.1 mm. Key dimensions: thread diameter 4 mm; pitch 0.7 mm; maximum knurl diameter 6.3 mm; lead in diameter 5.5 mm; length 8.1 mm; manufacturer recommended hole 5.6 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Outside diameter, pilot diameter and length follow the RX-series drawing. Tooth count, band positions and helix angles are representative rather than manufacturing tooling geometry. The cited hole diameter is a manufacturer starting dimension; the model does not simulate heat insertion or plastic flow. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
1.6 MBDetails & download
stepM3Rotate in 3D

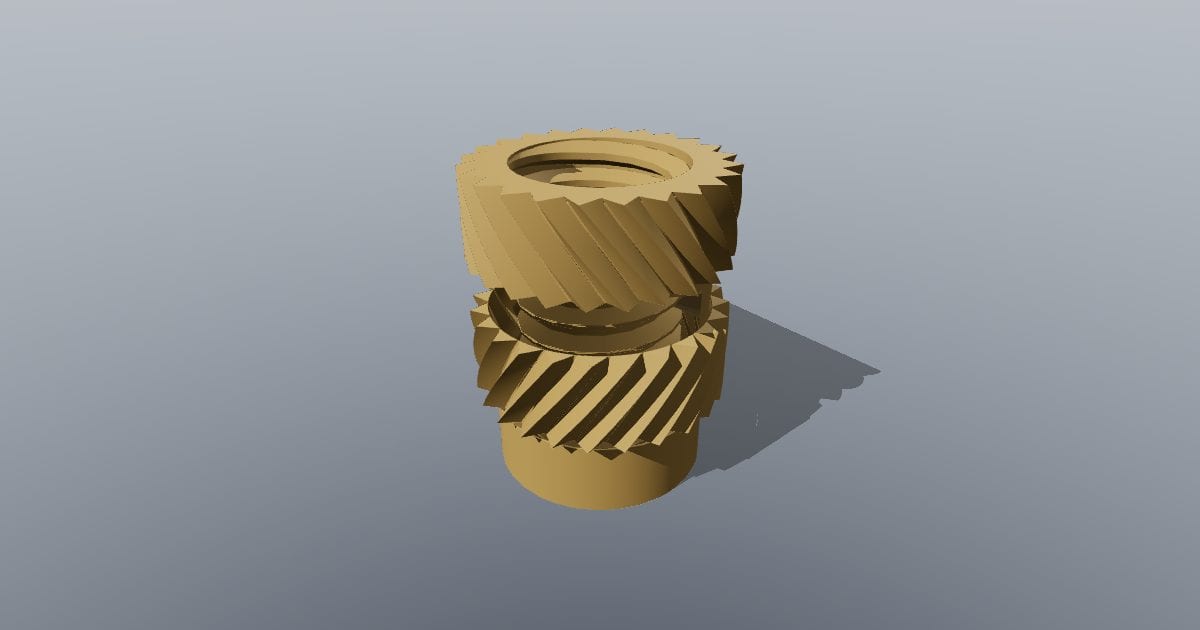

Heat-set insert M3
Heat-set insert M3, modeled from published dimensions. Overall 4.6 x 4.6 x 5.7 mm. Key dimensions: thread diameter 3 mm; pitch 0.5 mm; maximum knurl diameter 4.6 mm; lead in diameter 3.9 mm; length 5.7 mm; manufacturer recommended hole 4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Outside diameter, pilot diameter and length follow the RX-series drawing. Tooth count, band positions and helix angles are representative rather than manufacturing tooling geometry. The cited hole diameter is a manufacturer starting dimension; the model does not simulate heat insertion or plastic flow. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
1.5 MBDetails & download
stepM2.5Rotate in 3D

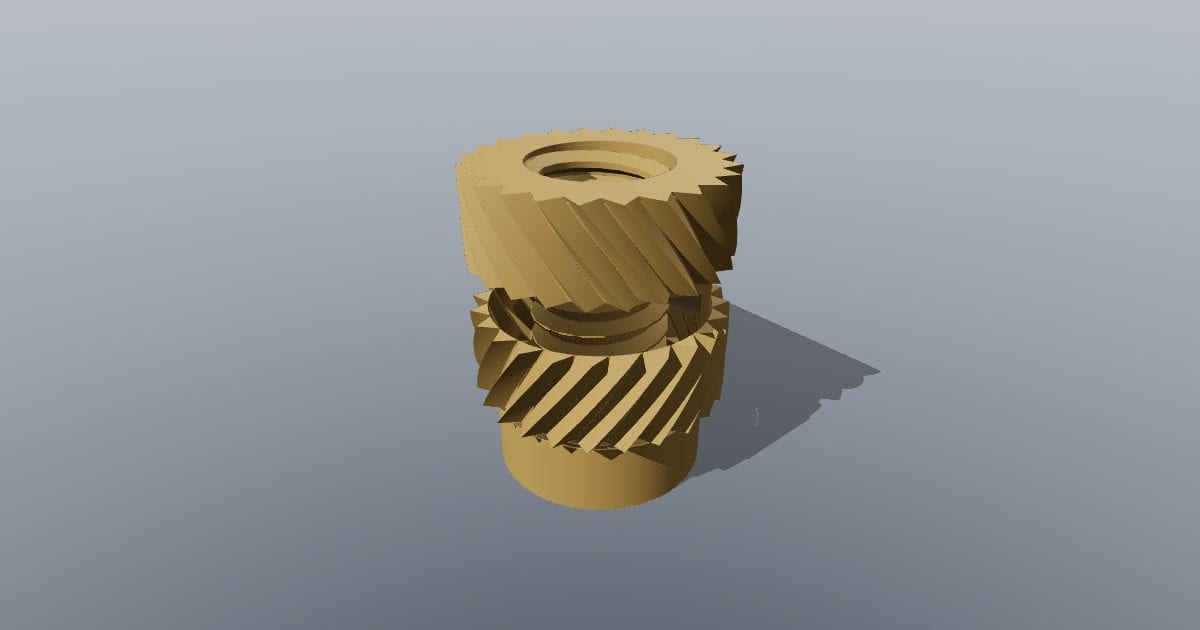

Heat-set insert M2.5
Heat-set insert M2.5, modeled from published dimensions. Overall 4.6 x 4.6 x 5.7 mm. Key dimensions: thread diameter 2.5 mm; pitch 0.5 mm; maximum knurl diameter 4.6 mm; lead in diameter 3.9 mm; length 5.7 mm; manufacturer recommended hole 4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Outside diameter, pilot diameter and length follow the RX-series drawing. Tooth count, band positions and helix angles are representative rather than manufacturing tooling geometry. The cited hole diameter is a manufacturer starting dimension; the model does not simulate heat insertion or plastic flow. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
1.6 MBDetails & download
stepM2Rotate in 3D

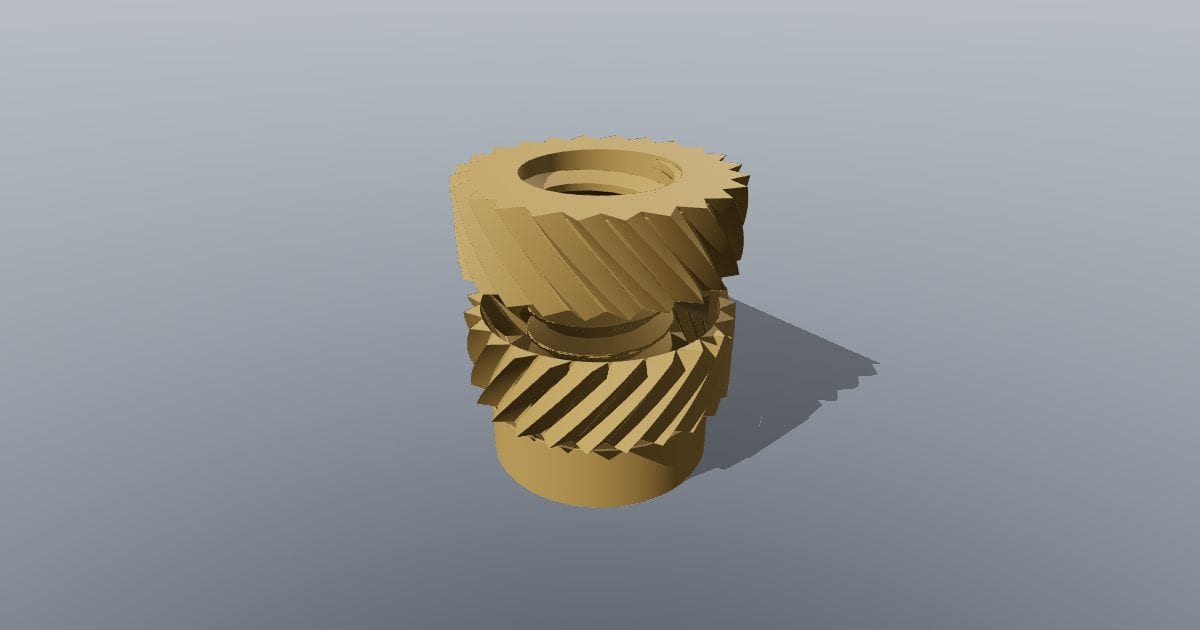

Heat-set insert M2
Heat-set insert M2, modeled from published dimensions. Overall 3.6 x 3.6 x 4 mm. Key dimensions: thread diameter 2 mm; pitch 0.4 mm; maximum knurl diameter 3.6 mm; lead in diameter 3.1 mm; length 4 mm; manufacturer recommended hole 3.2 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Outside diameter, pilot diameter and length follow the RX-series drawing. Tooth count, band positions and helix angles are representative rather than manufacturing tooling geometry. The cited hole diameter is a manufacturer starting dimension; the model does not simulate heat insertion or plastic flow. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
1.5 MBDetails & download
step#8-32Rotate in 3D

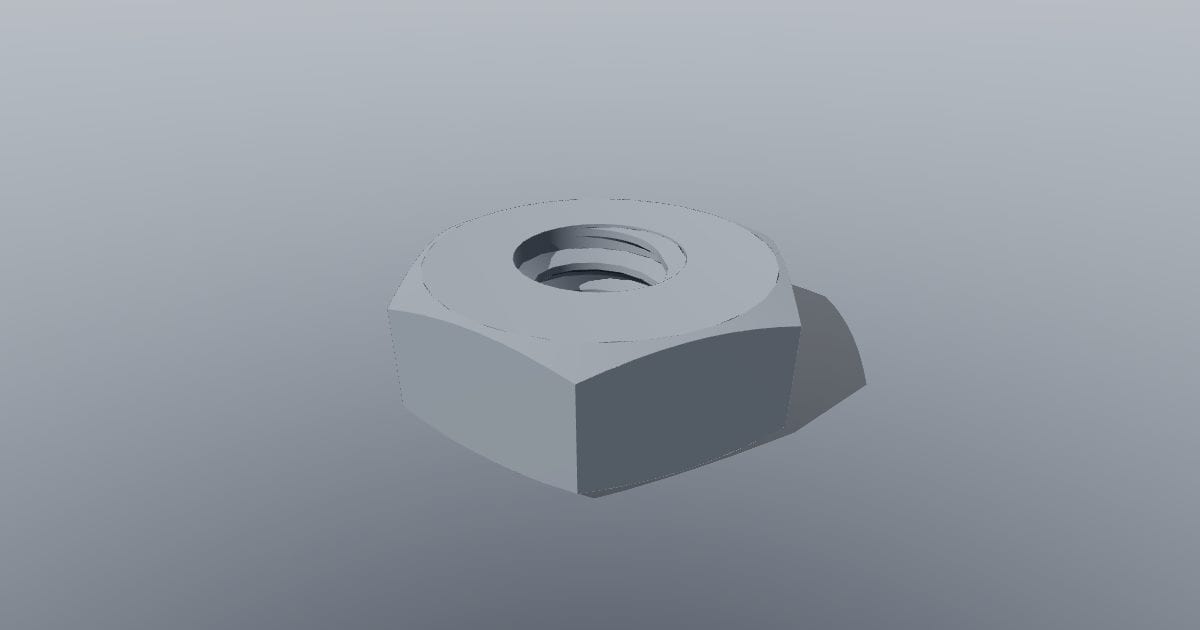

Hex nut #8-32 UNC
Hex nut #8-32 UNC, modeled from published dimensions. Overall 10.1 x 8.7 x 3.3 mm. Key dimensions: thread #8-32; thread diameter 4.2 mm; threads per inch 32; pitch 0.8 mm; inch to 25.4 mm; across flats 8.7 mm; height 3.3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
345 KBDetails & download
step7/16-14Rotate in 3D

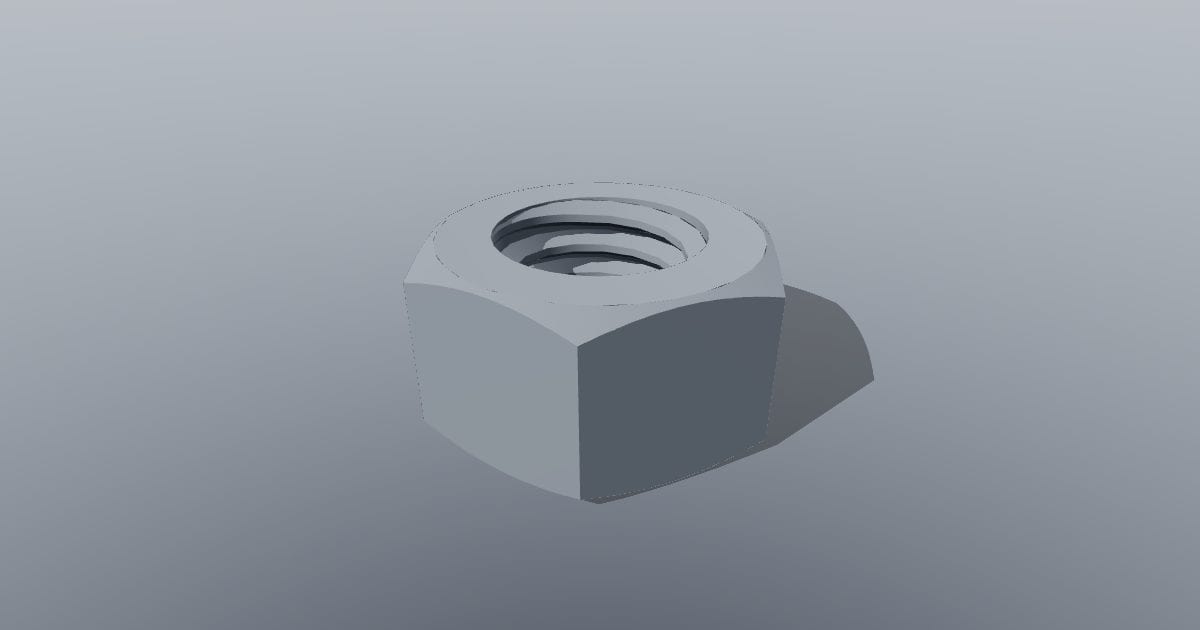

Hex nut 7/16-14 UNC
Hex nut 7/16-14 UNC, modeled from published dimensions. Overall 20.2 x 17.5 x 9.8 mm. Key dimensions: thread 7/16-14; thread diameter 11.1 mm; threads per inch 14; pitch 1.8 mm; inch to 25.4 mm; across flats 17.5 mm; height 9.8 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
423 KBDetails & download
step#6-32Rotate in 3D

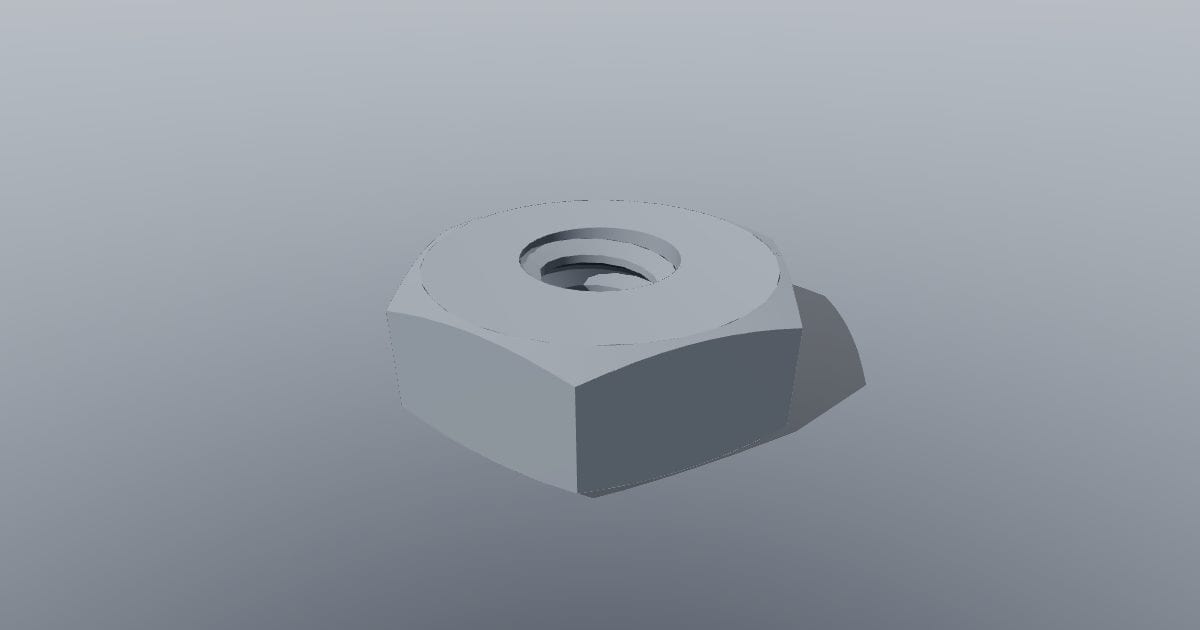

Hex nut #6-32 UNC
Hex nut #6-32 UNC, modeled from published dimensions. Overall 9.2 x 7.9 x 2.9 mm. Key dimensions: thread #6-32; thread diameter 3.5 mm; threads per inch 32; pitch 0.8 mm; inch to 25.4 mm; across flats 7.9 mm; height 2.9 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
298 KBDetails & download
step5/16-18Rotate in 3D

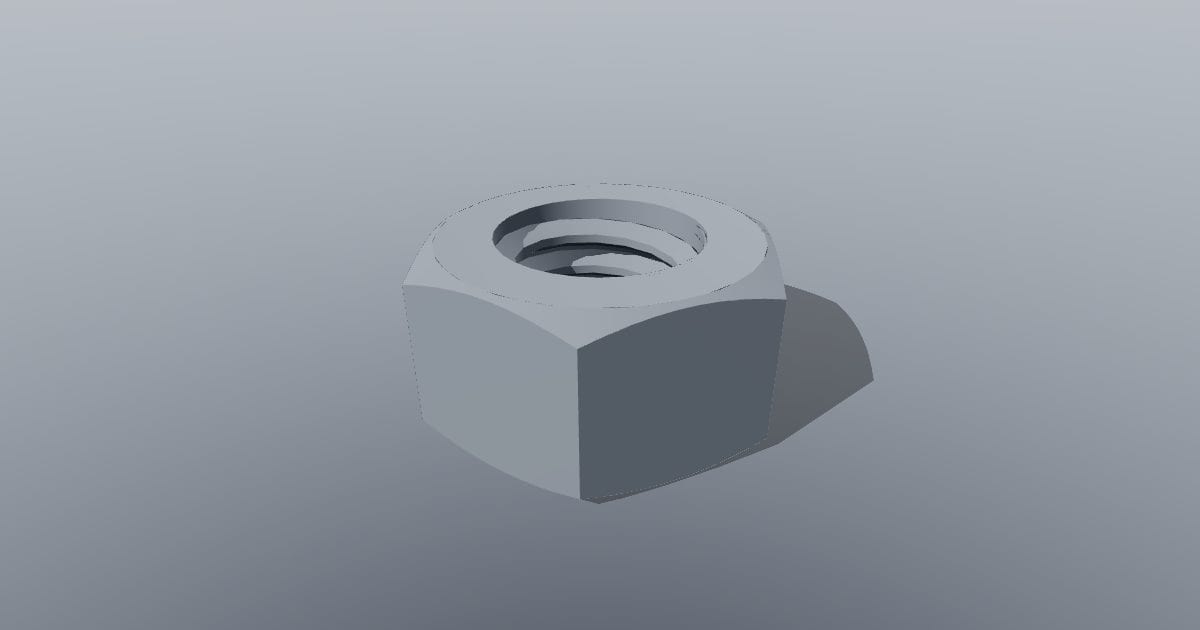

Hex nut 5/16-18 UNC
Hex nut 5/16-18 UNC, modeled from published dimensions. Overall 14.7 x 12.7 x 6.9 mm. Key dimensions: thread 5/16-18; thread diameter 7.9 mm; threads per inch 18; pitch 1.4 mm; inch to 25.4 mm; across flats 12.7 mm; height 6.9 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
388 KBDetails & download
step#4-40Rotate in 3D

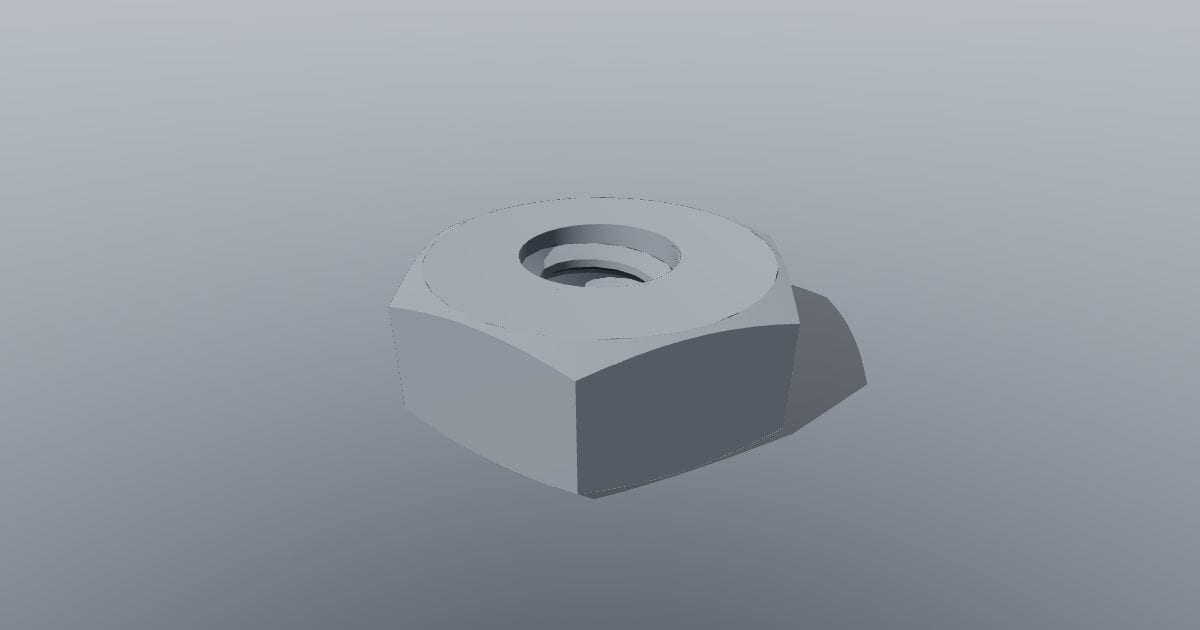

Hex nut #4-40 UNC
Hex nut #4-40 UNC, modeled from published dimensions. Overall 7.3 x 6.4 x 2.5 mm. Key dimensions: thread #4-40; thread diameter 2.8 mm; threads per inch 40; pitch 0.6 mm; inch to 25.4 mm; across flats 6.4 mm; height 2.5 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
303 KBDetails & download
step3/8-16Rotate in 3D

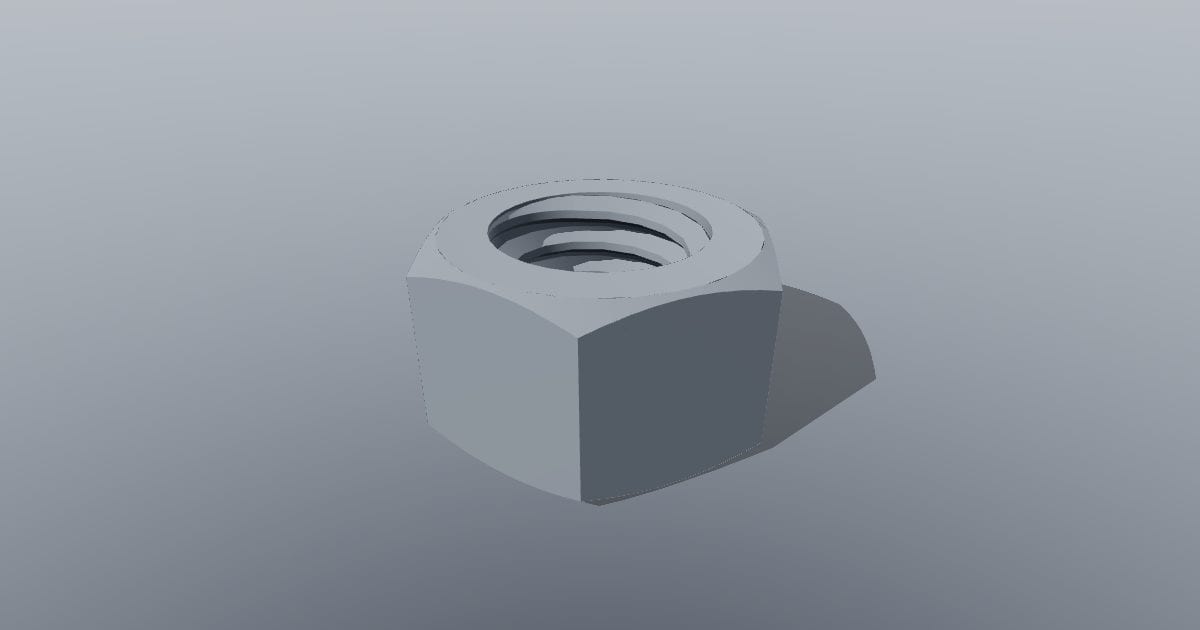

Hex nut 3/8-16 UNC
Hex nut 3/8-16 UNC, modeled from published dimensions. Overall 16.5 x 14.3 x 8.6 mm. Key dimensions: thread 3/8-16; thread diameter 9.5 mm; threads per inch 16; pitch 1.6 mm; inch to 25.4 mm; across flats 14.3 mm; height 8.6 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
415 KBDetails & download
step1/4-20Rotate in 3D
Hex nut 1/4-20 UNC
Hex nut 1/4-20 UNC, modeled from published dimensions. Overall 12.8 x 11.1 x 5.7 mm. Key dimensions: thread 1/4-20; thread diameter 6.4 mm; threads per inch 20; pitch 1.3 mm; inch to 25.4 mm; across flats 11.1 mm; height 5.7 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
374 KBDetails & download
step1/2-13Rotate in 3D

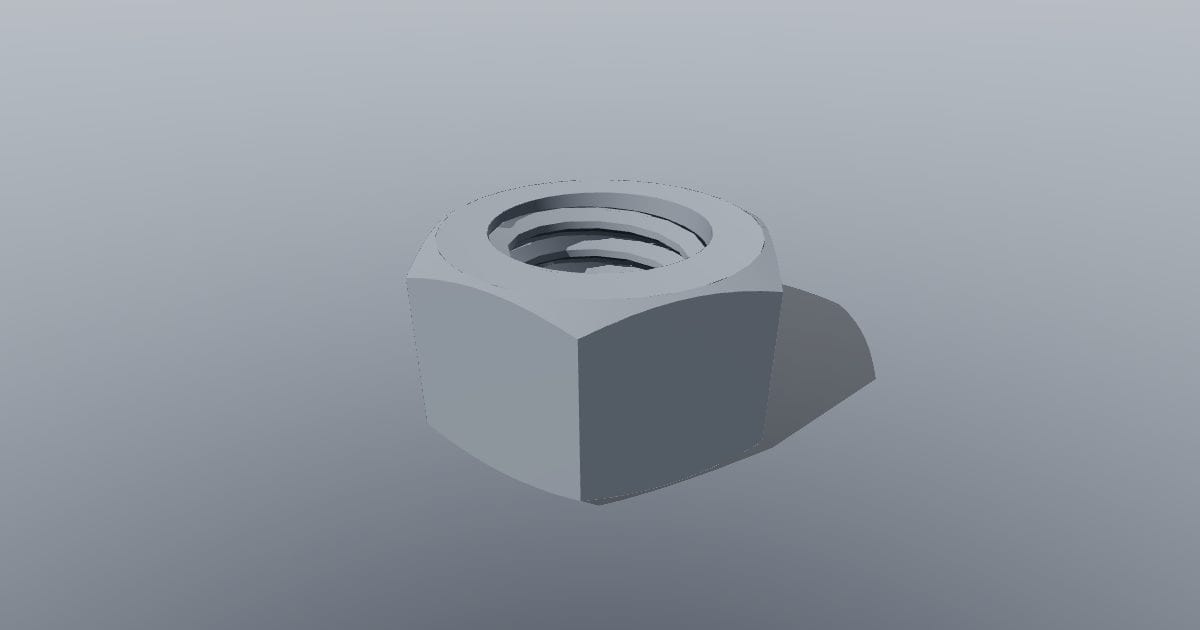

Hex nut 1/2-13 UNC
Hex nut 1/2-13 UNC, modeled from published dimensions. Overall 22 x 19.1 x 11.3 mm. Key dimensions: thread 1/2-13; thread diameter 12.7 mm; threads per inch 13; pitch 2 mm; inch to 25.4 mm; across flats 19 mm; height 11.3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
426 KBDetails & download
step#12-24Rotate in 3D
Hex nut #12-24 UNC
Hex nut #12-24 UNC, modeled from published dimensions. Overall 12.8 x 11.1 x 4.1 mm. Key dimensions: thread #12-24; thread diameter 5.5 mm; threads per inch 24; pitch 1.1 mm; inch to 25.4 mm; across flats 11.1 mm; height 4.1 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
327 KBDetails & download
step#10-24Rotate in 3D

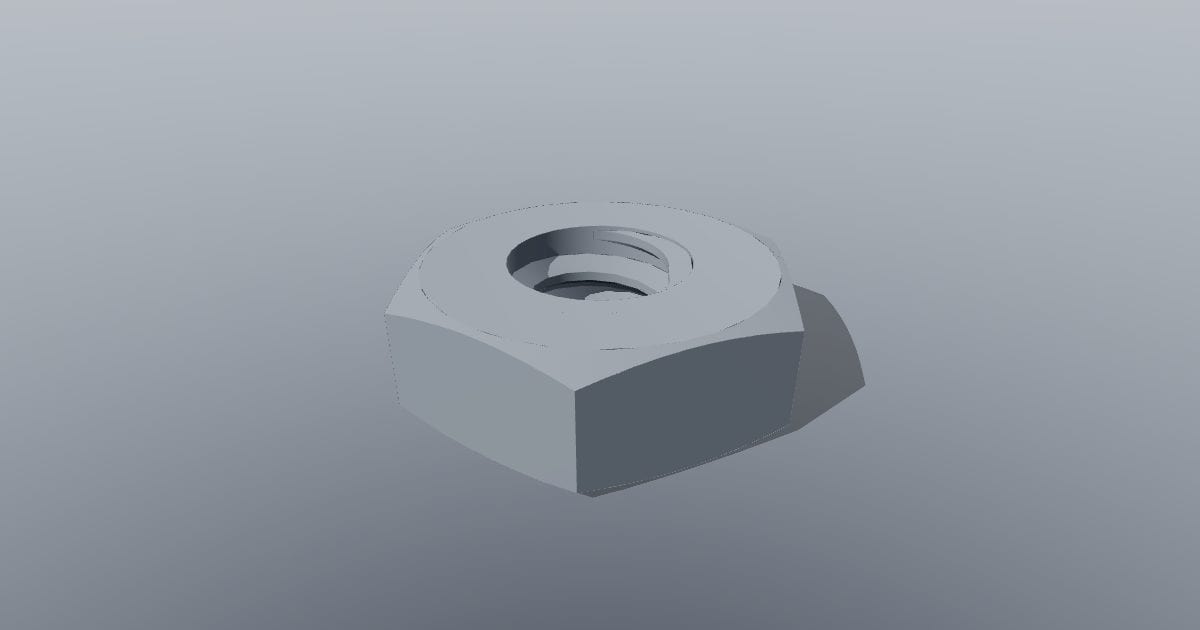

Hex nut #10-24 UNC
Hex nut #10-24 UNC, modeled from published dimensions. Overall 11 x 9.5 x 3.3 mm. Key dimensions: thread #10-24; thread diameter 4.8 mm; threads per inch 24; pitch 1.1 mm; inch to 25.4 mm; across flats 9.5 mm; height 3.3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
309 KBDetails & download
step#8-32Rotate in 3D

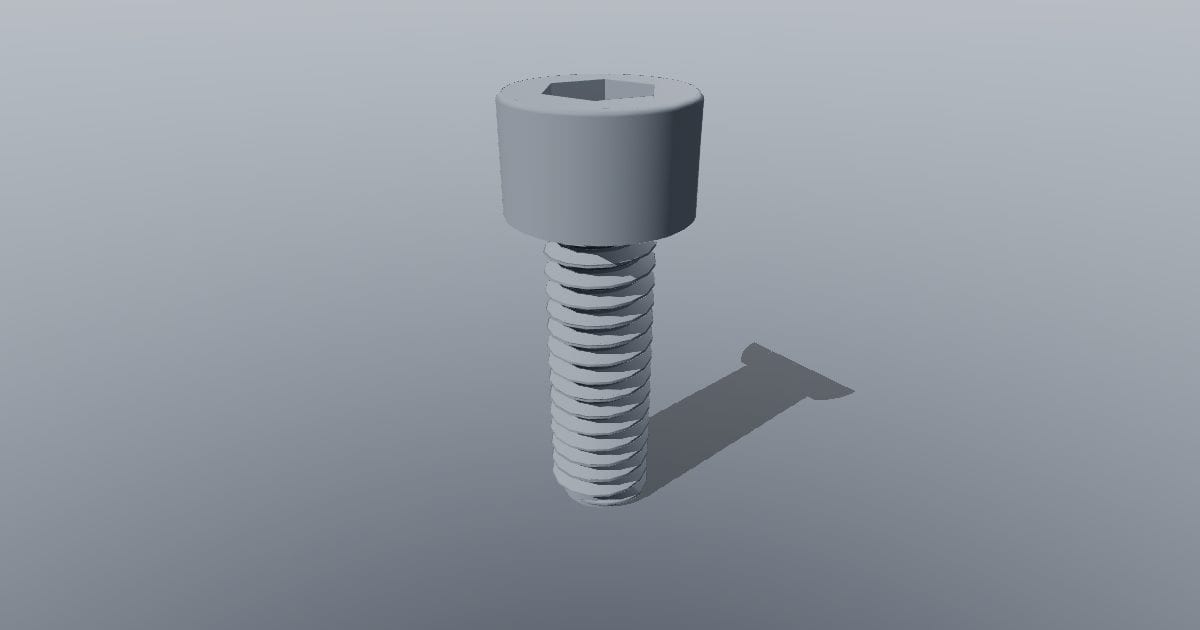

Socket cap screw #8-32 UNC
Socket cap screw #8-32 UNC, modeled from published dimensions. Overall 6.9 x 6.9 x 16.9 mm. Key dimensions: thread #8-32; thread diameter 4.2 mm; threads per inch 32; pitch 0.8 mm; inch to 25.4 mm; length under head in 0.5; length under head 12.7 mm; head diameter 6.9 mm; head height 4.2 mm; socket across flats 3.6 mm; socket depth 2 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
641 KBDetails & download
