Free Fastener and Hardware CAD Models (STEP)

Metric and UNC screws, bolts, nuts, washers, threaded inserts, retaining rings, pins and bearings, as exact STEP solids at nominal size. Every file here is public domain: open it in your browser, then download it and use it for anything.

3342 3D parts · STEP, STL, SketchUp, 3MF, OBJ, glTF, IFC, Rhino and more · public domain

All 3342 Furniture & interiors 862 People & figures 311 Mechanical 305 Architecture & BIM 284 Electronics & PCB 248 Art & decor 220 Lighting 207 Fasteners & hardware 188 Tools & jigs 158 Vehicles 148 Nature & terrain 105 Floor plans & site plans 6 Other 359

All fasteners & hardware Screws & bolts 58 Nuts 33 Bearings 18 Retaining rings & pins 18 Washers 16 Extrusion & framing 15 Hinges, slides & casters 15 Shaft collars 6 Threaded inserts 5 Springs 4

SizeAny M2 3 M2.5 2 M3 6 M4 7 M5 10 M6 13 M8 13 M10 10 M12 11 M14 2 M16 3 M18 2 M20 3 #4-40 3 #6-32 3 #8-32 3 #10-24 3 #12-24 3 1/4-20 3 5/16-18 3 3/8-16 3 7/16-14 3 1/2-13 3 608 1 625 1 6000 1 6001 1 6002 1 6003 1 6004 1 6005 1 6200 1 6201 1 6202 1 6203 1 6204 1 6205 1 UCP204 1 UCF204 1 UCP205 1 UCF205 1 20 x 20 2 20 x 40 2 40 x 40 2 41 x 41 3 50 x 47 1

188 3D parts in Fasteners & hardware · Clear all

step7/16-14Rotate in 3D

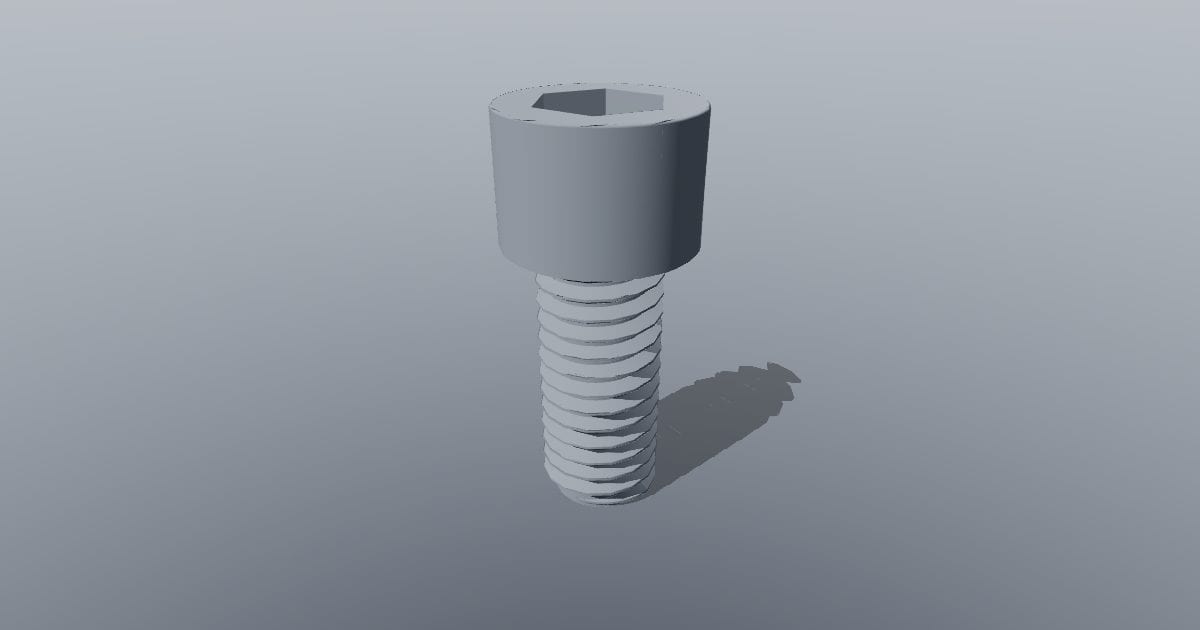

Socket cap screw 7/16-14 UNC
Socket cap screw 7/16-14 UNC, modeled from published dimensions. Overall 16.7 x 16.7 x 36.5 mm. Key dimensions: thread 7/16-14; thread diameter 11.1 mm; threads per inch 14; pitch 1.8 mm; inch to 25.4 mm; length under head in 1; length under head 25.4 mm; head diameter 16.7 mm; head height 11.1 mm; socket across flats 9.5 mm; socket depth 5.4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
653 KBDetails & download
step#6-32Rotate in 3D

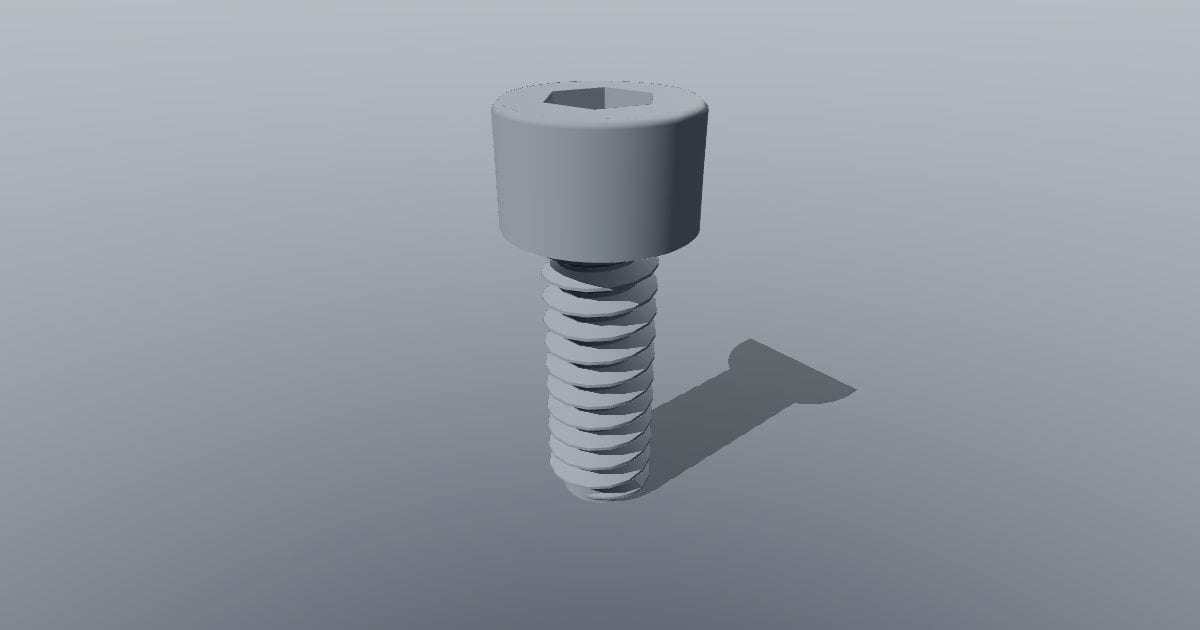

Socket cap screw #6-32 UNC
Socket cap screw #6-32 UNC, modeled from published dimensions. Overall 5.7 x 5.7 x 13 mm. Key dimensions: thread #6-32; thread diameter 3.5 mm; threads per inch 32; pitch 0.8 mm; inch to 25.4 mm; length under head in 0.4; length under head 9.5 mm; head diameter 5.7 mm; head height 3.5 mm; socket across flats 2.8 mm; socket depth 1.6 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
549 KBDetails & download
step5/16-18Rotate in 3D

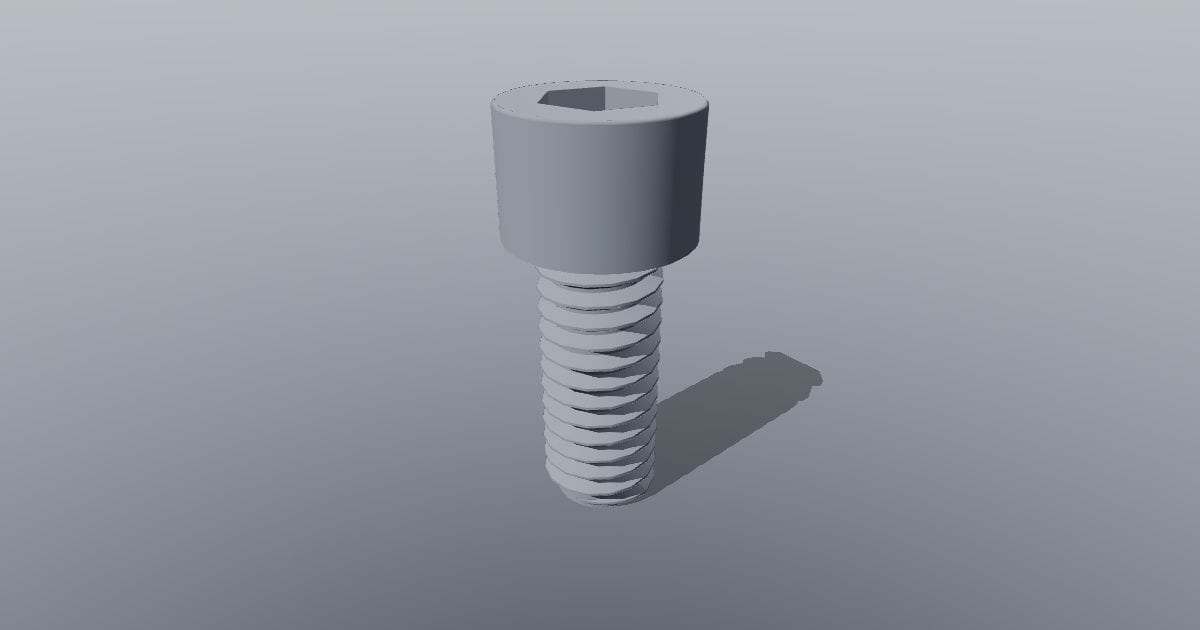

Socket cap screw 5/16-18 UNC
Socket cap screw 5/16-18 UNC, modeled from published dimensions. Overall 11.9 x 11.9 x 27 mm. Key dimensions: thread 5/16-18; thread diameter 7.9 mm; threads per inch 18; pitch 1.4 mm; inch to 25.4 mm; length under head in 0.8; length under head 19 mm; head diameter 11.9 mm; head height 7.9 mm; socket across flats 6.4 mm; socket depth 3.8 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
654 KBDetails & download
step#4-40Rotate in 3D

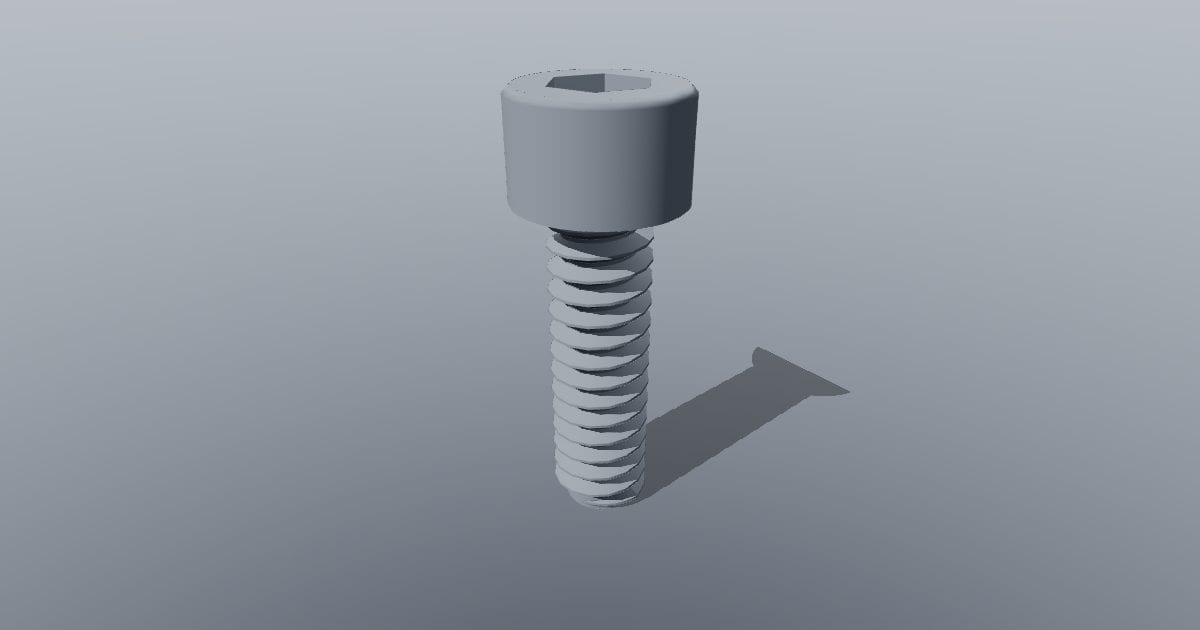

Socket cap screw #4-40 UNC
Socket cap screw #4-40 UNC, modeled from published dimensions. Overall 4.6 x 4.6 x 12.4 mm. Key dimensions: thread #4-40; thread diameter 2.8 mm; threads per inch 40; pitch 0.6 mm; inch to 25.4 mm; length under head in 0.4; length under head 9.5 mm; head diameter 4.6 mm; head height 2.8 mm; socket across flats 2.4 mm; socket depth 1.3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
582 KBDetails & download
step3/8-16Rotate in 3D

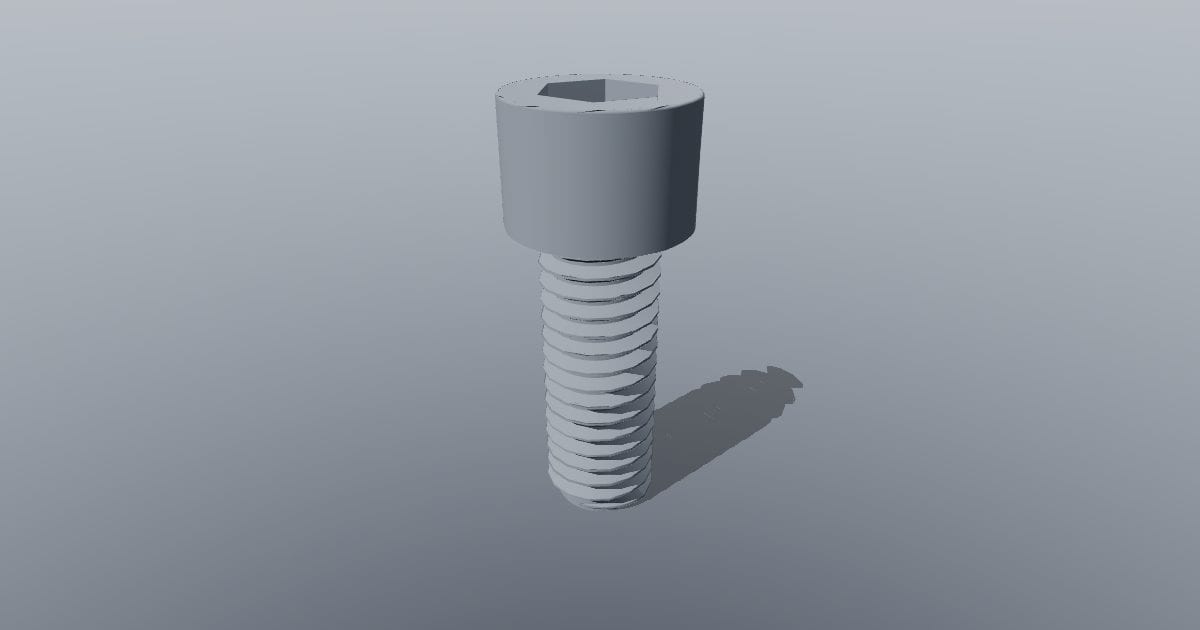

Socket cap screw 3/8-16 UNC
Socket cap screw 3/8-16 UNC, modeled from published dimensions. Overall 14.3 x 14.3 x 34.9 mm. Key dimensions: thread 3/8-16; thread diameter 9.5 mm; threads per inch 16; pitch 1.6 mm; inch to 25.4 mm; length under head in 1; length under head 25.4 mm; head diameter 14.3 mm; head height 9.5 mm; socket across flats 7.9 mm; socket depth 4.6 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
722 KBDetails & download
step1/4-20Rotate in 3D

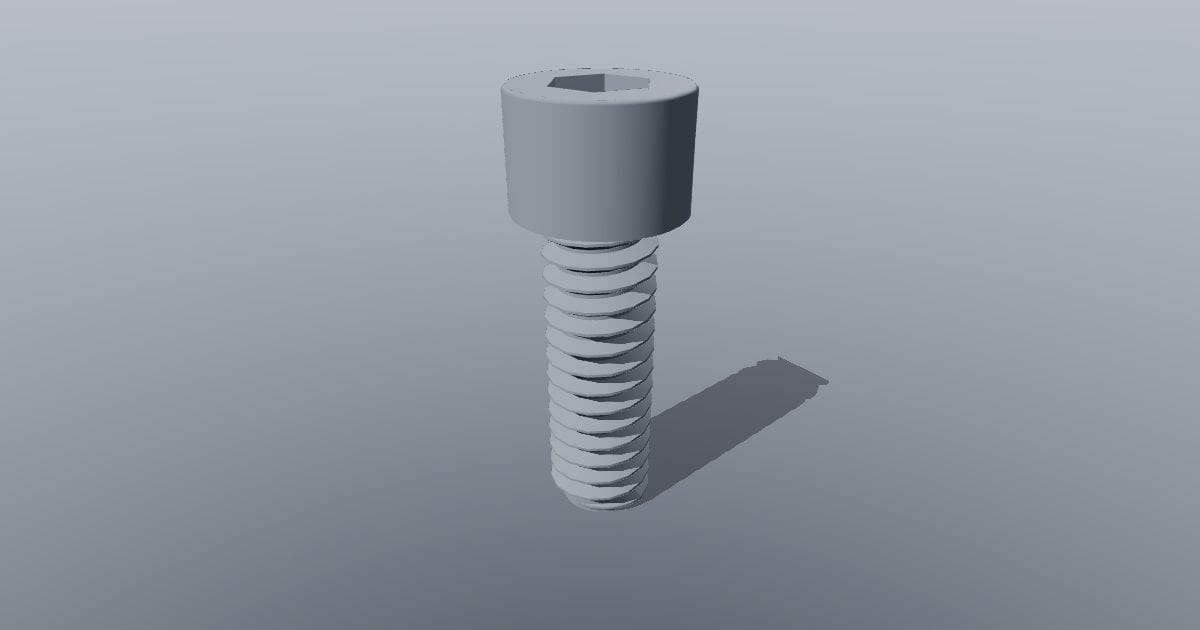

Socket cap screw 1/4-20 UNC
Socket cap screw 1/4-20 UNC, modeled from published dimensions. Overall 9.5 x 9.5 x 25.4 mm. Key dimensions: thread 1/4-20; thread diameter 6.4 mm; threads per inch 20; pitch 1.3 mm; inch to 25.4 mm; length under head in 0.8; length under head 19 mm; head diameter 9.5 mm; head height 6.4 mm; socket across flats 4.8 mm; socket depth 3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
661 KBDetails & download
step1/2-13Rotate in 3D

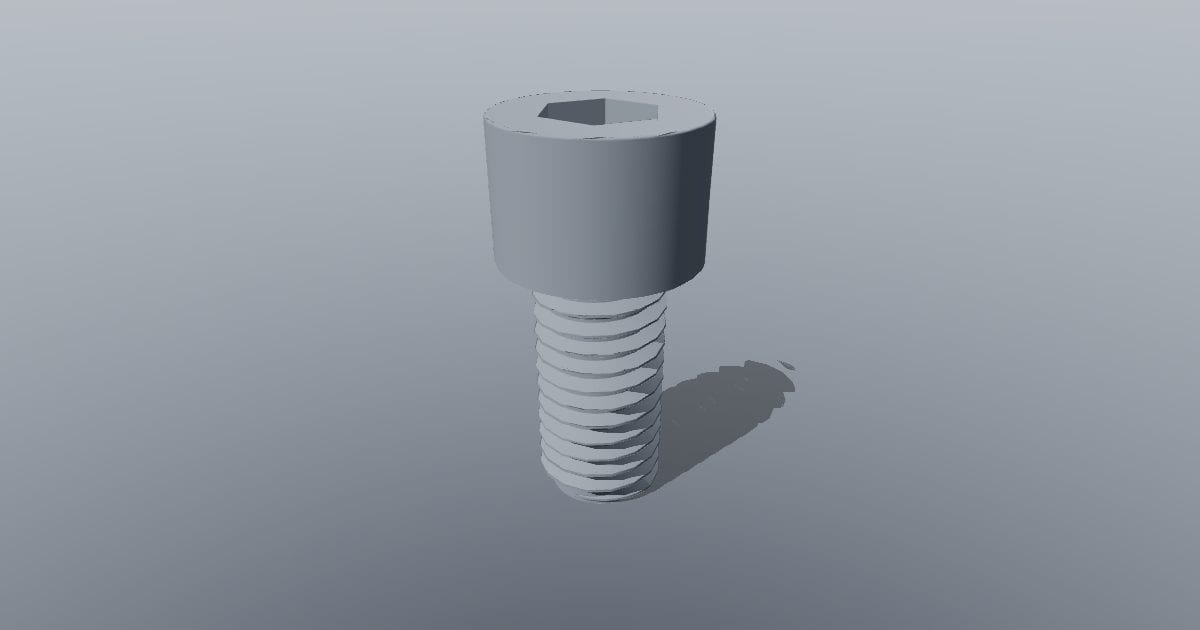

Socket cap screw 1/2-13 UNC
Socket cap screw 1/2-13 UNC, modeled from published dimensions. Overall 19.1 x 19.1 x 38.1 mm. Key dimensions: thread 1/2-13; thread diameter 12.7 mm; threads per inch 13; pitch 2 mm; inch to 25.4 mm; length under head in 1; length under head 25.4 mm; head diameter 19 mm; head height 12.7 mm; socket across flats 9.5 mm; socket depth 6.2 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
642 KBDetails & download
step#12-24Rotate in 3D

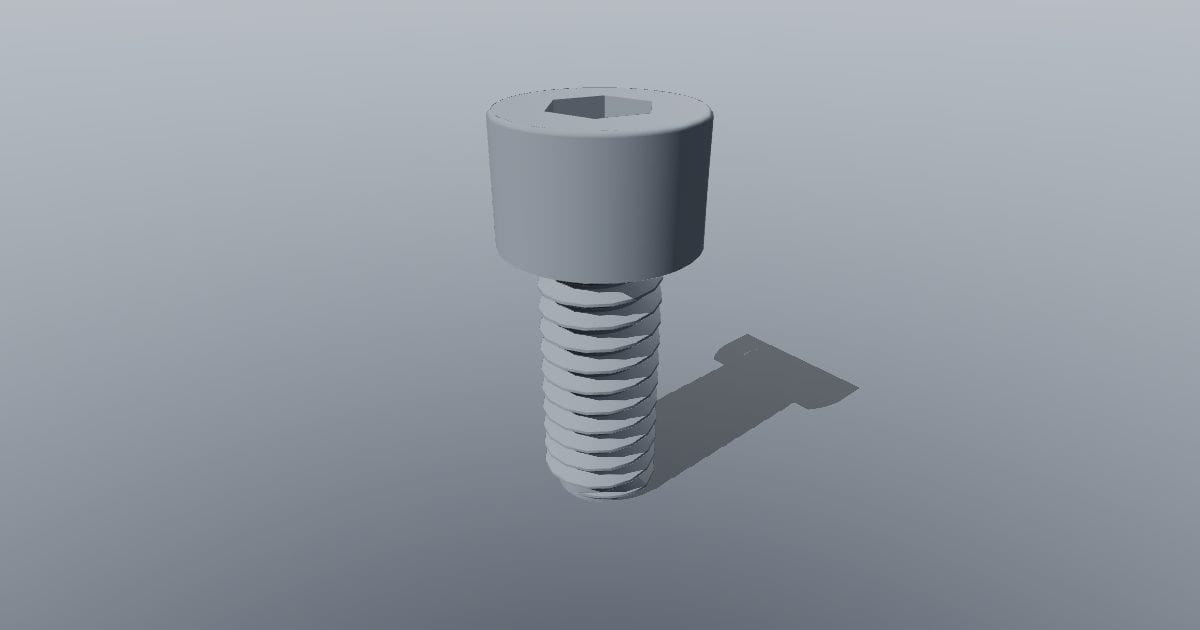

Socket cap screw #12-24 UNC
Socket cap screw #12-24 UNC, modeled from published dimensions. Overall 8.7 x 8.7 x 18.2 mm. Key dimensions: thread #12-24; thread diameter 5.5 mm; threads per inch 24; pitch 1.1 mm; inch to 25.4 mm; length under head in 0.5; length under head 12.7 mm; head diameter 8.7 mm; head height 5.5 mm; socket across flats 4 mm; socket depth 2.3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
580 KBDetails & download
step#10-24Rotate in 3D
Socket cap screw #10-24 UNC
Socket cap screw #10-24 UNC, modeled from published dimensions. Overall 7.9 x 7.9 x 17.5 mm. Key dimensions: thread #10-24; thread diameter 4.8 mm; threads per inch 24; pitch 1.1 mm; inch to 25.4 mm; length under head in 0.5; length under head 12.7 mm; head diameter 7.9 mm; head height 4.8 mm; socket across flats 4 mm; socket depth 2.3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
560 KBDetails & download
step#8-32Rotate in 3D

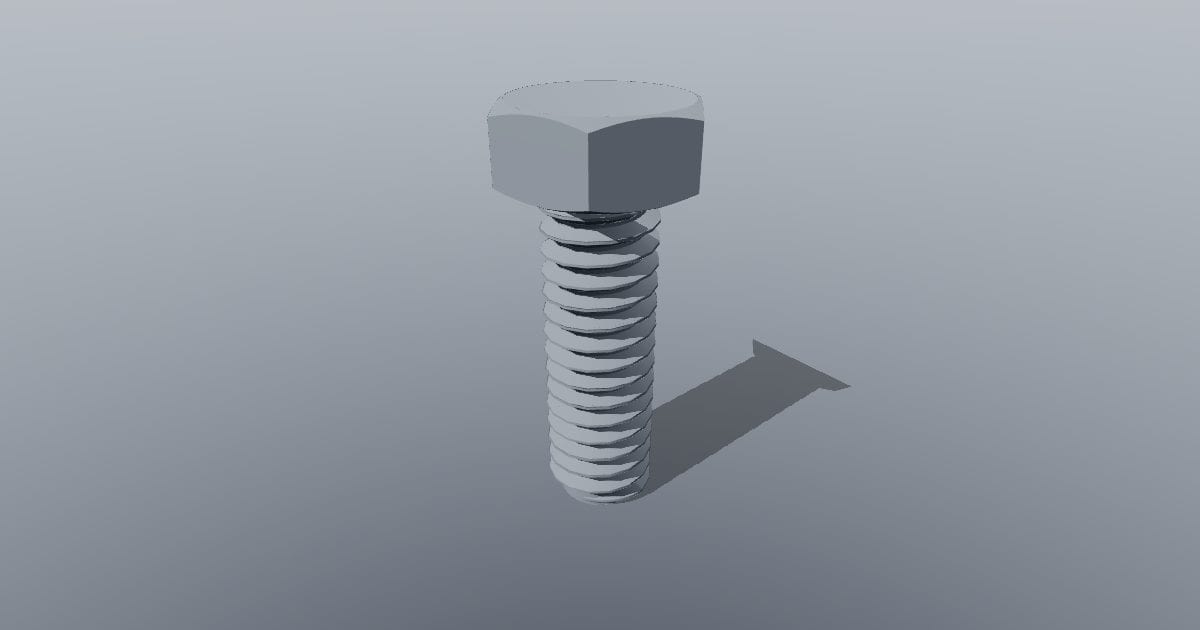

Hex bolt #8-32 UNC
Hex bolt #8-32 UNC, modeled from published dimensions. Overall 7.3 x 6.4 x 15.5 mm. Key dimensions: thread #8-32; thread diameter 4.2 mm; threads per inch 32; pitch 0.8 mm; inch to 25.4 mm; length under head in 0.5; length under head 12.7 mm; head across flats 6.4 mm; head height 2.8 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
652 KBDetails & download
step7/16-14Rotate in 3D

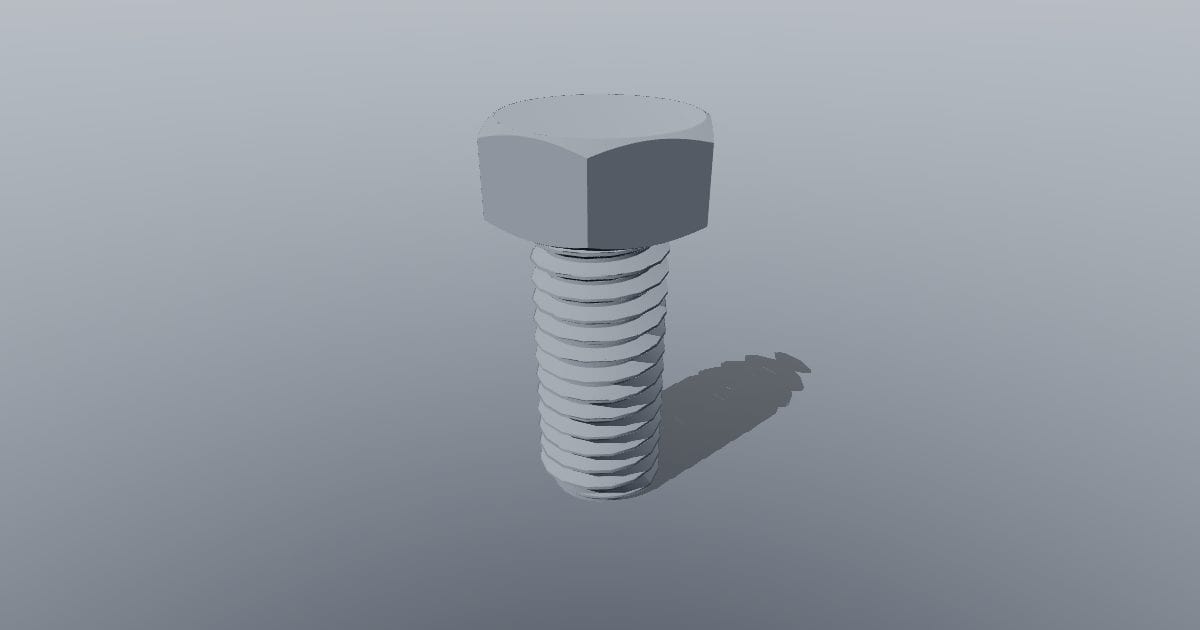

Hex bolt 7/16-14 UNC
Hex bolt 7/16-14 UNC, modeled from published dimensions. Overall 18.3 x 15.9 x 32.9 mm. Key dimensions: thread 7/16-14; thread diameter 11.1 mm; threads per inch 14; pitch 1.8 mm; inch to 25.4 mm; length under head in 1; length under head 25.4 mm; head across flats 15.9 mm; head height 7.5 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
664 KBDetails & download
step#6-32Rotate in 3D

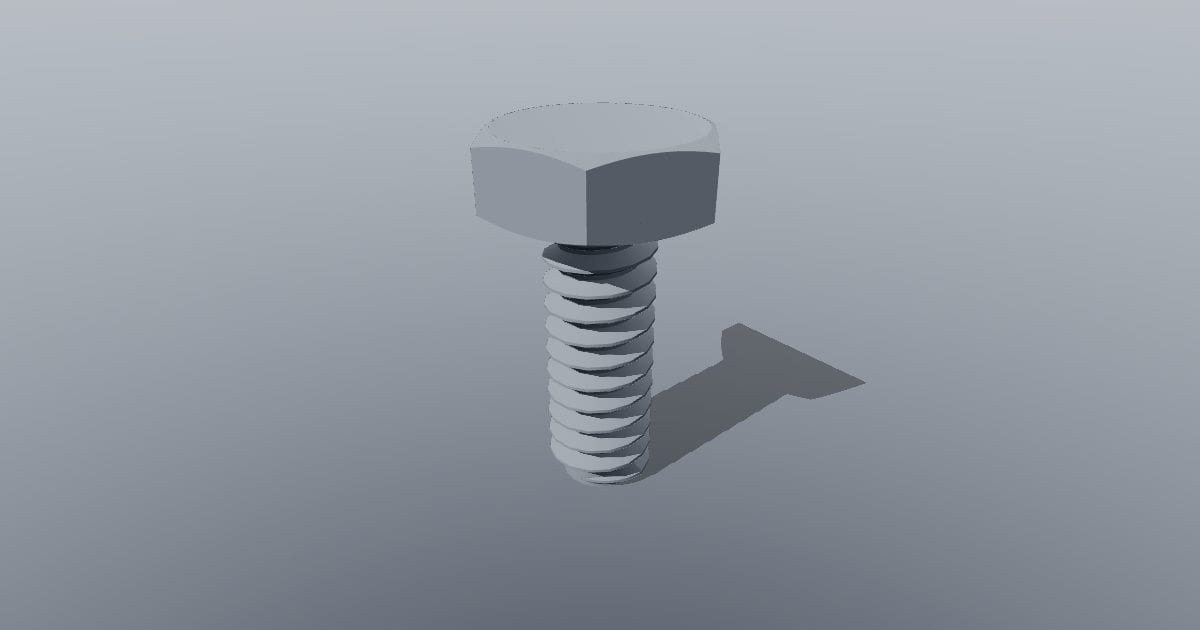

Hex bolt #6-32 UNC
Hex bolt #6-32 UNC, modeled from published dimensions. Overall 7.3 x 6.4 x 11.9 mm. Key dimensions: thread #6-32; thread diameter 3.5 mm; threads per inch 32; pitch 0.8 mm; inch to 25.4 mm; length under head in 0.4; length under head 9.5 mm; head across flats 6.4 mm; head height 2.4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
561 KBDetails & download
step5/16-18Rotate in 3D
Hex bolt 5/16-18 UNC
Hex bolt 5/16-18 UNC, modeled from published dimensions. Overall 14.7 x 12.7 x 24.6 mm. Key dimensions: thread 5/16-18; thread diameter 7.9 mm; threads per inch 18; pitch 1.4 mm; inch to 25.4 mm; length under head in 0.8; length under head 19 mm; head across flats 12.7 mm; head height 5.6 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
666 KBDetails & download
step#4-40Rotate in 3D

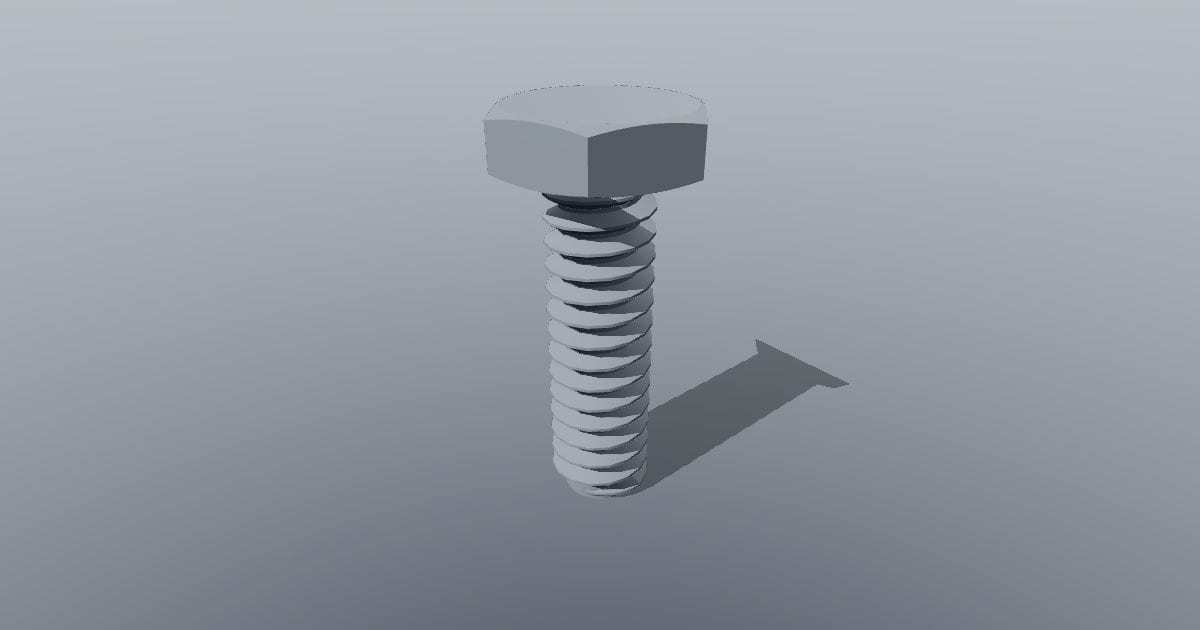

Hex bolt #4-40 UNC
Hex bolt #4-40 UNC, modeled from published dimensions. Overall 5.5 x 4.8 x 11 mm. Key dimensions: thread #4-40; thread diameter 2.8 mm; threads per inch 40; pitch 0.6 mm; inch to 25.4 mm; length under head in 0.4; length under head 9.5 mm; head across flats 4.8 mm; head height 1.5 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
594 KBDetails & download
step3/8-16Rotate in 3D

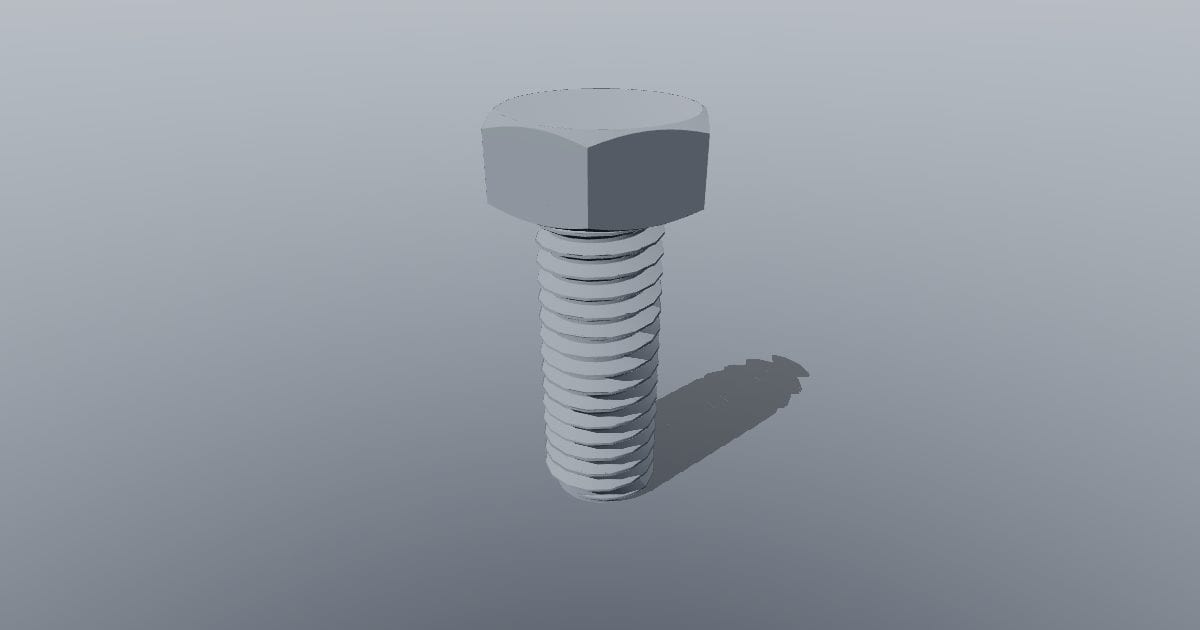

Hex bolt 3/8-16 UNC
Hex bolt 3/8-16 UNC, modeled from published dimensions. Overall 16.5 x 14.3 x 31.8 mm. Key dimensions: thread 3/8-16; thread diameter 9.5 mm; threads per inch 16; pitch 1.6 mm; inch to 25.4 mm; length under head in 1; length under head 25.4 mm; head across flats 14.3 mm; head height 6.4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
734 KBDetails & download
step1/4-20Rotate in 3D
Hex bolt 1/4-20 UNC
Hex bolt 1/4-20 UNC, modeled from published dimensions. Overall 12.8 x 11.1 x 23.4 mm. Key dimensions: thread 1/4-20; thread diameter 6.4 mm; threads per inch 20; pitch 1.3 mm; inch to 25.4 mm; length under head in 0.8; length under head 19 mm; head across flats 11.1 mm; head height 4.4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
673 KBDetails & download
step1/2-13Rotate in 3D
Hex bolt 1/2-13 UNC
Hex bolt 1/2-13 UNC, modeled from published dimensions. Overall 22 x 19.1 x 34.1 mm. Key dimensions: thread 1/2-13; thread diameter 12.7 mm; threads per inch 13; pitch 2 mm; inch to 25.4 mm; length under head in 1; length under head 25.4 mm; head across flats 19 mm; head height 8.7 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
653 KBDetails & download
step#12-24Rotate in 3D
Hex bolt #12-24 UNC
Hex bolt #12-24 UNC, modeled from published dimensions. Overall 9.2 x 7.9 x 16.6 mm. Key dimensions: thread #12-24; thread diameter 5.5 mm; threads per inch 24; pitch 1.1 mm; inch to 25.4 mm; length under head in 0.5; length under head 12.7 mm; head across flats 7.9 mm; head height 3.9 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
591 KBDetails & download
step#10-24Rotate in 3D

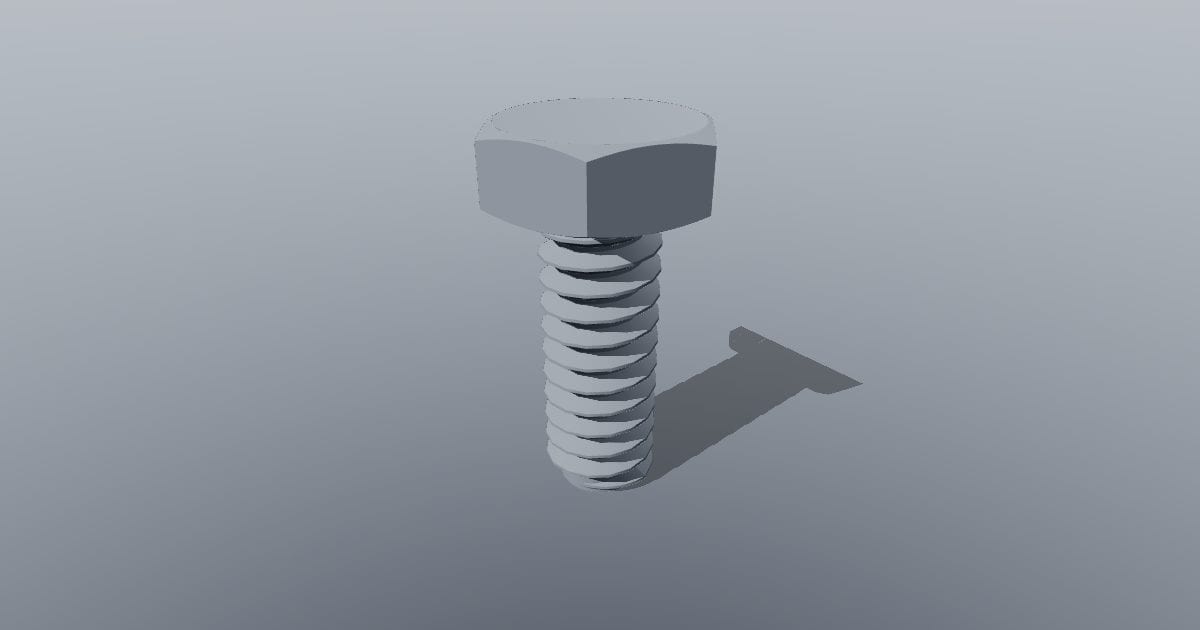

Hex bolt #10-24 UNC
Hex bolt #10-24 UNC, modeled from published dimensions. Overall 9.2 x 7.9 x 15.7 mm. Key dimensions: thread #10-24; thread diameter 4.8 mm; threads per inch 24; pitch 1.1 mm; inch to 25.4 mm; length under head in 0.5; length under head 12.7 mm; head across flats 7.9 mm; head height 3 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. Inch specifications are converted using exactly 25.4 mm per inch. Numbered machine-screw nuts use ASME B18.6.3 dimensions; larger full hex nuts use the cited ASME B18.2.2 supplier table. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
572 KBDetails & download
stepM8Rotate in 3D
Nylon-insert lock nut M8
Nylon-insert lock nut M8, modeled from published dimensions. Overall 15 x 13 x 8 mm. Key dimensions: thread diameter 8 mm; pitch 1.3 mm; across flats 13 mm; total height 8 mm; metal hex height 5.5 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. DIN 985 overall and spanner dimensions. Nylon insert and retaining collar are representative; undeformed nylon bore is shown. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
403 KBDetails & download
stepM6Rotate in 3D
Nylon-insert lock nut M6
Nylon-insert lock nut M6, modeled from published dimensions. Overall 11.5 x 10 x 6 mm. Key dimensions: thread diameter 6 mm; pitch 1 mm; across flats 10 mm; total height 6 mm; metal hex height 4 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. DIN 985 overall and spanner dimensions. Nylon insert and retaining collar are representative; undeformed nylon bore is shown. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
378 KBDetails & download
stepM5Rotate in 3D
Nylon-insert lock nut M5
Nylon-insert lock nut M5, modeled from published dimensions. Overall 9.2 x 8 x 5 mm. Key dimensions: thread diameter 5 mm; pitch 0.8 mm; across flats 8 mm; total height 5 mm; metal hex height 3.2 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. DIN 985 overall and spanner dimensions. Nylon insert and retaining collar are representative; undeformed nylon bore is shown. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
368 KBDetails & download
stepM12Rotate in 3D
Nylon-insert lock nut M12
Nylon-insert lock nut M12, modeled from published dimensions. Overall 21.9 x 19 x 12 mm. Key dimensions: thread diameter 12 mm; pitch 1.8 mm; across flats 19 mm; total height 12 mm; metal hex height 8 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. DIN 985 overall and spanner dimensions. Nylon insert and retaining collar are representative; undeformed nylon bore is shown. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
410 KBDetails & download
stepM10Rotate in 3D

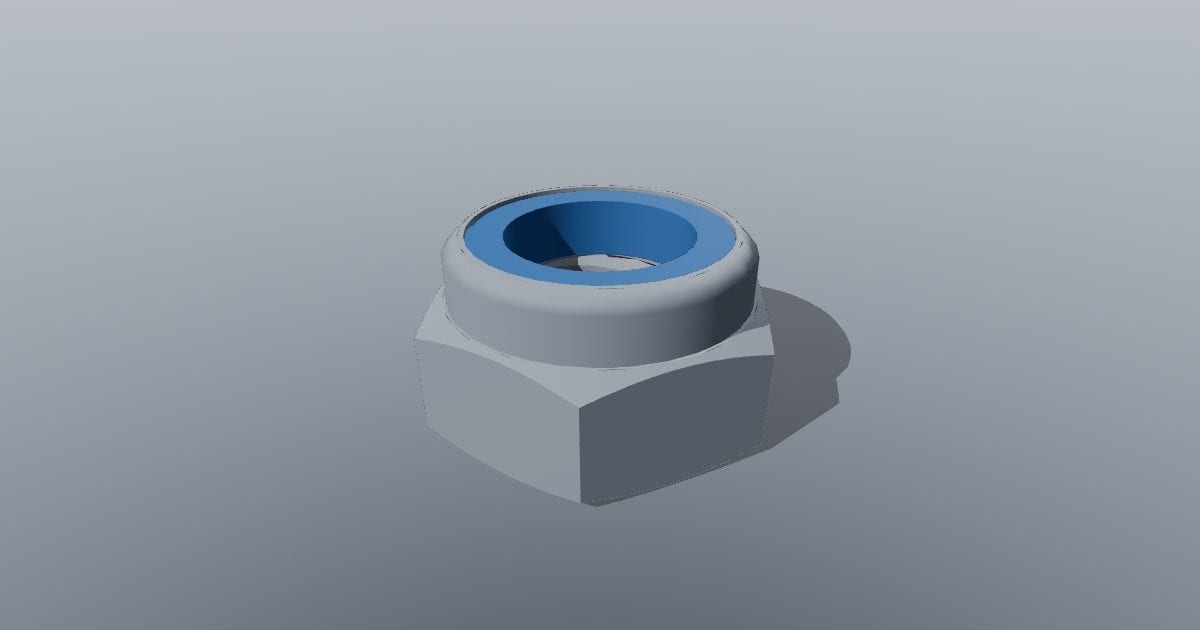

Nylon-insert lock nut M10
Nylon-insert lock nut M10, modeled from published dimensions. Overall 19.6 x 17 x 10 mm. Key dimensions: thread diameter 10 mm; pitch 1.5 mm; across flats 17 mm; total height 10 mm; metal hex height 6.5 mm. Modeled right-hand nominal 60-degree threads. Tolerance allowances, root radii and manufacturing runouts are simplified; use the stated nominal dimensions for layout. DIN 985 overall and spanner dimensions. Nylon insert and retaining collar are representative; undeformed nylon bore is shown. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
404 KBDetails & download
