Open-joint timber cladding detail
2D drawing · DXF · 348 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

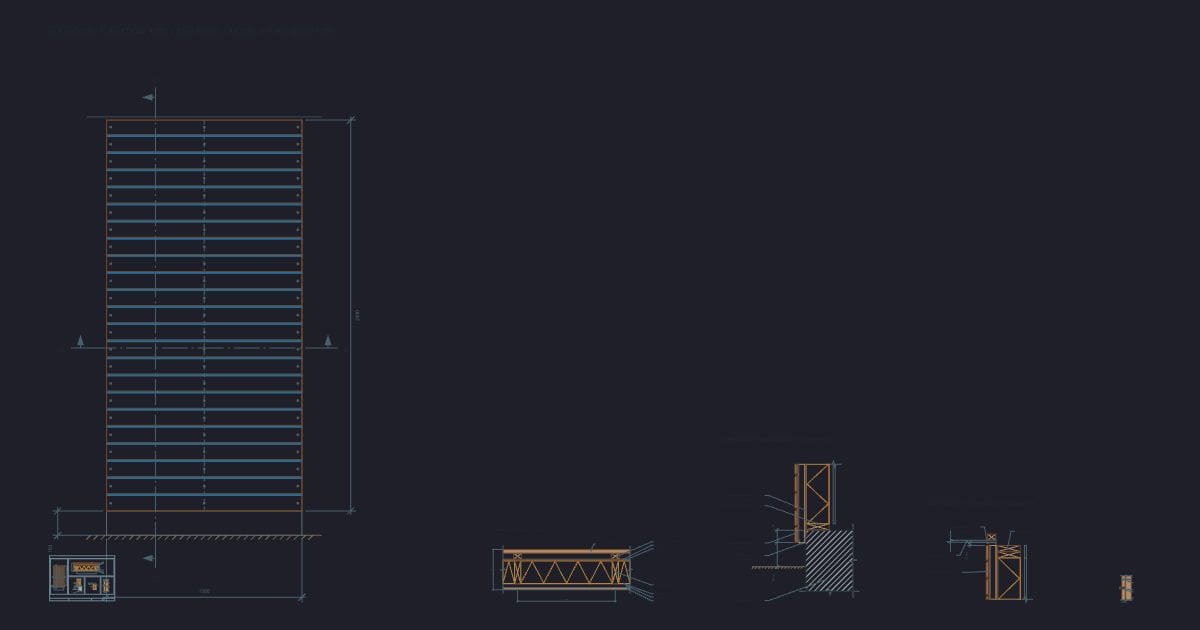

Open-joint timber cladding detail (wooden cladding): horizontal 22 x 95 mm boards with 10 mm open joints and weathered top edges on black 38 x 50 mm battens with EPDM strips at 600 mm, over a timber frame wall with 38 x 140 studs, 9 mm OSB and a black UV-stable breather membrane; 246.5 mm build-up. Elevation of a 1200 x 2400 mm panel, horizontal section, base and head sections with insect mesh, a 150 mm ground clearance and a 20 mm vent, and a joint detail with the fixings. A3 sheet; DXF 1:1 mm, elevation 1:20, sections 1:5 and 1:10, joint 1:2. Nominal size: 1200 x 246.5 x 2400 mm (panel width x build-up x height). DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
File: open-joint-timber-cladding-detail.dxf · added 2026-10-24 · available until 2031-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
