Free CAD Drawing Sheets with Title Blocks
Complete sheets laid out as issued, title block included. Every file here is public domain: open it in your browser, then download it and use it for anything.
1332 drawings · DWG, DXF, PDF, SVG, DWF and more · public domain
306 drawings with Title block · Clear all
dxfOpen the drawing

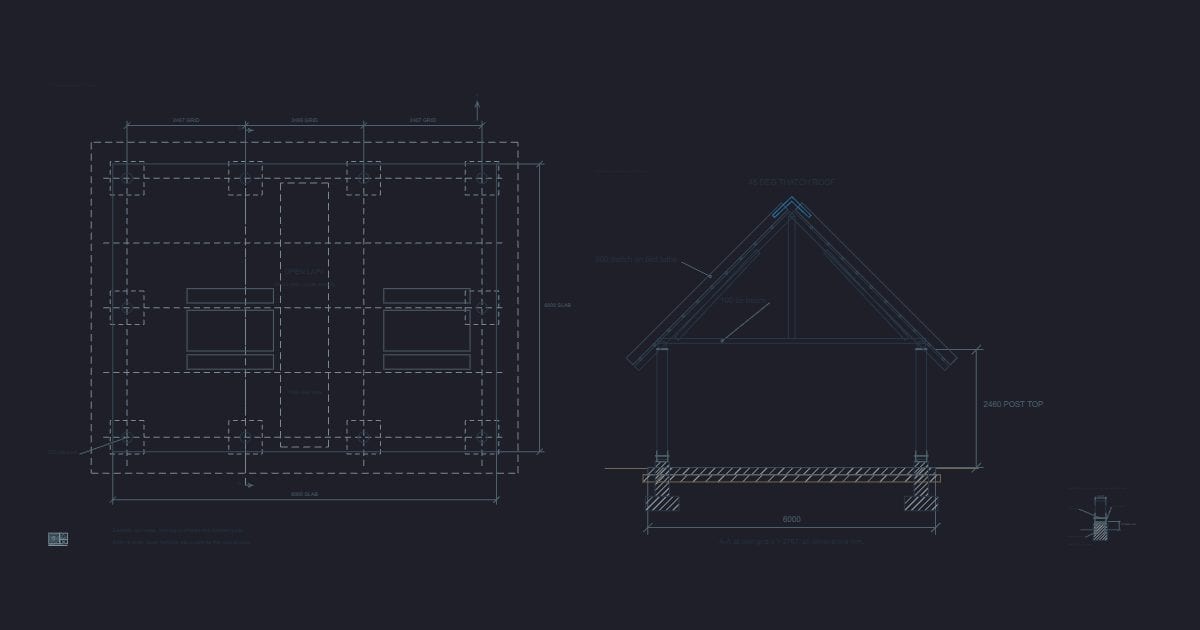

Thatched lapa gazebo plan and sectionOriginal 8000 x 6000 mm open thatched lapa plan with ten timber posts, tied gable frames, 200 mm thatch and a coordinated raised post-shoe detail. Overall 10.9 x 9.5 x 0 m. Nominal size: 8000 x 6000 mm slab; nominal 5650 mm ridge. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
375 KBDetails & downloaddxfOpen the drawing

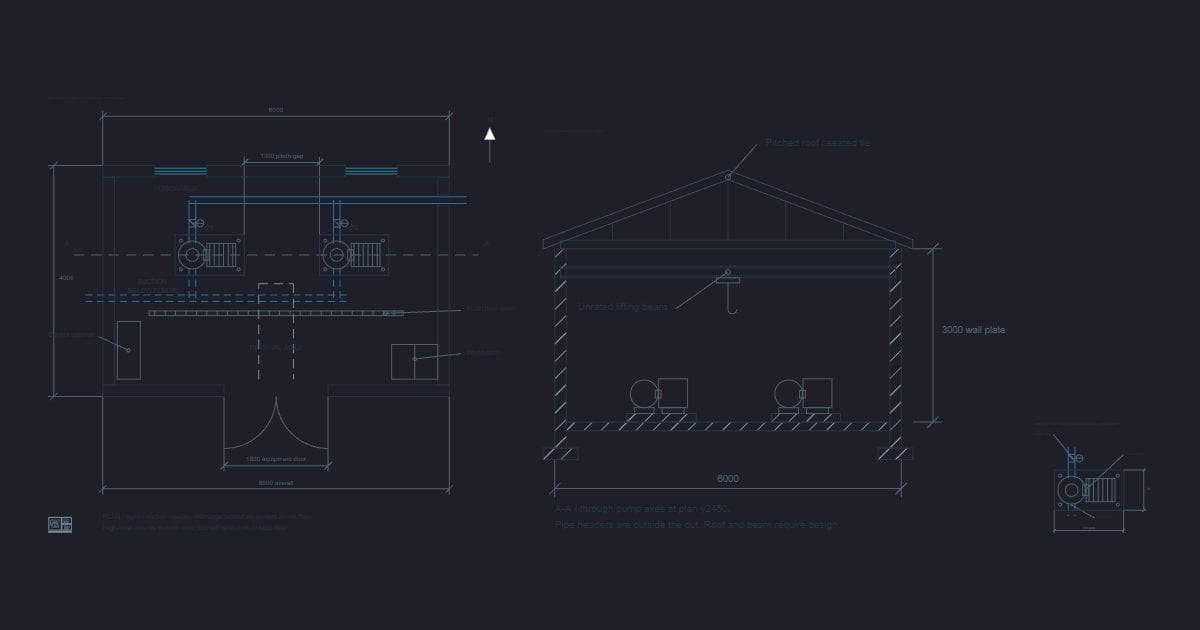

Pump house plan and sectionOriginal pump house floor plan and section, 6000 x4000 mm externally, with two1200 x700 mm pump plinths, a1300 mm central gap and1800 mm double equipment doors. A-A shows the pumps, seated roof structure and a nominal wall-bearing lifting beam. Enlarged pump plan identifies the coupling guard and water branches. Overall 8.1 x 7.4 x 0 m. Nominal size: 6000 x 4000 mm footprint; two1200 x700 mm pump plinths. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
171 KBDetails & downloaddxfOpen the drawing

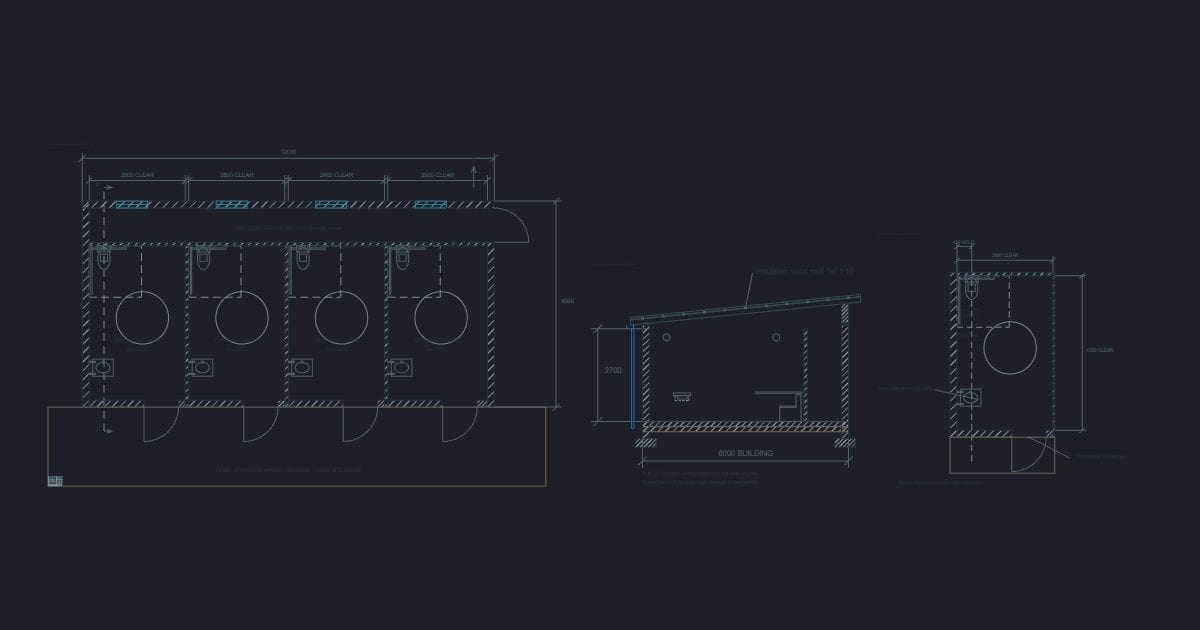

Public toilet block plan and sectionOriginal 12000 x 6000 mm public toilet block with four single-user WC/wash rooms, a locked rear service gallery, access-clearance detail and coordinated roof and fixture section. Overall 15.3 x 9.8 x 0 m. Nominal size: 12000 x 6000 mm; four single-user rooms. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
372 KBDetails & downloaddxfOpen the drawing
Hospital ward wing 1200 square metres plan and sectionOriginal dimensioned public-building plan and coordinated section: 60000 x 20000 mm / 1200 m2 / 16 beds. A3 sheet with a separate room and circulation key. Overall 65.2 x 24.1 x 0 m. Nominal size: 60000 x 20000 mm / 1200 m2 / 16 beds. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
300 KBDetails & downloaddxfOpen the drawing
Grocery store 600 square metres plan and sectionOriginal dimensioned public-building plan and coordinated section: 30000 x 20000 mm / 600 m2. A3 sheet with a separate room and circulation key. Overall 35.5 x 25.3 x 0 m. Nominal size: 30000 x 20000 mm / 600 m2. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
128 KBDetails & downloaddxfOpen the drawing

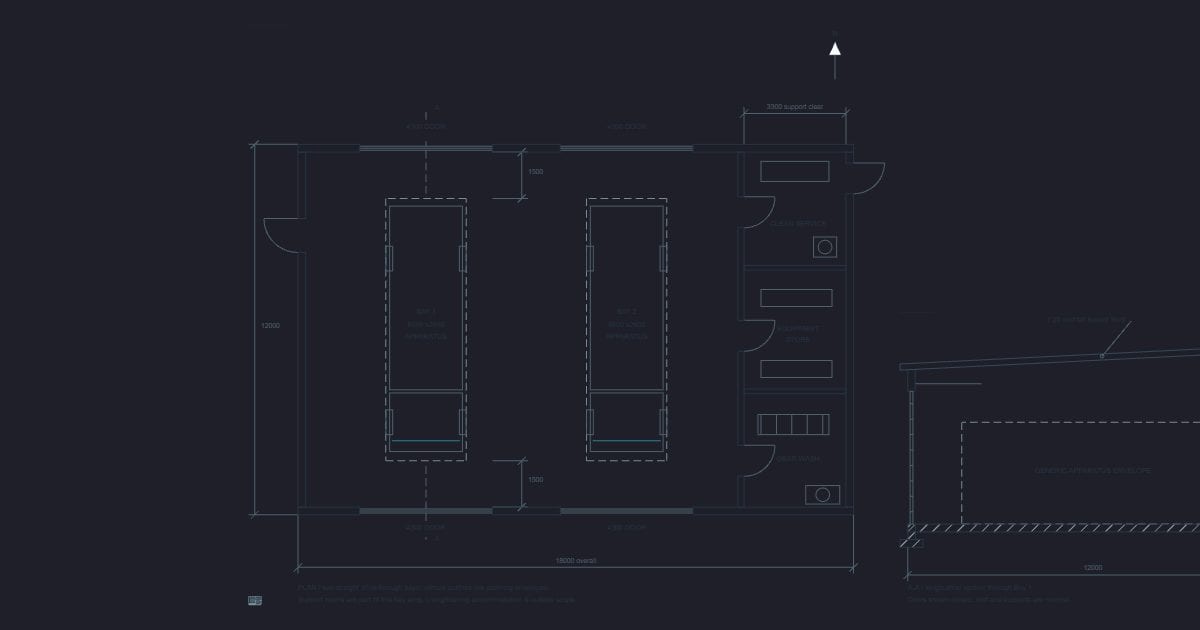

Fire station bay plan and sectionOriginal fire station bay floor plan and section for an18000 x12000 mm wing with two drive-through apparatus positions. Four4300 x4300 mm doors align with generic8500 x2600 mm vehicle footprints, with1500 mm clear at each end. Three support rooms occupy the east side; A-A shows the bay height and sloping roof. Overall 20.6 x 18.6 x 0 m. Nominal size: 18000 x12000 mm bay wing; two4300 x4300 mm vehicle doors each end. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
225 KBDetails & downloaddxfOpen the drawing
Campground with 20 pitches plan and sectionOriginal 100 x 80 m campground plan with exactly 20 numbered tent-and-car pitches, a one-way vehicle loop, separate pedestrian links and coordinated pitch section and detail. Overall 115.5 x 88.5 x 0 m. Nominal size: 100000 x 80000 mm site; exactly 20 pitches. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
177 KBDetails & downloaddxfOpen the drawing

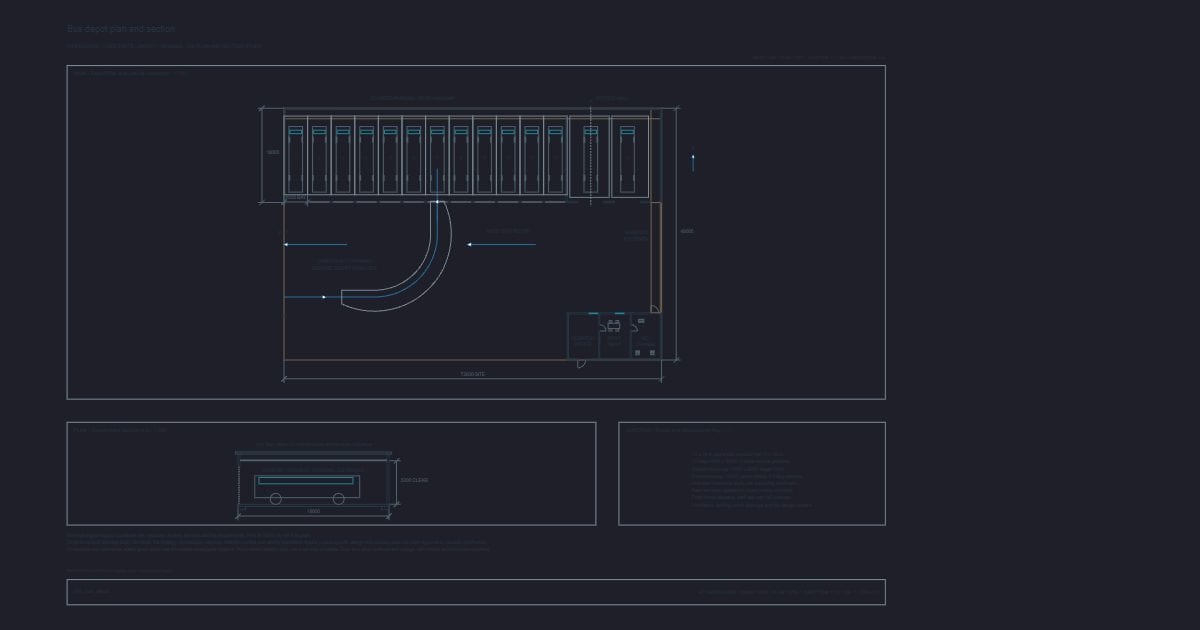

Bus depot plan and sectionOriginal dimensioned public-building plan and coordinated section: 72000 x 48000 mm depot / 12 parking + 2 service bays. A3 sheet with a separate room and circulation key. Overall 83.3 x 54.6 x 0 m. Nominal size: 72000 x 48000 mm depot / 12 parking + 2 service bays. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
260 KBDetails & downloaddxfOpen the drawing

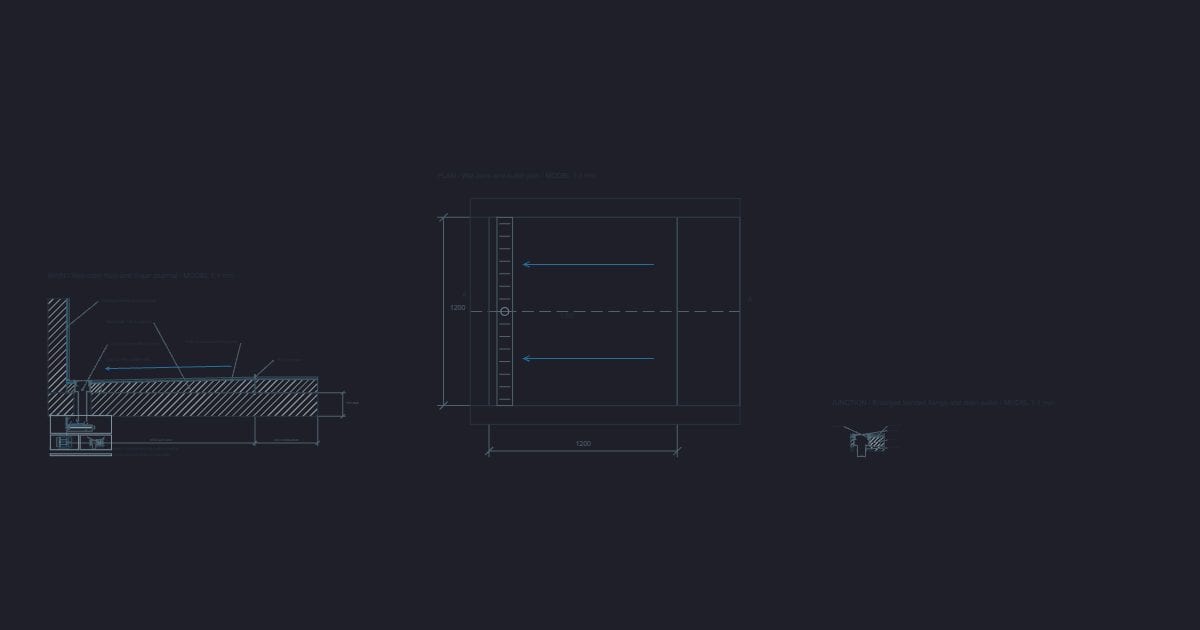

Tiled wet room floor waterproofing detailOriginal tiled wet room floor waterproofing detail with a 1200 x 1200 mm shower zone, a 100 mm linear channel and a 50 mm bore outlet. The floor falls 21 mm over 1050 mm to the drain and continues flush to a 400 mm bathroom strip. Continuous membrane bonds to the drain flanges and turns into the channel. Overall 1983 x 1011 x 0 mm. Nominal size: 1200 x 1200 mm wet zone; 100 mm channel; 50 mm bore outlet. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
140 KBDetails & downloaddxfOpen the drawing

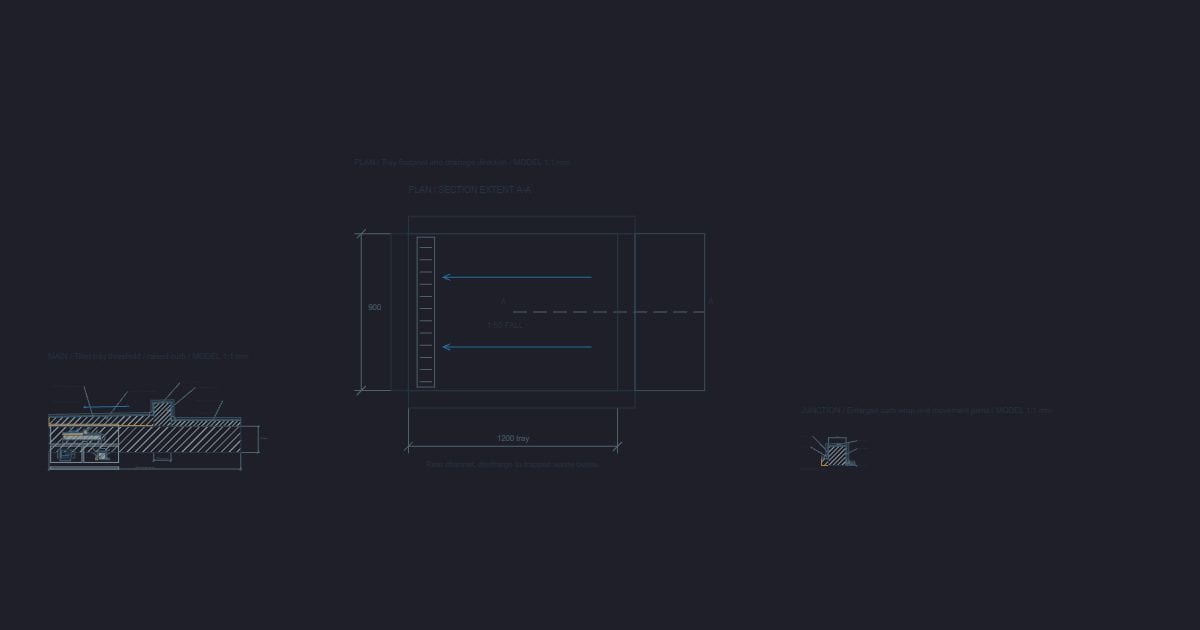

Shower tray threshold waterproofing detailOriginal shower tray threshold waterproofing detail for a 1200 x 900 mm tiled tray with a 100 mm masonry curb core. A continuous 2 mm nominal membrane wraps the inward-falling curb and joins the bathroom floor membrane; 10 mm tile and 4 mm adhesive are shown at fixed scales. Overall 1258 x 510 x 0 mm. Nominal size: 1200 x 900 mm tiled tray; 100 mm curb core; 1:50 falls. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
112 KBDetails & downloaddxfOpen the drawing

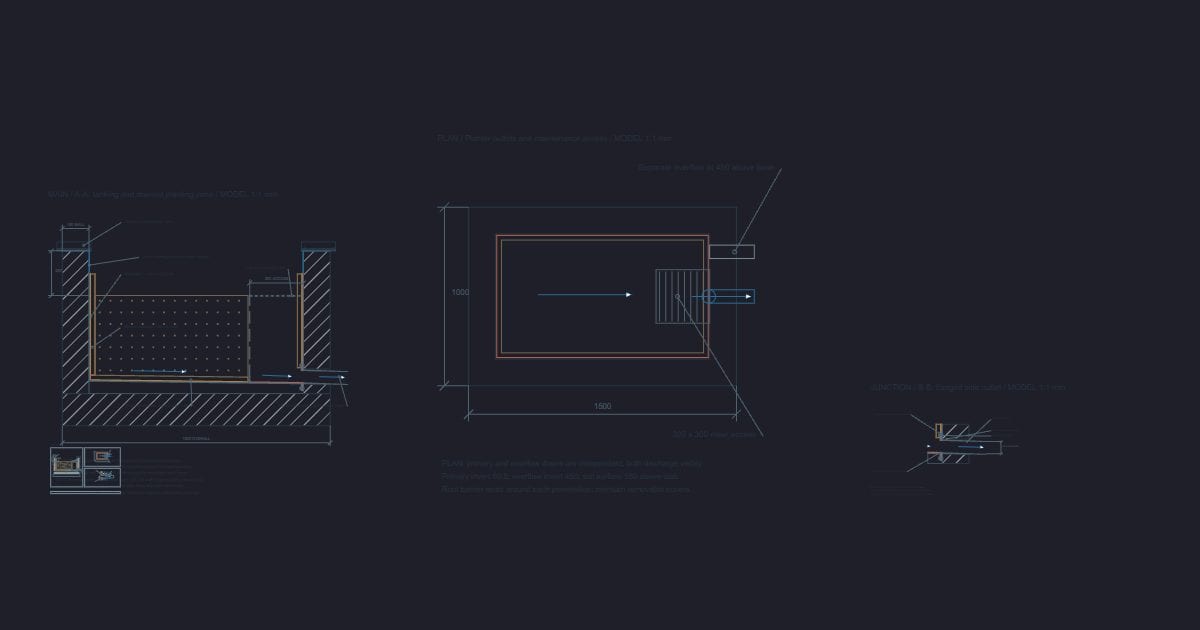

Planter waterproofing detailOriginal dimensioned wet-area waterproofing study: 1500 x 1000 x 800 mm planter / 150 mm walls. Section, drainage plan and enlarged sealed junction. Overall 1680 x 1540 x 0 mm. Nominal size: 1500 x 1000 x 800 mm planter / 150 mm walls. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
164 KBDetails & downloaddxfOpen the drawing

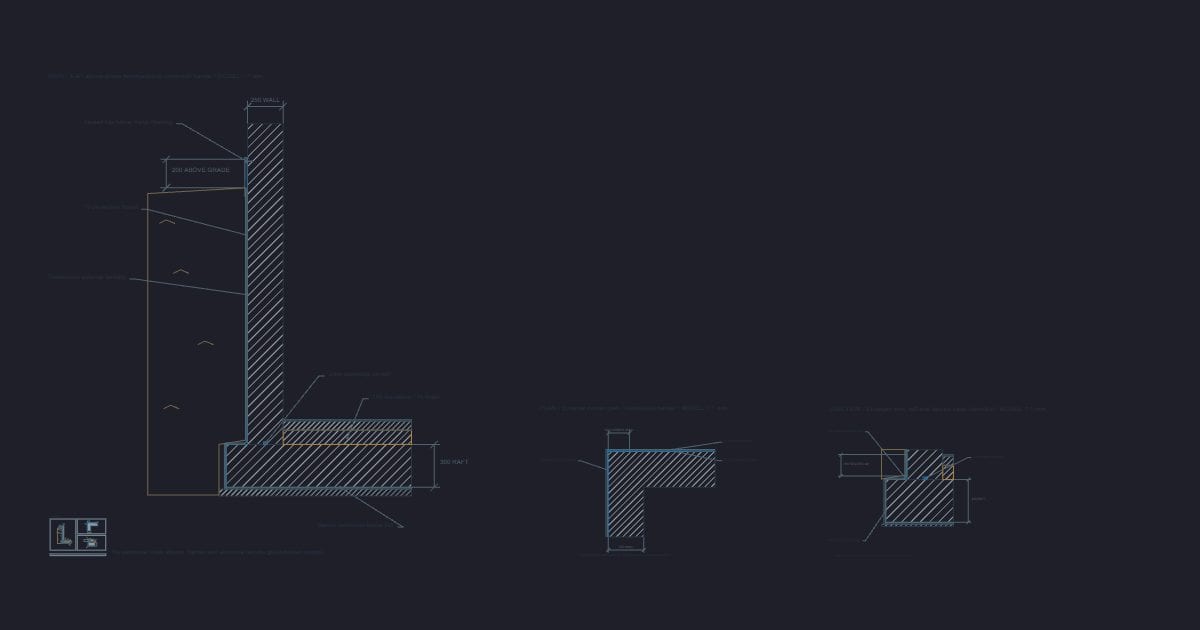

Below-ground tanking junction detailOriginal below-ground tanking study with a 250 mm wall, 300 mm raft and continuous 2 mm external membrane terminating 200 mm above the shown grade. Overall 3 x 3.2 x 0 m. Nominal size: 250 mm wall / 300 mm raft / 2 mm barrier. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
150 KBDetails & downloaddxfOpen the drawing

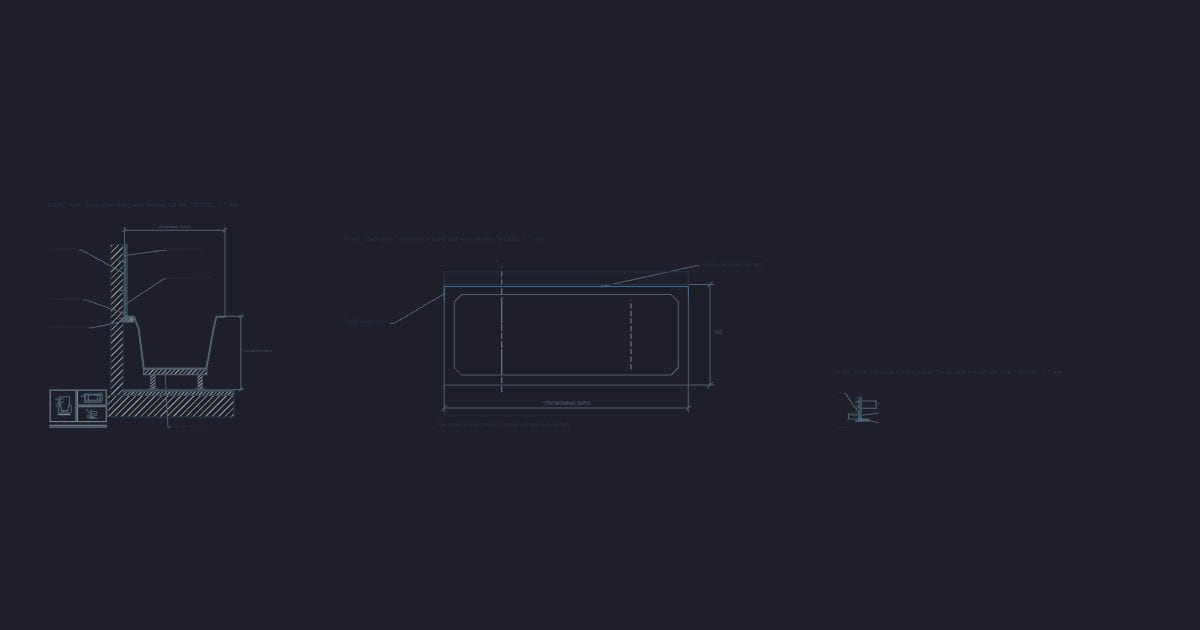

Bath upstand waterproofing detailOriginal 1700 x 700 mm bath upstand waterproofing study with a 35 mm formed flange, 12.5 mm supported wall lining and 50 mm membrane overlap. Overall 1559 x 1414 x 0 mm. Nominal size: 1700 x 700 mm nominal bath / 35 mm upstand. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
147 KBDetails & downloaddxfOpen the drawing

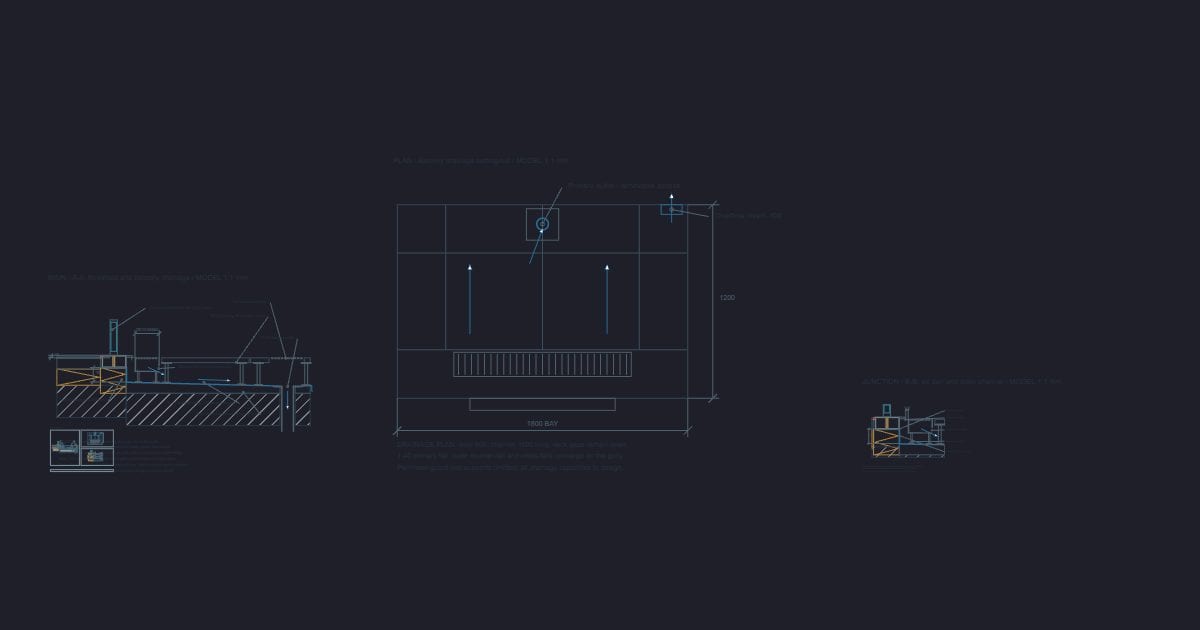

Balcony threshold waterproofing detailOriginal dimensioned wet-area waterproofing study: 1800 x 1200 mm bay / 90 mm upstand / 150 mm channel. Section, drainage plan and enlarged sealed junction. Overall 1639 x 1070 x 0 mm. Nominal size: 1800 x 1200 mm bay / 90 mm upstand / 150 mm channel. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
148 KBDetails & downloaddxfOpen the drawing

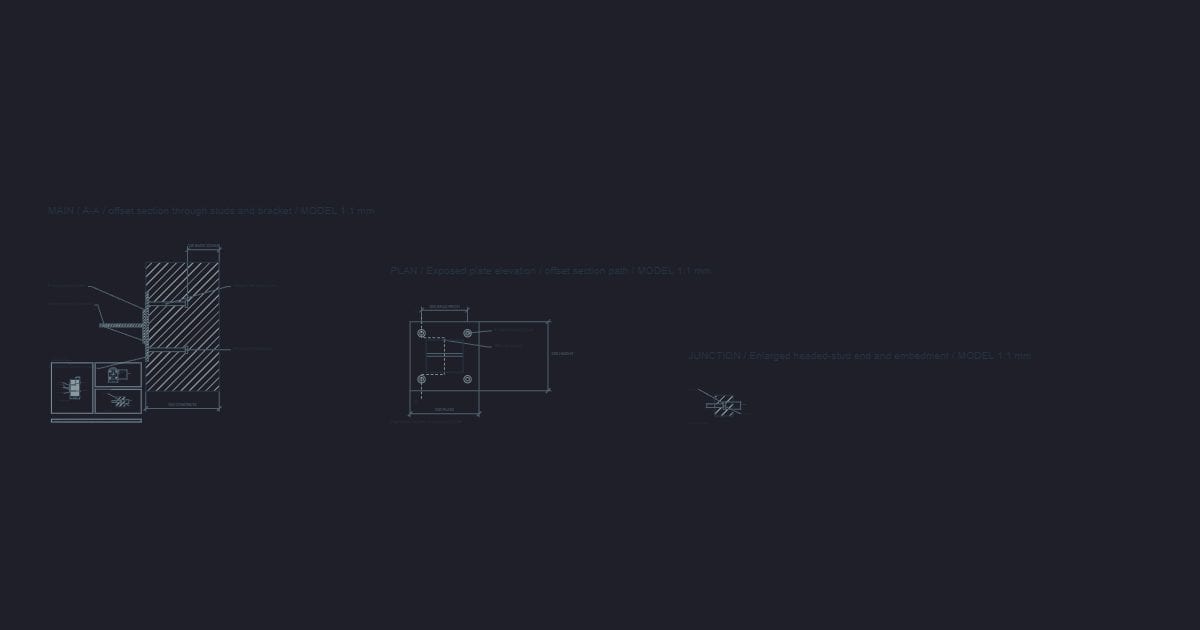

Steel to concrete anchor plate detailOriginal 2D 300 x 300 x 12 mm flush cast-in steel plate with four 16 mm headed studs in a 320 mm concrete wall and a 200 mm projected seat bracket. Overall 989 x 784 x 0 mm. Nominal size: 300 x 300 x 12 mm plate / 182 mm total embedment. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
111 KBDetails & downloaddxfOpen the drawing

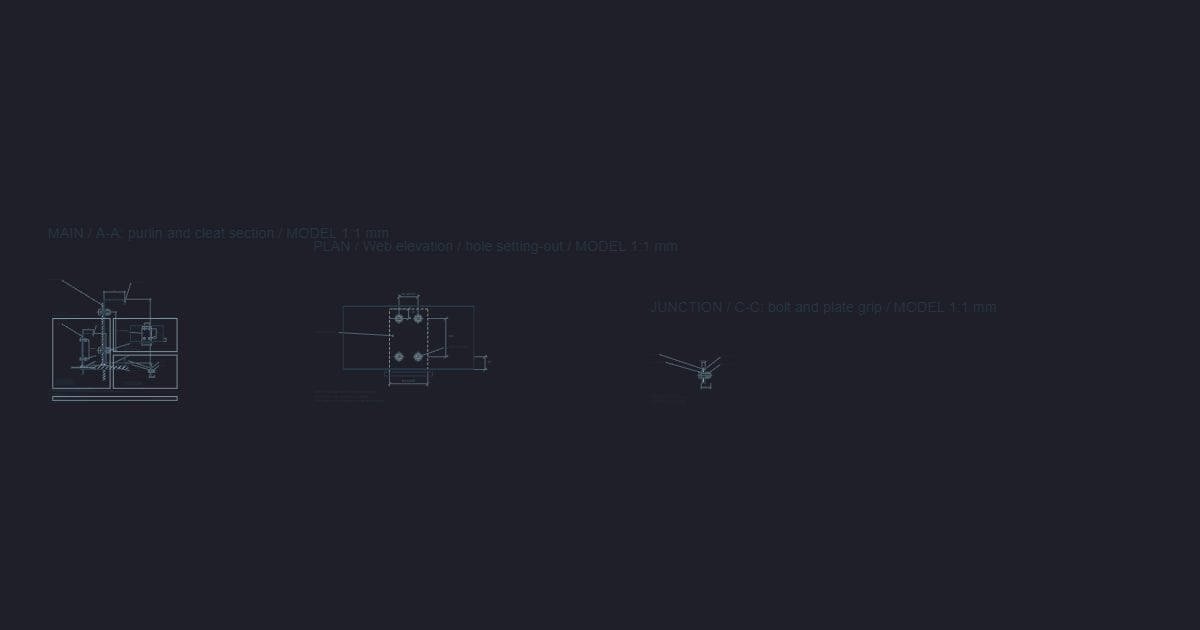

Steel purlin cleat detailOriginal dimensioned steel connection study: 200 x 65 x 15 x 2 mm C purlin / 8 mm cleat. Connection elevation, cut section and local assembly detail. Overall 332 x 390 x 0 mm. Nominal size: 200 x 65 x 15 x 2 mm C purlin / 8 mm cleat. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
220 KBDetails & downloaddxfOpen the drawing

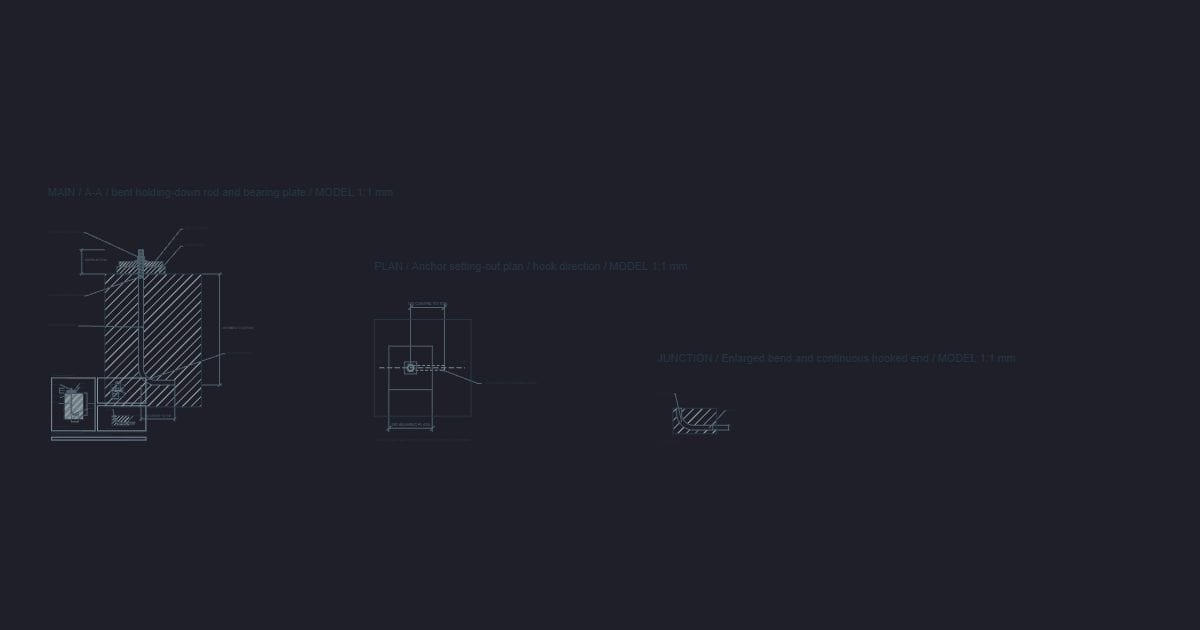

Holding-down bolt detailOriginal 2D M20 holding-down rod with 460 mm outside embedment, 140 mm centre-to-toe hook reach, R60 centreline bend and 100 mm exposed projection through a 180 x 180 x 20 mm plate. Overall 851 x 889 x 0 mm. Nominal size: M20 / 460 mm embedded depth / 140 mm hook reach. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
117 KBDetails & downloaddxfOpen the drawing

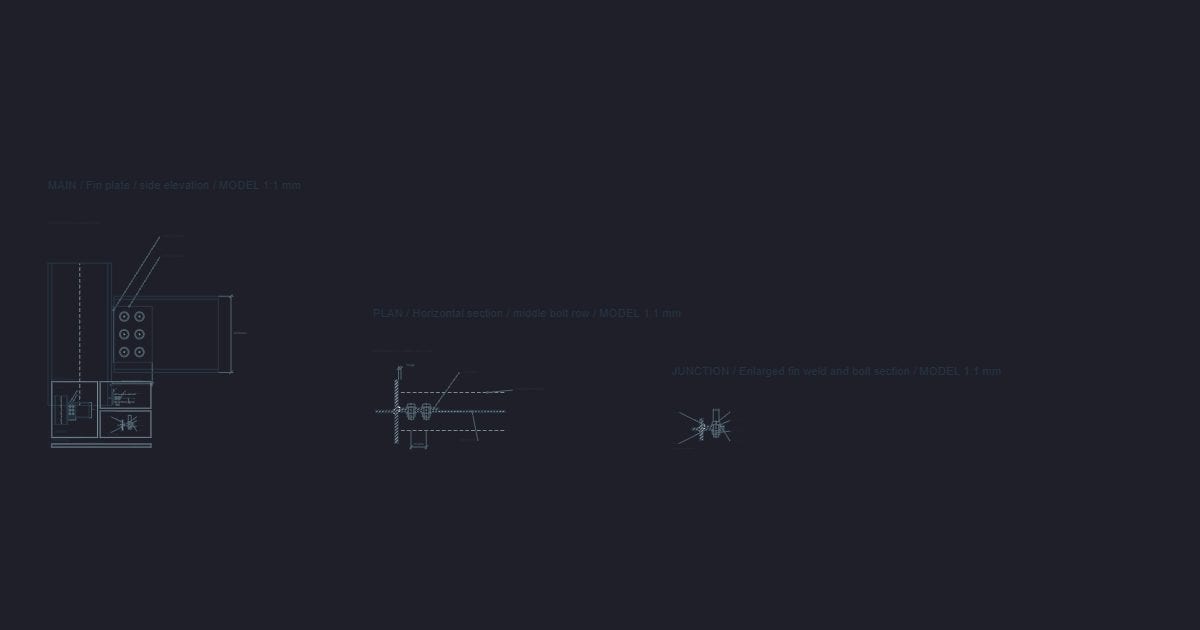

Steel fin plate connection detailOriginal steel fin plate connection detail with a 300 x 150 mm fabricated I beam, 160 x 220 x 10 mm fin plate, six M20 bolts and a 10 mm beam-end clearance. The horizontal section shows the offset plate and 8 mm double fillet weld. Overall 779 x 894 x 0 mm. Nominal size: 300 mm beam; 160 x 220 x 10 mm fin plate; 10 mm end gap. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
152 KBDetails & downloaddxfOpen the drawing
Column base plate with anchor bolts detailOriginal 2D 400 x 400 x 25 mm column base on 40 mm grout with four M24 cast-in rods on a 280 mm grid and a 600 mm square local pedestal. Overall 1256 x 1254 x 0 mm. Nominal size: 400 x 400 x 25 mm plate / M24 anchors. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
174 KBDetails & downloaddxfOpen the drawing

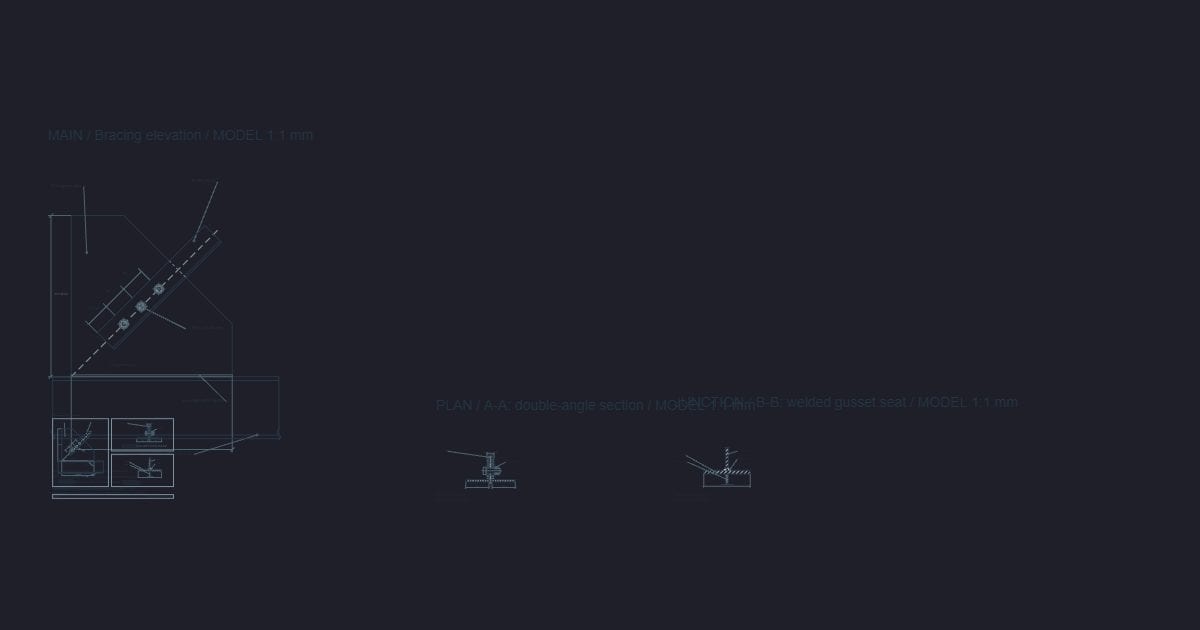

Steel bracing gusset detailOriginal dimensioned steel connection study: 10 mm gusset / paired 75 x 75 x 6 mm angles. Connection elevation, cut section and local assembly detail. Overall 752 x 1037 x 0 mm. Nominal size: 10 mm gusset / paired 75 x 75 x 6 mm angles. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
180 KBDetails & downloaddxfOpen the drawing

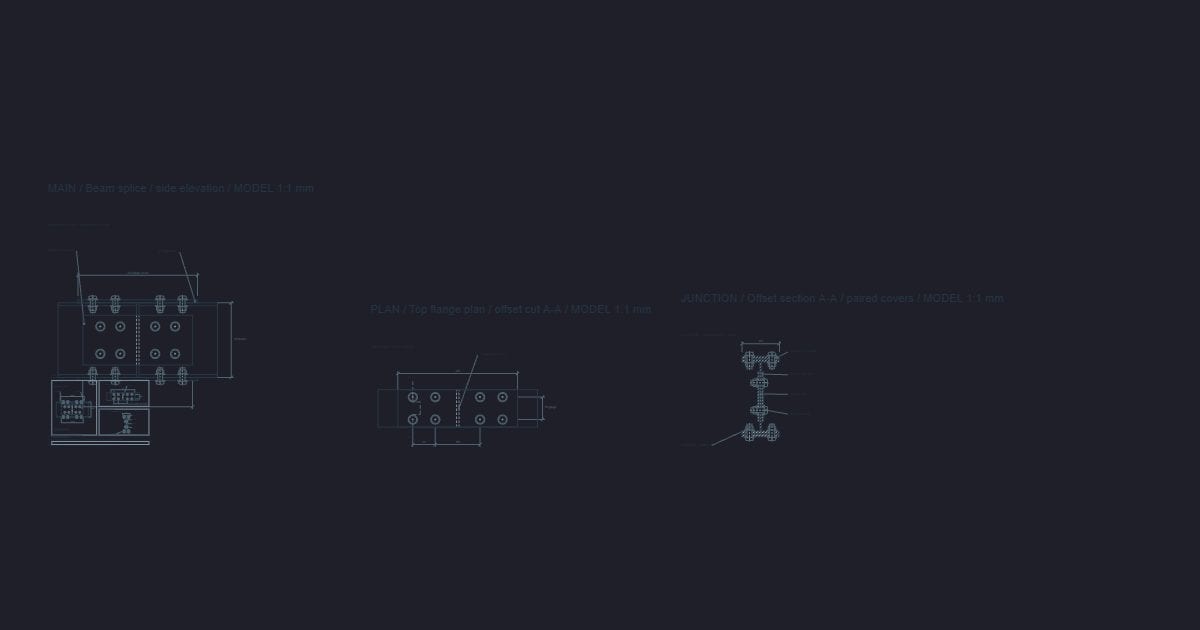

Steel beam splice detailOriginal bolted steel beam splice detail joining 300 x 150 mm fabricated I beams across a 10 mm gap. Symmetrical 480 x 150 x 12 mm outer flange plates and paired 440 x 200 x 8 mm web covers are shown with M20 bolts in 22 mm holes. Overall 794 x 894 x 0 mm. Nominal size: 300 mm beam; 10 mm gap; 480 mm flange and 440 mm web covers. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
265 KBDetails & downloaddxfOpen the drawing
Beam to column bolted end plate detailOriginal beam to column bolted end plate detail with a 300 x 150 mm fabricated I beam, 150 x 220 x 10 mm partial-depth plate and six M20 bolts in 22 mm holes. Three coordinated views show the 90 mm gauge and 70 mm vertical pitch. Overall 790 x 929 x 0 mm. Nominal size: 300 mm beam; 150 x 220 x 10 mm end plate; six M20 bolts. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
146 KBDetails & downloaddxfOpen the drawing
Roof verge detailOriginal roof verge detail with a 200 mm gable overhang, 22 x 180 mm bargeboard, 18 mm deck and 0.7 mm folded metal trim covering 205 mm of roof pan. Plan includes a 75 mm weather-facing cap lap. Overall 1201 x 1217 x 0 mm. Nominal size: 200 mm gable overhang; 205 mm cap cover; 170 mm downstand. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
87 KBDetails & downloaddxfOpen the drawing
Roof valley detailOriginal dimensioned roof section, drainage plan and enlarged junction: 600 mm projected valley / 200 mm open channel. Overall 1360 x 1255 x 0 mm. Nominal size: 600 mm projected valley / 200 mm open channel. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
114 KBDetails & download
