Free CAD Drawing Sheets with Title Blocks
Complete sheets laid out as issued, title block included. Every file here is public domain: open it in your browser, then download it and use it for anything.
1335 drawings · DWG, DXF, PDF, SVG, DWF and more · public domain
309 drawings with Title block · Clear all
dxfOpen the drawing
Beam to column bolted end plate detailOriginal beam to column bolted end plate detail with a 300 x 150 mm fabricated I beam, 150 x 220 x 10 mm partial-depth plate and six M20 bolts in 22 mm holes. Three coordinated views show the 90 mm gauge and 70 mm vertical pitch. Overall 790 x 929 x 0 mm. Nominal size: 300 mm beam; 150 x 220 x 10 mm end plate; six M20 bolts. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
146 KBDetails & downloaddxfOpen the drawing
Roof verge detailOriginal roof verge detail with a 200 mm gable overhang, 22 x 180 mm bargeboard, 18 mm deck and 0.7 mm folded metal trim covering 205 mm of roof pan. Plan includes a 75 mm weather-facing cap lap. Overall 1201 x 1217 x 0 mm. Nominal size: 200 mm gable overhang; 205 mm cap cover; 170 mm downstand. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
87 KBDetails & downloaddxfOpen the drawing
Roof valley detailOriginal dimensioned roof section, drainage plan and enlarged junction: 600 mm projected valley / 200 mm open channel. Overall 1360 x 1255 x 0 mm. Nominal size: 600 mm projected valley / 200 mm open channel. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
114 KBDetails & downloaddxfOpen the drawing

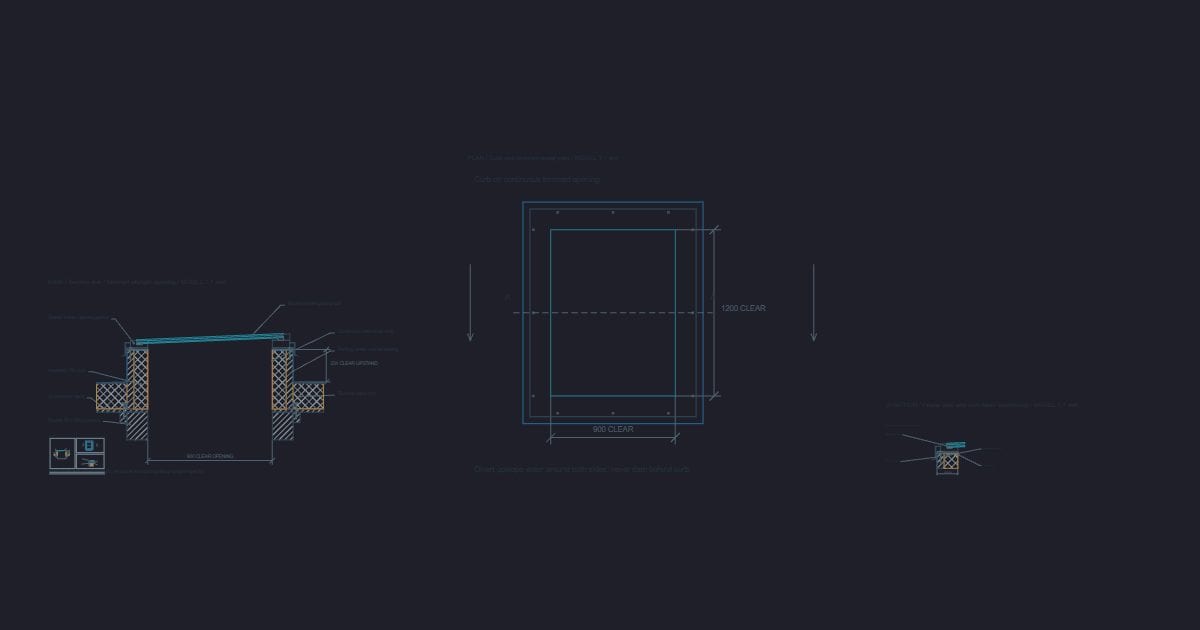

Skylight curb detailOriginal fixed skylight detail with 900 x 1200 mm clear opening, 150 mm insulated curb, 234 mm curb height above the local roof finish and double 75 x 200 mm trimmers; A3 section, plan and enlarged frame seat. Overall 2.5 x 1.2 x 0 m. Nominal size: 900 x 1200 mm clear opening / 150 mm insulated curb. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
164 KBDetails & downloaddxfOpen the drawing

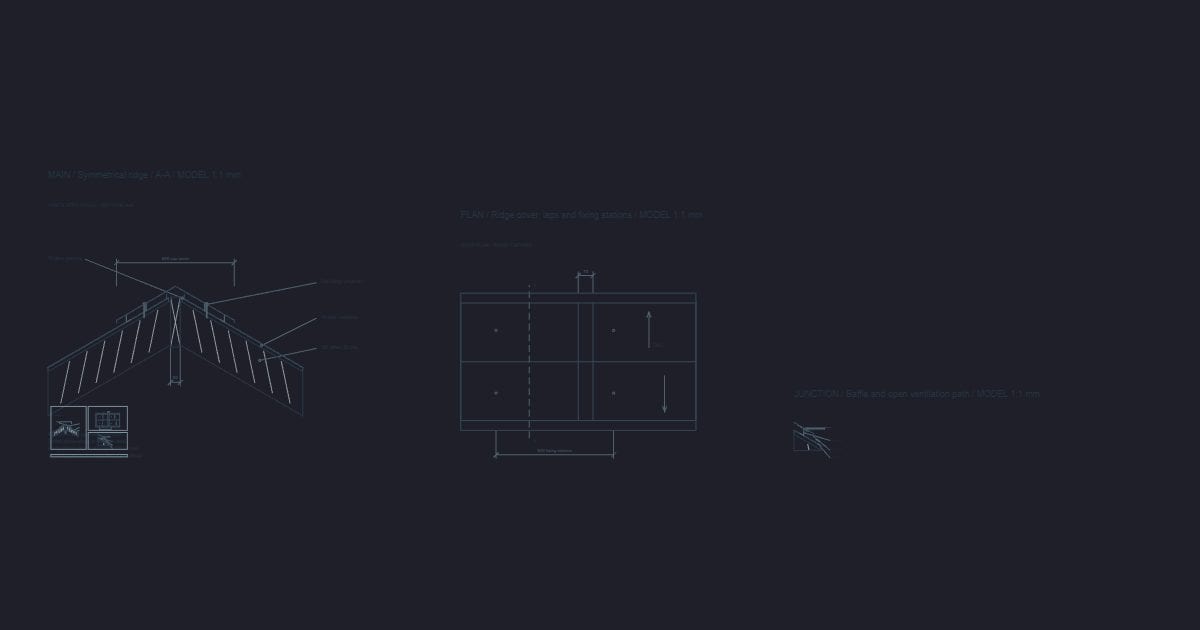

Roof ridge detailOriginal roof ridge detail: symmetrical 30 degree roof pitches, 600 mm folded cap, 70 mm deck ventilation opening and 50 x 255 mm ridge board. Enlarged detail shows a 5 mm weather-baffle air passage; plan gives a 75 mm cap lap. Overall 1606 x 1302 x 0 mm. Nominal size: 30 degree roof; 600 mm ridge cap; 70 mm deck opening; 75 mm cap lap. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
78 KBDetails & downloaddxfOpen the drawing

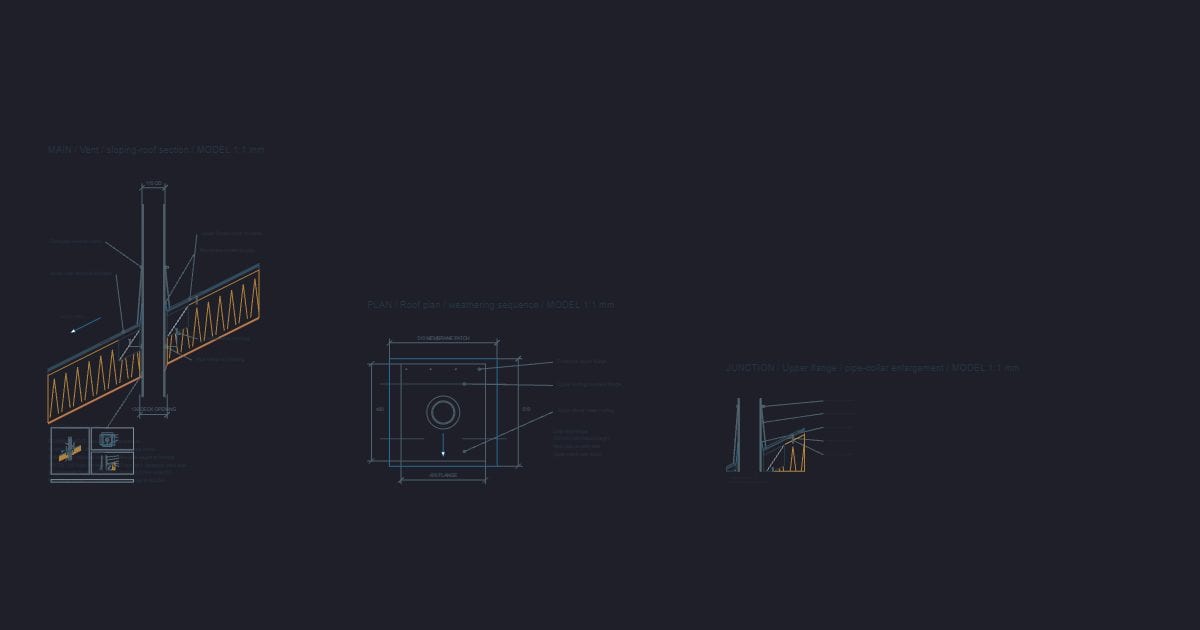

Roof penetration flashing detailOriginal dimensioned roof section, drainage plan and enlarged junction: 110 mm vent / 400 x 460 mm flashing flange. Overall 1013 x 1439 x 0 mm. Nominal size: 110 mm vent / 400 x 460 mm flashing flange. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
117 KBDetails & downloaddxfOpen the drawing

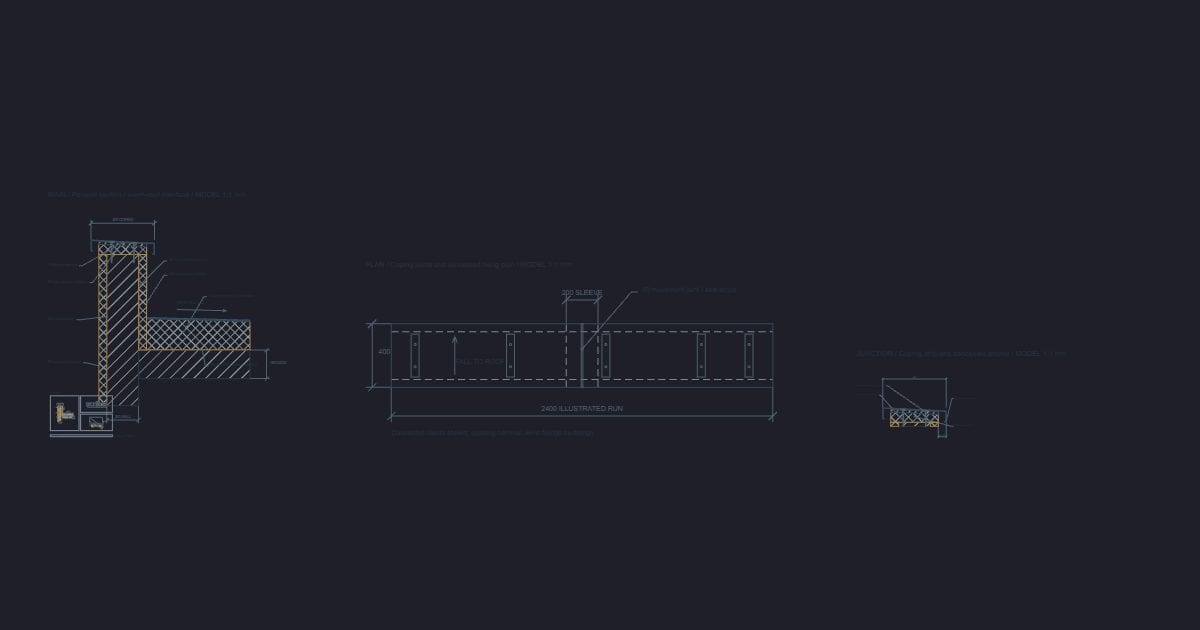

Parapet with coping roof detailOriginal 400 mm wide folded metal coping over a 200 mm parapet with 50 mm thermal wraps, 180 mm concrete roof deck and tapered warm-roof insulation; A3 section, fixing plan and enlarged coping junction. Overall 1499 x 1386 x 0 mm. Nominal size: 400 mm coping / 200 mm parapet / 180 mm deck. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
181 KBDetails & downloaddxfOpen the drawing

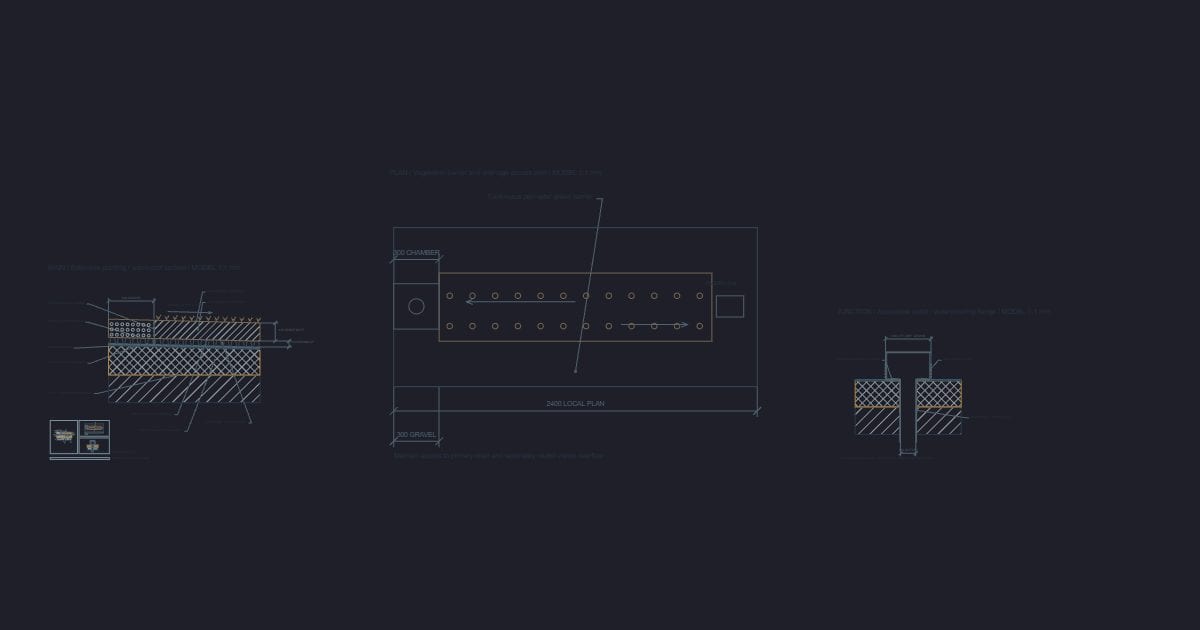

Green roof build-up detailOriginal extensive green-roof build-up with 120 mm substrate, 40 mm drainage layer, 6 mm protection mat and 300 mm gravel vegetation barrier above a warm roof; A3 section, access plan and 300 mm chamber with 100 mm outlet detail. Overall 1755 x 1128 x 0 mm. Nominal size: 120 mm substrate / 40 mm drainage / 300 mm gravel barrier. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
173 KBDetails & downloaddxfOpen the drawing

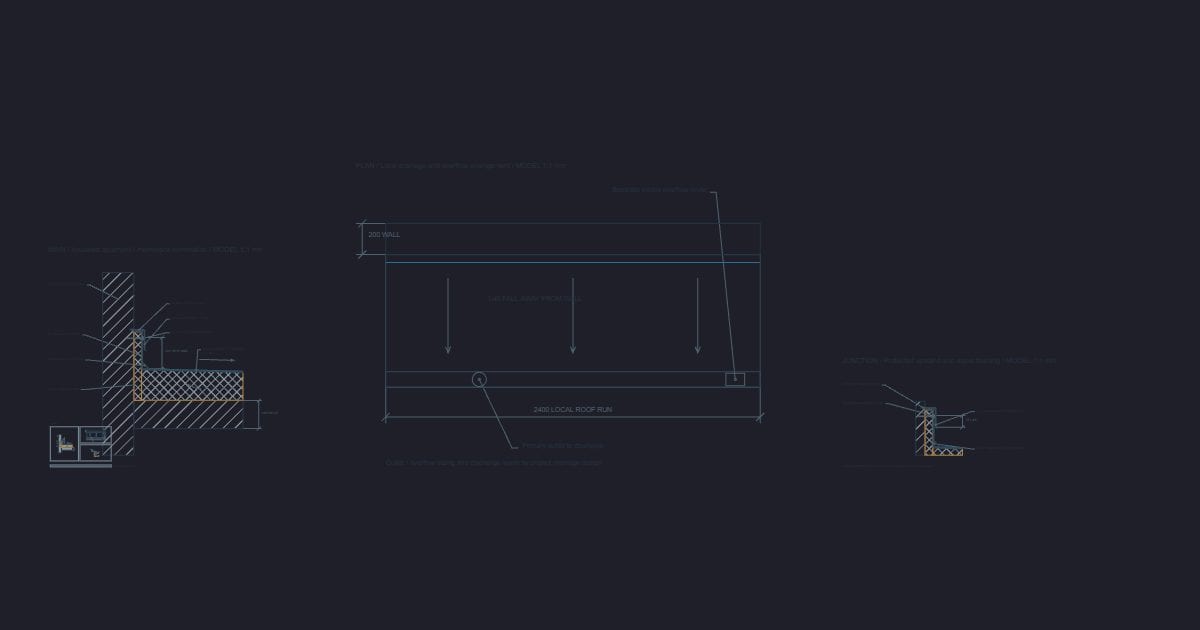

Flat roof upstand detailOriginal warm-roof upstand at a 200 mm solid wall with 200 mm membrane rise, 50 mm insulated backing, 75 mm counterflashing lap and 180 mm concrete deck; dimensioned A3 section, drainage plan and reglet detail. Overall 1474 x 1255 x 0 mm. Nominal size: 200 mm membrane rise / 200 mm wall / 180 mm deck. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
109 KBDetails & downloaddxfOpen the drawing

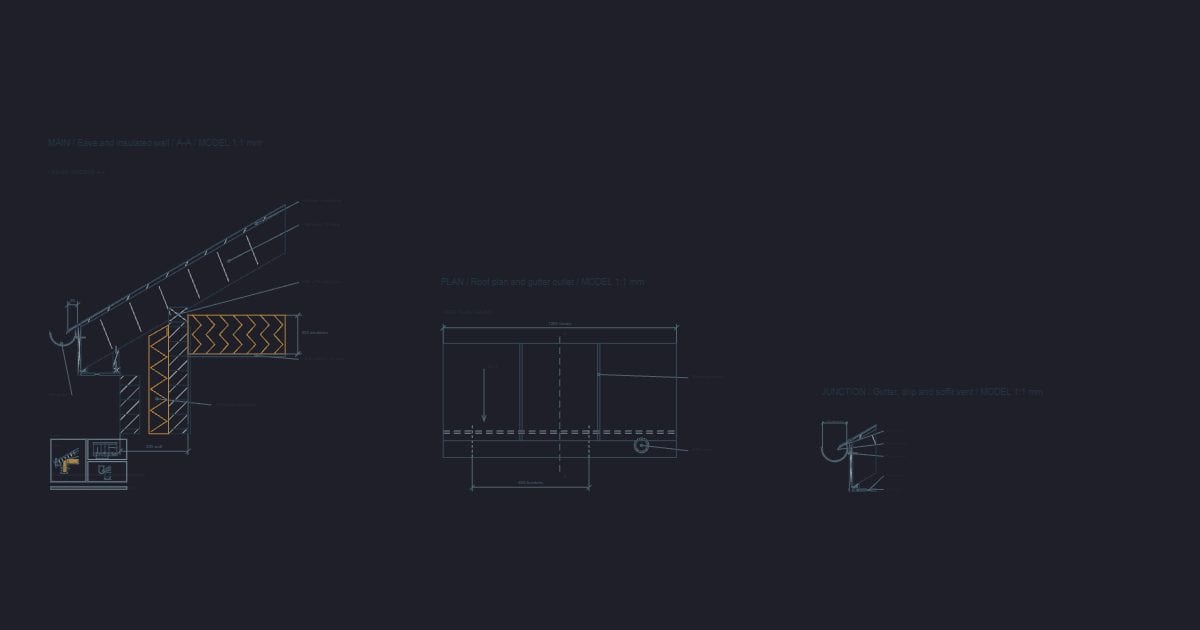

Eaves with gutter roof detailOriginal eaves with gutter roof detail: 30 degree metal roof with an 18 mm deck, 195 mm rafter, 125 mm clear gutter and 50 mm sheet projection beyond an 18 mm fascia. Roof plan shows a 75 mm outlet and gutter brackets. Overall 1520 x 1647 x 0 mm. Nominal size: 30 degree roof; 125 mm gutter; 50 mm sheet projection; 195 mm rafter. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
218 KBDetails & downloaddxfOpen the drawing

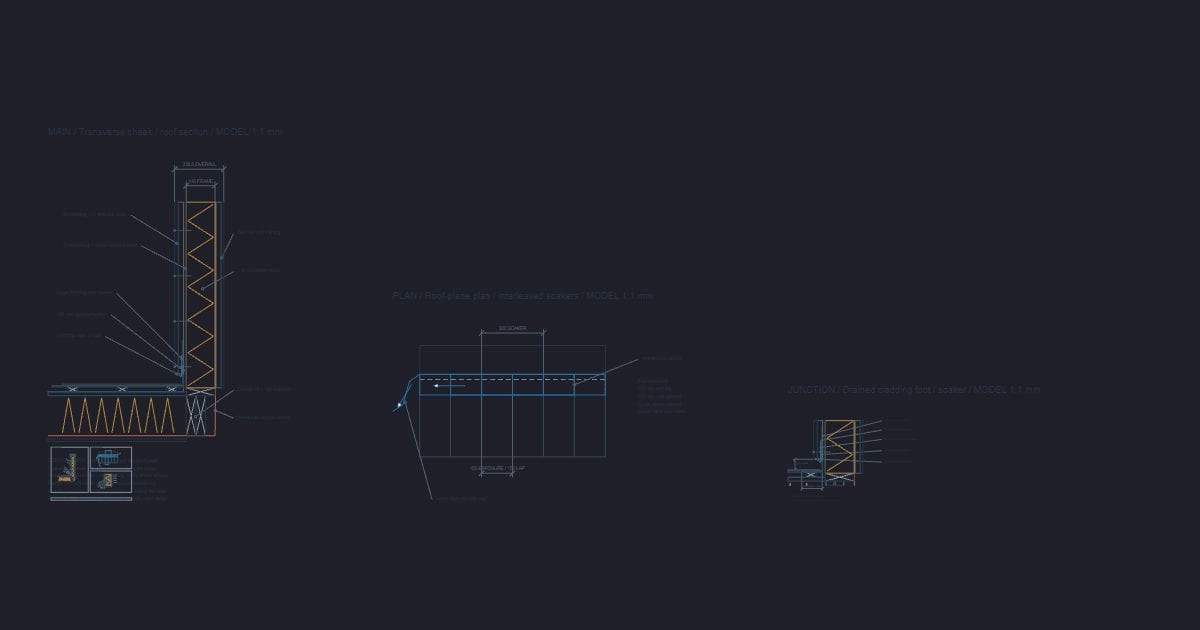

Dormer cheek roof detailOriginal dimensioned roof section, drainage plan and enlarged junction: 140 mm cheek / 100 x 100 mm soaker. Overall 1172 x 1649 x 0 mm. Nominal size: 140 mm cheek / 100 x 100 mm soaker. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
146 KBDetails & downloaddxfOpen the drawing

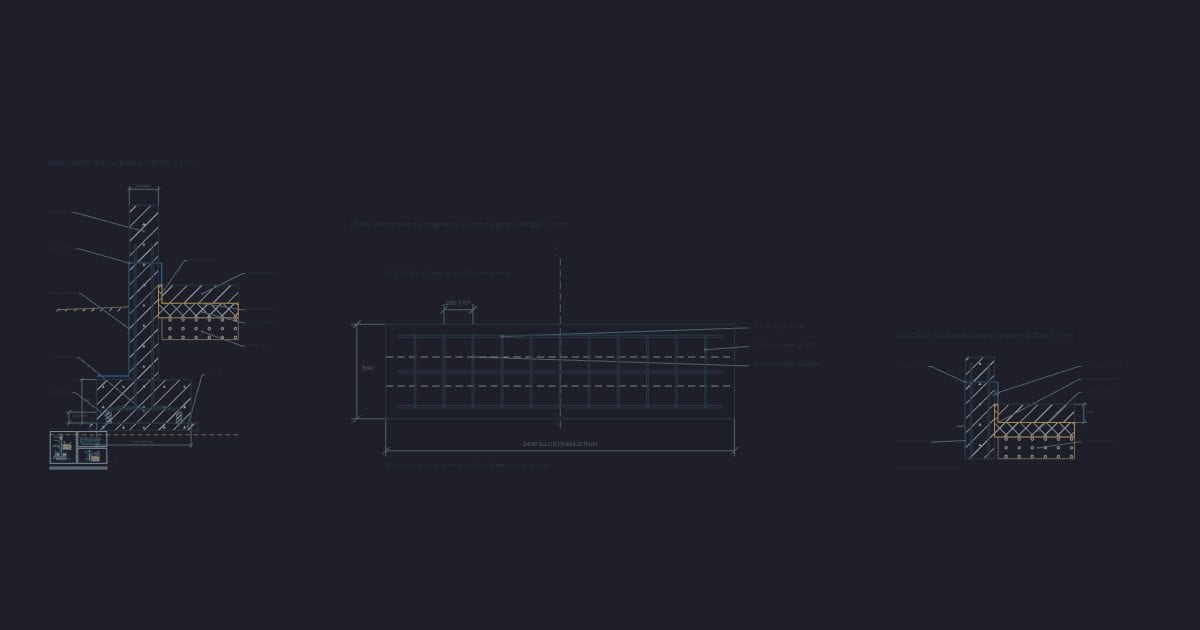

Strip footing construction detailOriginal 650 x 300 mm strip footing construction study with 125 mm slab, 200 mm wall and 100 mm insulation; dimensioned section, 2400 mm reinforcement plan segment and enlarged junction on A3. Overall 1585 x 1969 x 0 mm. Nominal size: 650 x 300 mm foundation / 125 mm slab. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
185 KBDetails & downloaddxfOpen the drawing

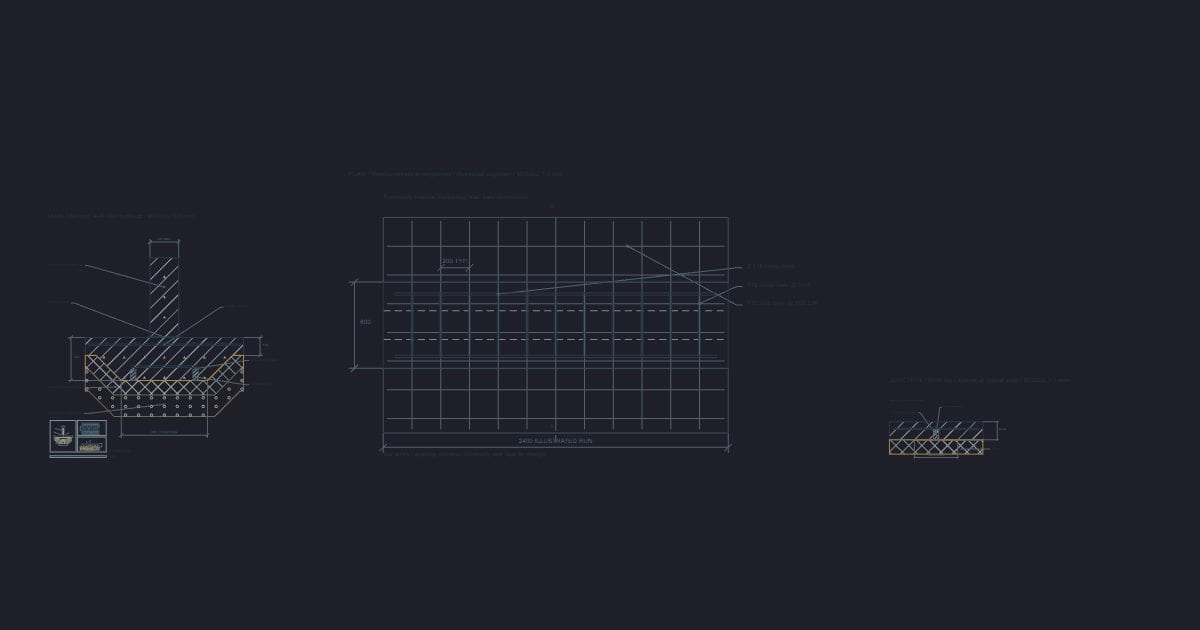

Slab on grade with thickening detailOriginal 600 x 300 mm slab on grade thickening construction study with 125 mm slab, 200 mm wall and 100 mm insulation; dimensioned section, 2400 mm reinforcement plan segment and enlarged junction on A3. Overall 1594 x 1543 x 0 mm. Nominal size: 600 x 300 mm foundation / 125 mm slab. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
154 KBDetails & downloaddxfOpen the drawing

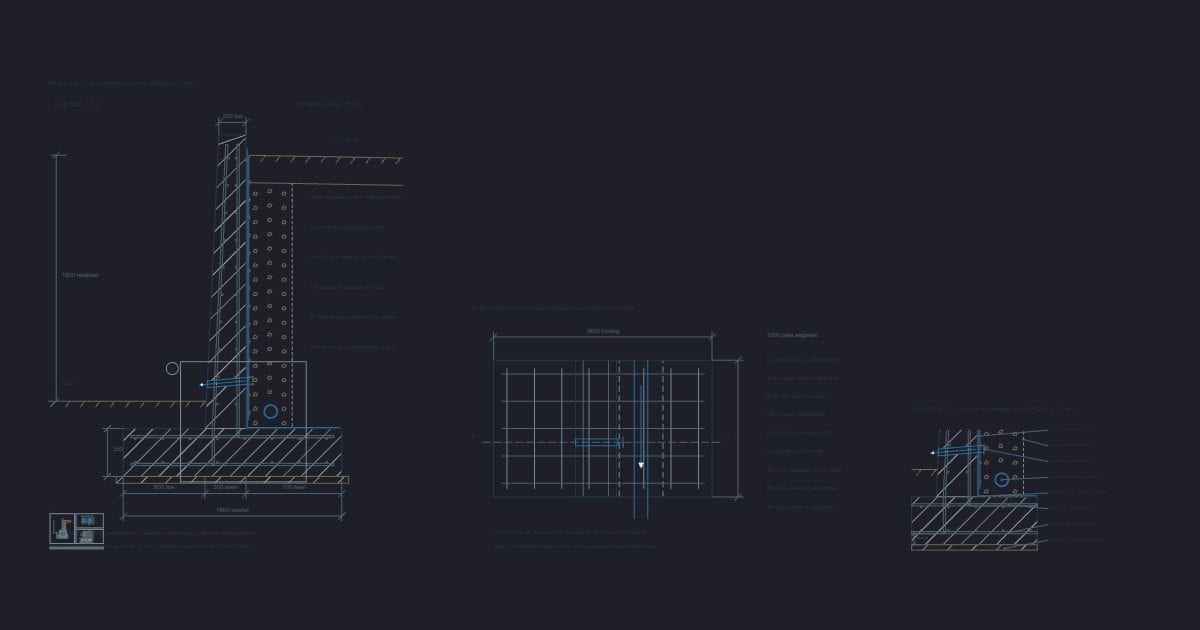

Retaining wall footing detailOriginal dimensioned cantilever retaining-wall section, footing plan and drainage joint study. Nominal size: 1800 mm retained height; 1600 x 350 mm footing. Overall 2.6 x 3.3 x 0 m. Nominal size: 1800 mm retained height; 1600 x 350 mm footing. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
239 KBDetails & downloaddxfOpen the drawing

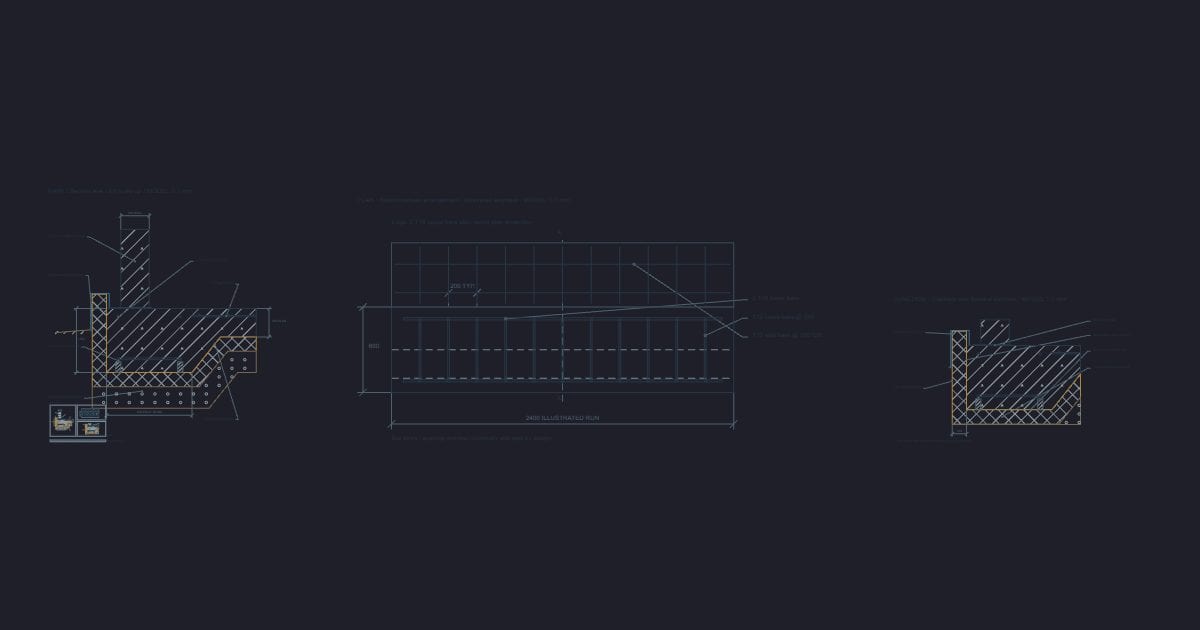

Raft slab edge construction detailOriginal 600 x 450 mm raft slab edge construction study with 200 mm slab, 200 mm wall and 100 mm insulation; dimensioned section, 2400 mm reinforcement plan segment and enlarged junction on A3. Overall 1669 x 1628 x 0 mm. Nominal size: 600 x 450 mm foundation / 200 mm slab. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
178 KBDetails & downloaddxfOpen the drawing

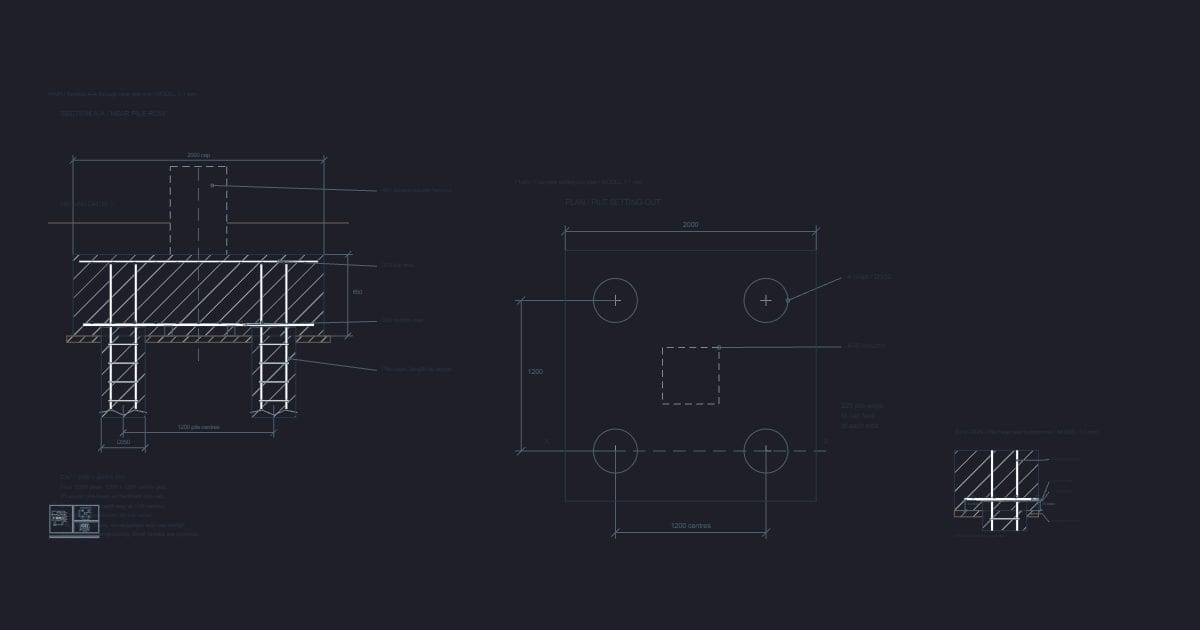

Pile cap construction detailOriginal pile cap construction detail: 2000 x 2000 x 650 mm cap over four 350 mm diameter piles at 1200 mm centres, with 75 mm pile-head embedment and a 450 mm square column beyond the section. A3 section 1:20, plan 1:25 and pile-head detail 1:10; DXF 1:1 mm. Overall 3.2 x 3.4 x 0 m. Nominal size: 2000 x 2000 x 650 mm cap; four D350 piles at 1200 mm centres. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
146 KBDetails & downloaddxfOpen the drawing

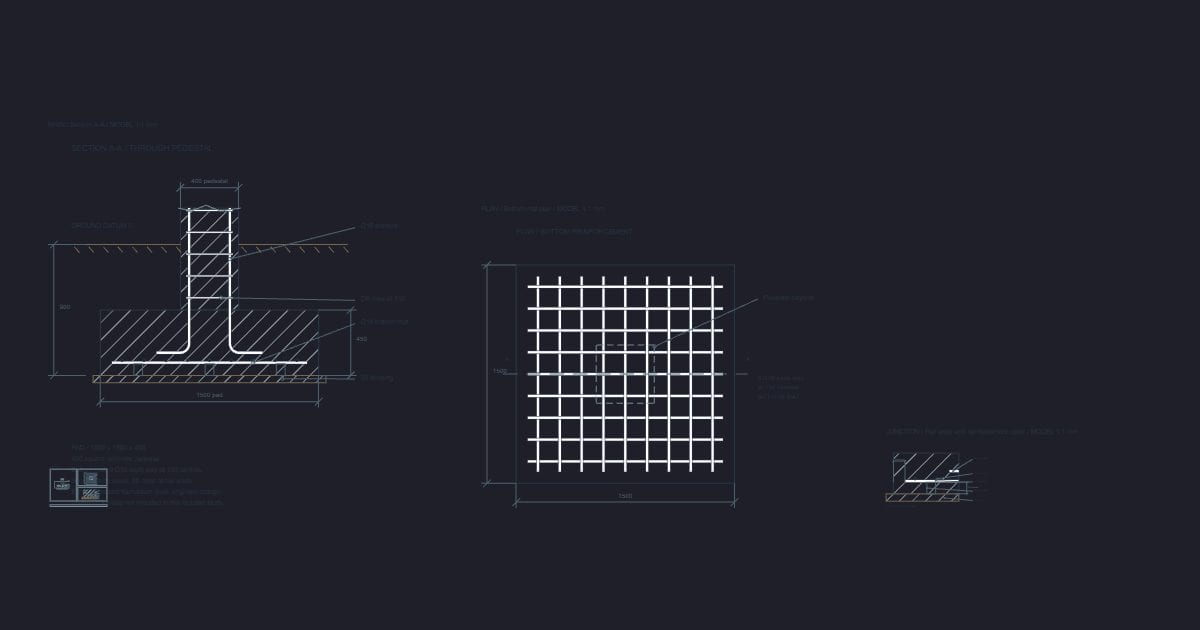

Pad footing construction detailOriginal pad footing construction detail: 1500 x 1500 x 450 mm reinforced pad, 400 mm square pedestal, 50 mm blinding and 80 mm bottom cover. Section and plan at 1:20 plus an enlarged cover detail at 1:5 on A3; DXF 1:1 mm. Overall 2.5 x 2.5 x 0 m. Nominal size: 1500 x 1500 x 450 mm pad; A3 section/plan 1:20, cover detail 1:5. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
155 KBDetails & downloaddxfOpen the drawing

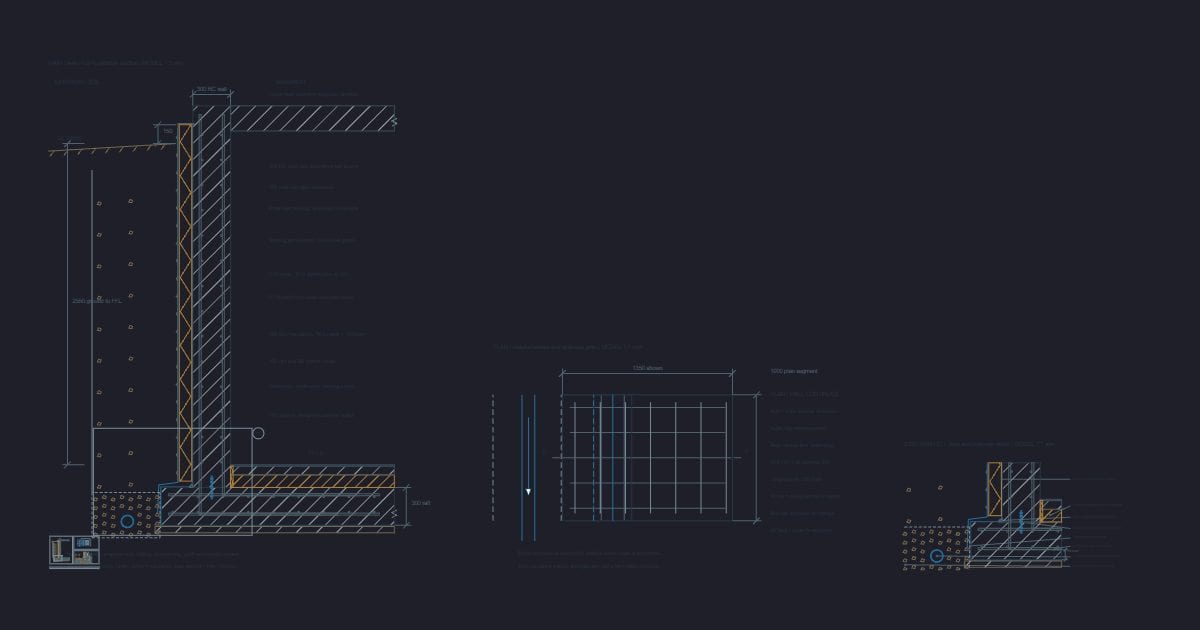

Basement wall and waterproofing detailOriginal dimensioned basement wall, raft, drainage plan and tanking joint study. Nominal size: 300 mm wall / 300 mm raft; 2550 mm ground height. Overall 3 x 3.9 x 0 m. Nominal size: 300 mm wall / 300 mm raft; 2550 mm ground height. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
257 KBDetails & downloaddxfOpen the drawing

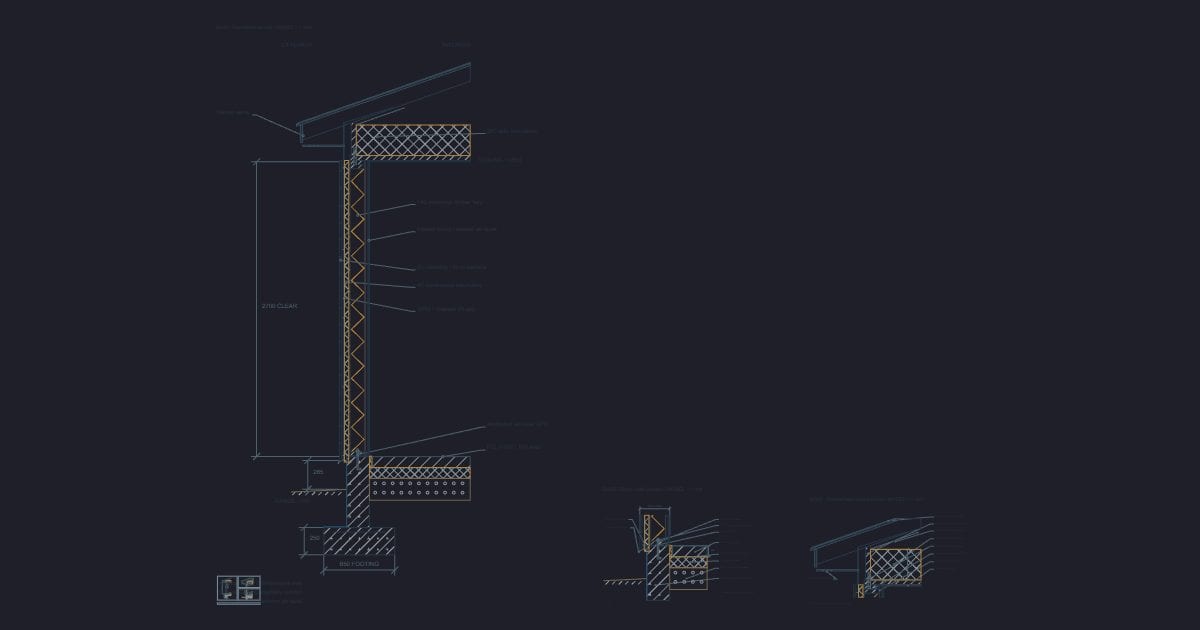

Timber frame wall: foundation-to-roof sectionOriginal 274.5 mm timber frame wall with 2700 mm floor-to-ceiling height, 650 x 250 mm footing, insulated slab and raised-heel roof junction; A3 main 1:25 and details 1:10. Overall 3.1 x 5.1 x 0 m. Nominal size: 274.5 mm wall / 2700 mm clear height. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
282 KBDetails & downloaddxfOpen the drawing

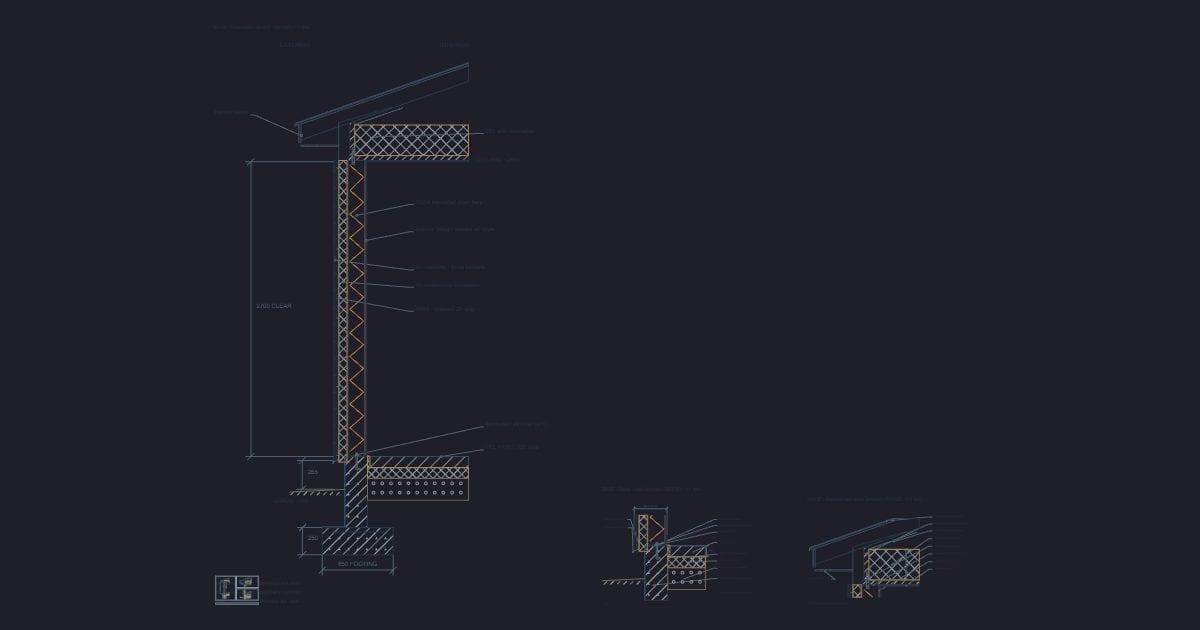

Steel stud wall: foundation-to-roof sectionOriginal 299.9 mm steel stud wall with 2700 mm floor-to-ceiling height, 650 x 250 mm footing, insulated slab and raised-heel roof junction; A3 main 1:25 and details 1:10. Overall 3.1 x 5.1 x 0 m. Nominal size: 299.9 mm wall / 2700 mm clear height. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
281 KBDetails & downloaddxfOpen the drawing

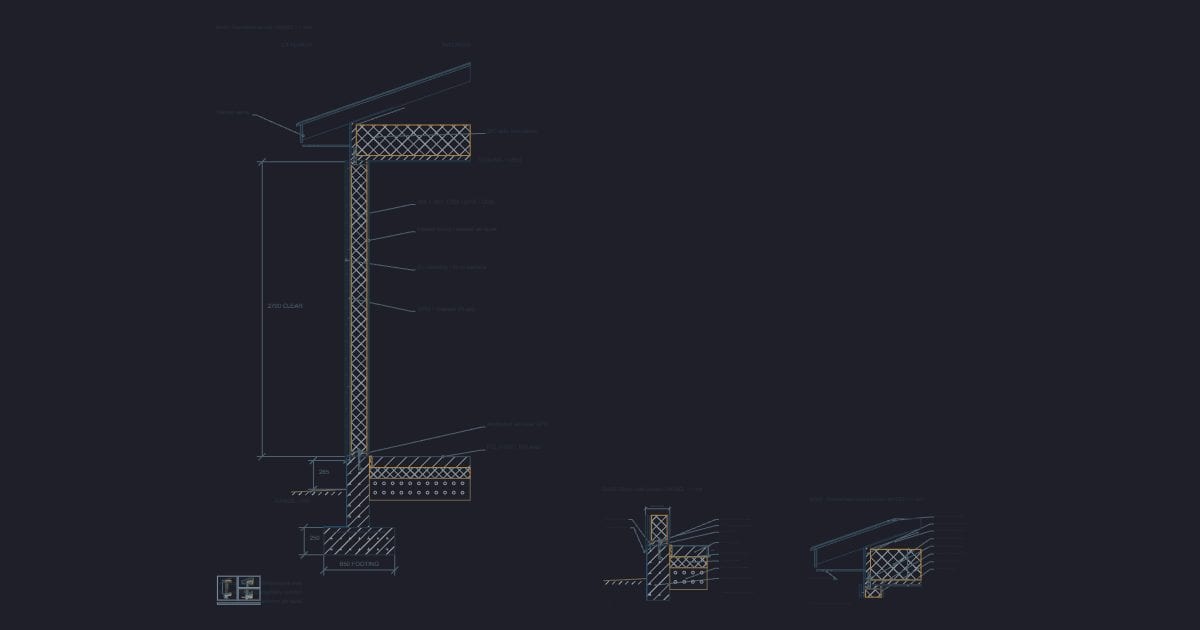

Structural insulated panel wall: foundation-to-roof sectionOriginal 222.6 mm sip wall with 2700 mm floor-to-ceiling height, 650 x 250 mm footing, insulated slab and raised-heel roof junction; A3 main 1:25 and details 1:10. Overall 3.1 x 5.1 x 0 m. Nominal size: 222.6 mm wall / 2700 mm clear height. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
267 KBDetails & downloaddxfOpen the drawing

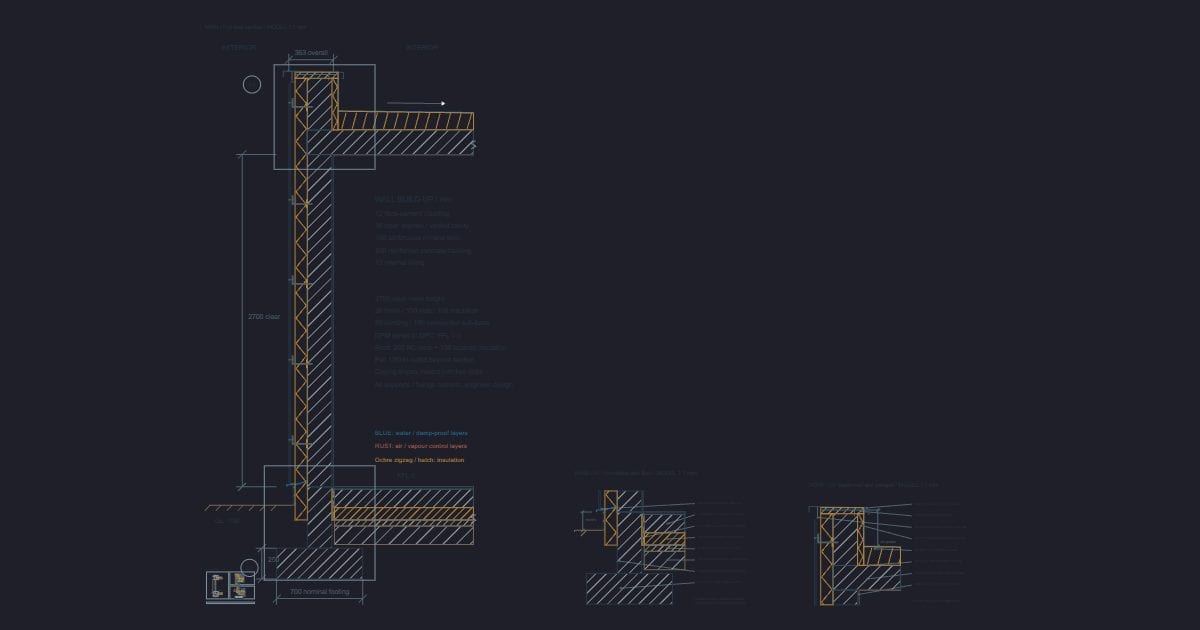

Rainscreen cladding wall: foundation-to-roof sectionOriginal dimensioned foundation-to-roof section for a 363 mm wall with 2700 mm clear room height. Includes foundation/floor and warm-roof/parapet details. DXF 1:1 mm; A3 PDF/SVG at 1:25 and 1:10. Overall 2.5 x 4.5 x 0 m. Nominal size: 363 mm wall; 2700 mm clear height. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
216 KBDetails & downloaddxfOpen the drawing
Curtain wall: foundation-to-roof sectionOriginal curtain wall section from an 800 x 250 mm strip footing to a warm concrete roof at 2900 mm soffit height. The 2700 mm curtain-wall frame uses 150 mm depth, 63.5 mm transoms and 28 mm insulating glass. A3 main view 1:25; sill and roof details 1:10. DXF model space is 1:1 mm. Overall 2.9 x 5.1 x 0 m. Nominal size: 2700 mm frame height; 150 mm frame depth; A3 1:25 + 1:10. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
206 KBDetails & downloaddxfOpen the drawing

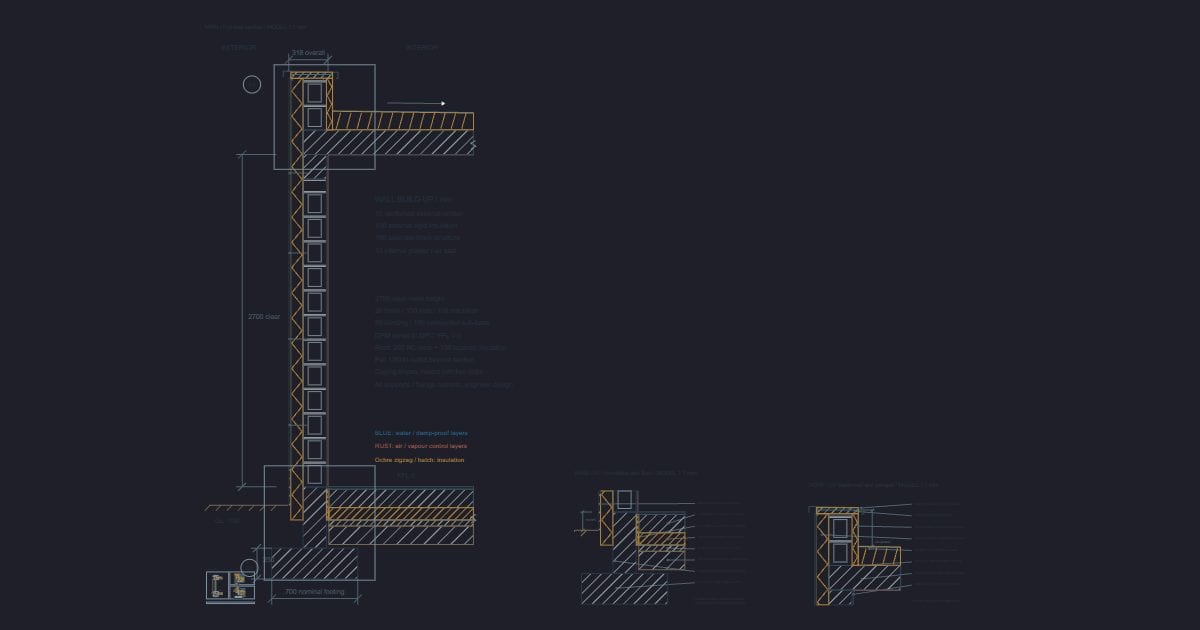

Concrete block wall: foundation-to-roof sectionOriginal dimensioned foundation-to-roof section for a 318 mm wall with 2700 mm clear room height. Includes foundation/floor and warm-roof/parapet details. DXF 1:1 mm; A3 PDF/SVG at 1:25 and 1:10. Overall 2.5 x 4.5 x 0 m. Nominal size: 318 mm wall; 2700 mm clear height. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
204 KBDetails & download
