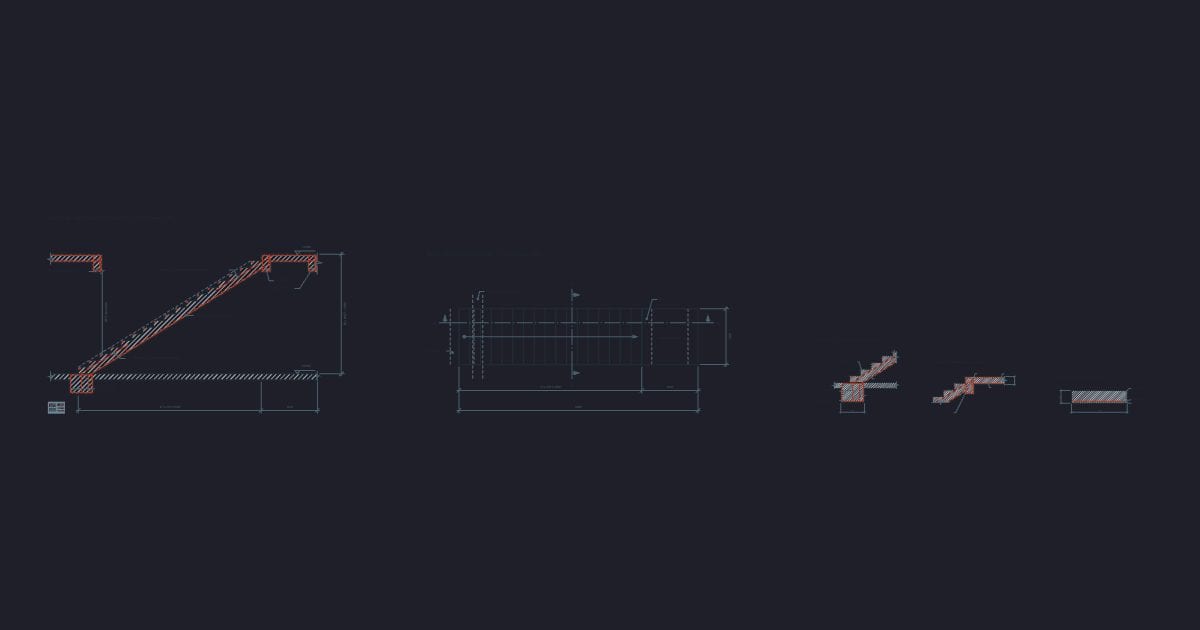

Straight reinforced concrete stair structural detail
2D drawing · DXF · 510 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Straight reinforced concrete stair structural detail (detalle estructural escalera de un tramo recto): one flight of 18 risers of 166.7 mm and 17 goings of 270 mm (4590 mm) over 3000 mm, 1400 mm wide with a 200 mm waist, spanning from a 600 x 500 ground beam to a 250 x 450 landing beam; landing 1410 mm long at +3.000, overall 6000 x 1400 x 3000 mm, headroom 2013 mm below the stairwell trimmer. Section A-A, stair plan, ground beam and landing beam details and cross-section B-B with 9 main bars of 12 mm at 150. A3 sheet; DXF 1:1 mm, section and plan 1:50, details 1:20. Nominal size: 6000 x 1400 x 3000 mm (flight 4590 + landing 1410). DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
File: straight-reinforced-concrete-stair-structural-detail.dxf · added 2026-10-24 · available until 2031-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
