Beam and column formwork details
2D drawing · DXF · 248 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

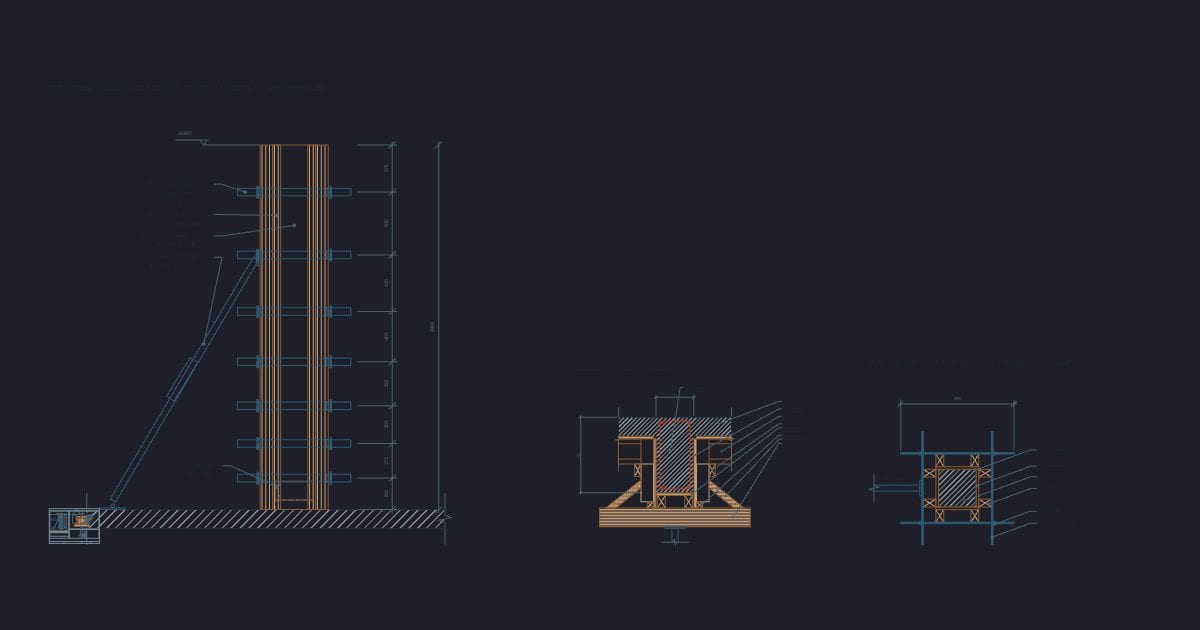

Beam and column formwork details for column C1 and beam B1 of the two-bay frame (DRG 2104-01): elevation of the 300 x 300 column form 2900 high to the beam soffit on a 75 mm kicker, with 21 mm form-ply, 63 x 100 studs, seven steel column clamps spaced from 250 at the base to 500, a cleanout panel and push-pull props; plan section through a clamp (900 arms, 20 x 20 chamfer fillets); section of the 300 x 600 beam form with a 21 mm soffit on two 63 x 100 runners, a 75 x 150 headtree bearer, side forms with 50 x 100 soldiers, ledgers, kicker cleats and struts; clamp schedule. A3 sheet; DXF 1:1 mm, elevation 1:25, sections 1:20 and 1:10. Nominal size: Column form 900 x 900 x 2900 mm (clamps x clamps x height); beam form 300 x 600 mm. DXF drawing at 1:1 in millimeters with named layers; opens in AutoCAD, LibreCAD, Revit and the viewer. Export to DWG, PDF, SVG and other formats from the viewer. Drawn at nominal real-world dimensions for layout and documentation; verify against local codes and the actual product before construction. Original Innerscene model, released CC0.
File: beam-and-column-formwork-details.dxf · added 2026-10-24 · available until 2031-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
