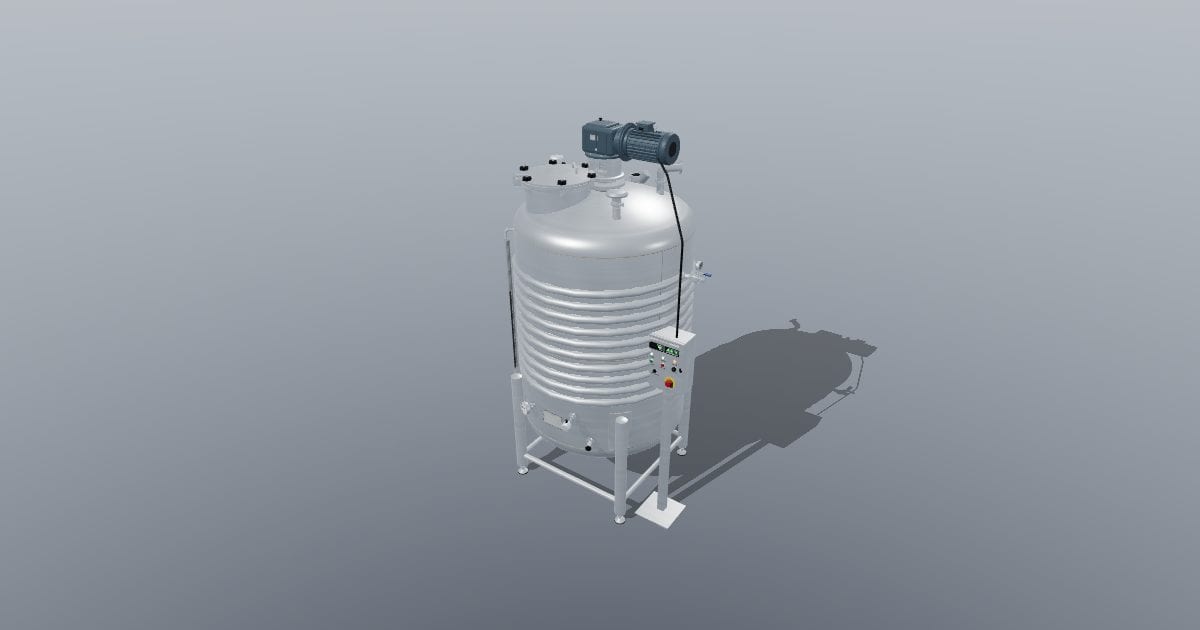

Stainless mixing tank with top agitator 2000 L
3D model · GLB · 10.2 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Stainless mixing tank with top agitator 2000 L. Overall 1720 x 1477 x 2942 mm (X width x Y depth x Z height): closed stainless mixing tank for 2000 L working volume: 1300 mm shell with dished heads and a half-pipe coil jacket, top-entry agitator drive (bevel-helical gear unit, horizontal motor, lantern with windows, coupling and mechanical seal), hinged DN450 manway with swing bolts, CIP, vent, inlet, sight glass and level transmitter on clamp ferrules, DN65 bottom outlet with butterfly valve, level sight gauge with scale, thermometer, temperature sensor and sample valve, braced legs with adjustable feet, control box on a floor stand, visible welds. Original unbranded model. Overall 1.7 x 1.5 x 2.9 m. Nominal size: 1720.00 x 1476.60 x 2942.31 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: stainless-mixing-tank-with-top-agitator-2000-l.glb · added 2026-10-23 · available until 2030-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
