Fixture welding table with clamps and stops (28 mm system)

Description

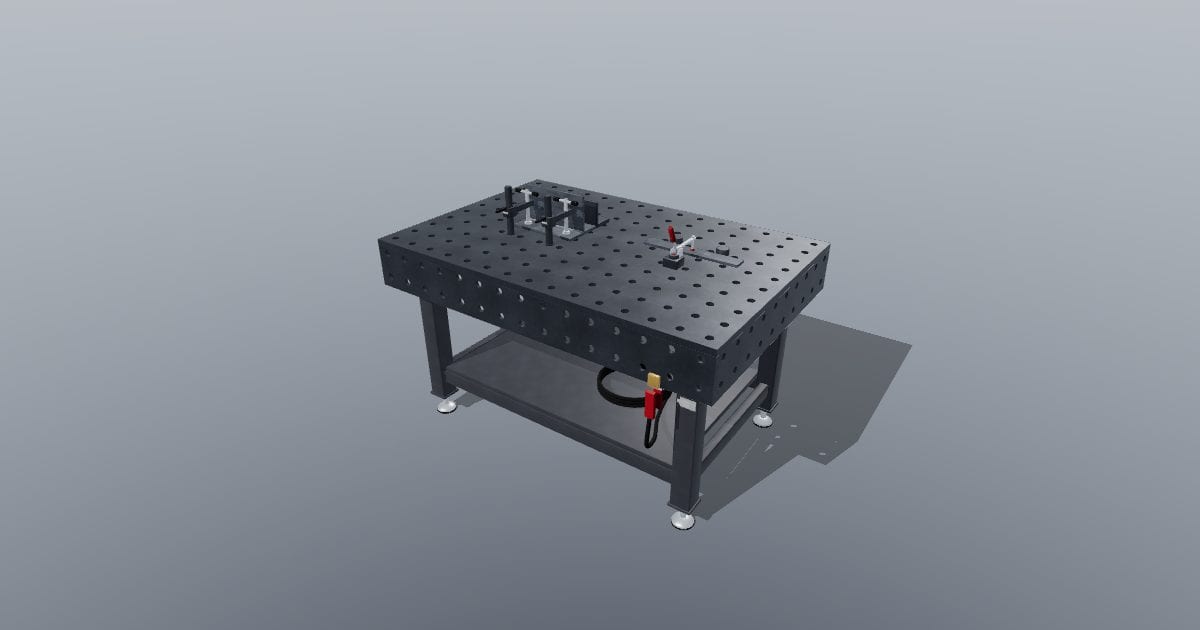

Fixture welding table with clamps and stops (28 mm system). Overall 1500 x 1036 x 1050 mm (X width x Y depth x Z height): fixture welding table of the 28 mm system: a nitrided 1500 x 1000 x 25 mm top with 150 holes of 28 mm on a 100 mm grid and engraved grid lines through the hole centres, a 200 mm system edge with two rows of 28 mm holes (50 and 150 mm below the top surface), four 80 x 80 mm legs with levelling feet, a lower frame and shelf. The table top is 850 mm above the floor. On it: a stop square fixed with two quick-release bolts, a T-joint of 12 mm steel plates held by two screw clamps (one fillet weld finished, three tack welds on the other side), two round stops and a toggle clamp holding a flat bar; an earth clamp grips the front edge with its lead coiled on the shelf. The screw clamp posts reach 1050 mm above the floor (the overall height); the top sets the width (1500 mm in X) and the earth clamp and its lead in front of the front edge the depth (1036 mm in Y). Original unbranded model. Overall 1500 x 1036 x 1050 mm. Nominal size: 1500.00 x 1035.97 x 1050.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: fixture-welding-table-with-clamps-and-stops-28-mm-system.glb · added 2026-10-23 · available until 2030-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
