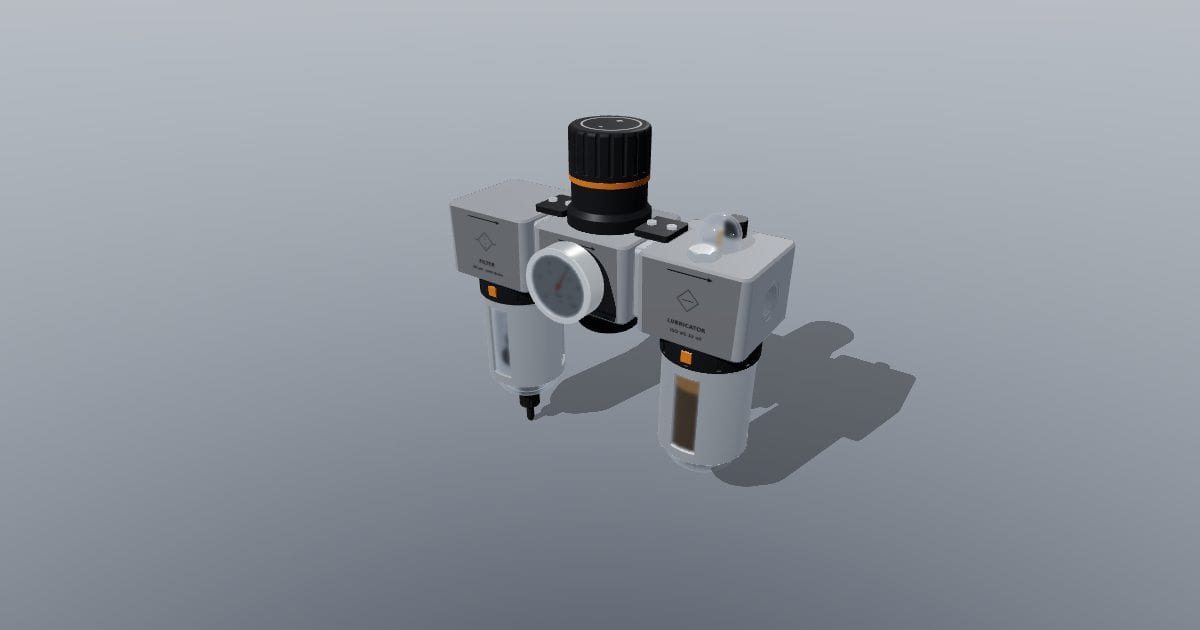

Pneumatic FRL unit (filter, regulator, lubricator) G3/8 with gauge
3D model · GLB · 2.0 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Pneumatic FRL unit (filter, regulator, lubricator) G3/8 with gauge. Overall 192.0 x 77.6 x 214.0 mm (X x Y x Z, Z up): three-module air preparation unit: filter with clear bowl, guard and semi-automatic drain, regulator with ribbed knob and 40 mm gauge, lubricator with sight dome and oil-filled bowl, G3/8 ports with real internal threads, printed module markings. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 192 x 78 x 214 mm. Nominal size: 192.00 x 77.60 x 214.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: pneumatic-frl-unit-filter-regulator-lubricator-g3-8-with-gau.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
