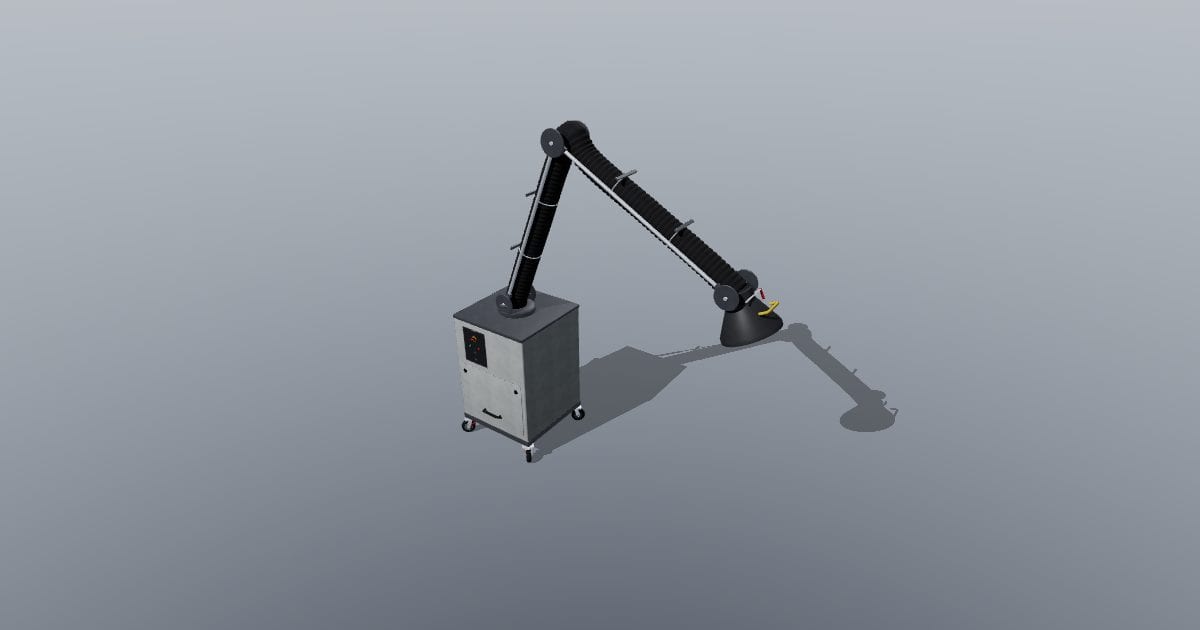

Mobile welding fume extractor with extraction arm

Description

Mobile welding fume extractor with extraction arm. Overall 2245 x 670 x 2284 mm (X width x Y depth x Z height): mobile welding fume extractor: a light grey 600 x 600 mm filter cabinet on four 100 mm castors (top cover 970 mm above the floor) with a control panel (main switch, start and stop, filter status lights, hour counter), a filter door with quarter-turn latches, exhaust louvres at the back and a push handle carrying the mains cable; on a swivel on top, a self-supporting extraction arm: a 150 mm ribbed hose carried by aluminium support tubes with friction joints and a gas spring, its elbow joint axis 2180 mm above the floor (the hose bend over the elbow is the overall height of 2284 mm), and a 336 mm hood with a mesh grille, a damper lever and a handle. The arm reaches along +X: the hood mouth centre is 1.66 m from the swivel axis and 1330 mm above the floor; the hood rim and the mains plug on the push handle set the width (2245 mm in X) and the filter door handle and the castors the depth (670 mm in Y). Original unbranded model. Overall 2.2 x 0.7 x 2.3 m. Nominal size: 2244.73 x 669.80 x 2284.46 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: mobile-welding-fume-extractor-with-extraction-arm.glb · added 2026-10-23 · available until 2030-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
