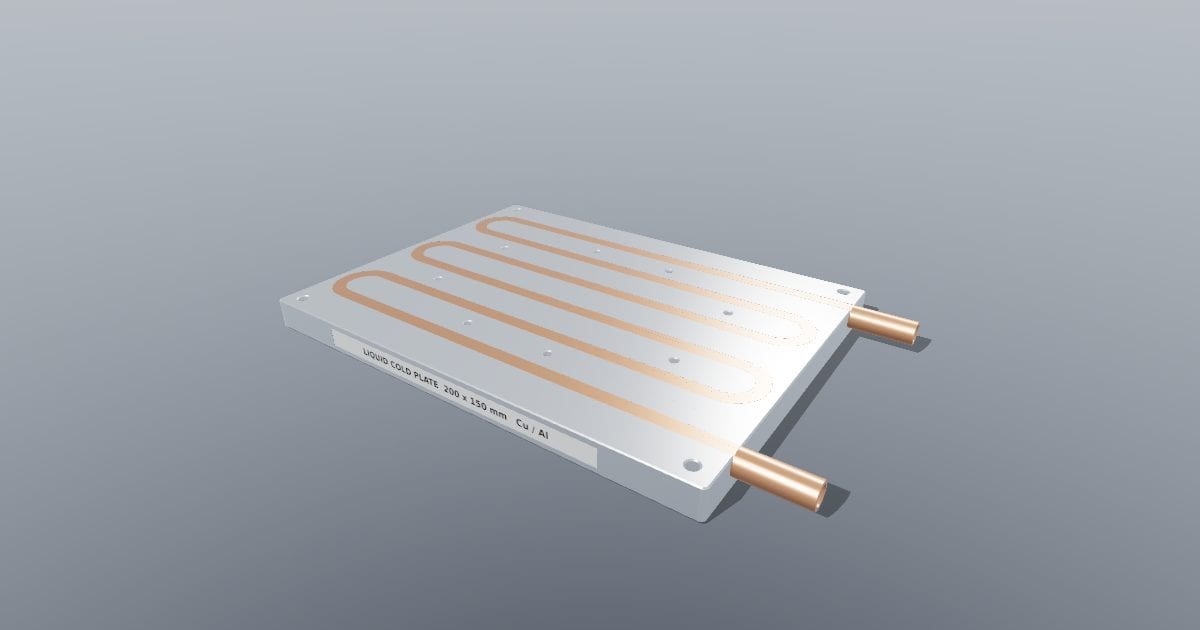

Liquid cooling cold plate 200 x 150 mm with copper tube
3D model · GLB · 760 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Liquid cooling cold plate 200 x 150 mm with copper tube. Overall 225.0 x 150.1 x 13.7 mm (X x Y x Z, Z up): liquid cooling cold plate: aluminium plate with a 9.53 mm copper tube in six passes pressed in and milled flush with the mounting face, two tube stubs on one side, mounting and M4 tapping holes. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 225 x 150 x 14 mm. Nominal size: 225.00 x 150.12 x 13.65 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: liquid-cooling-cold-plate-200-x-150-mm-with-copper-tube.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
