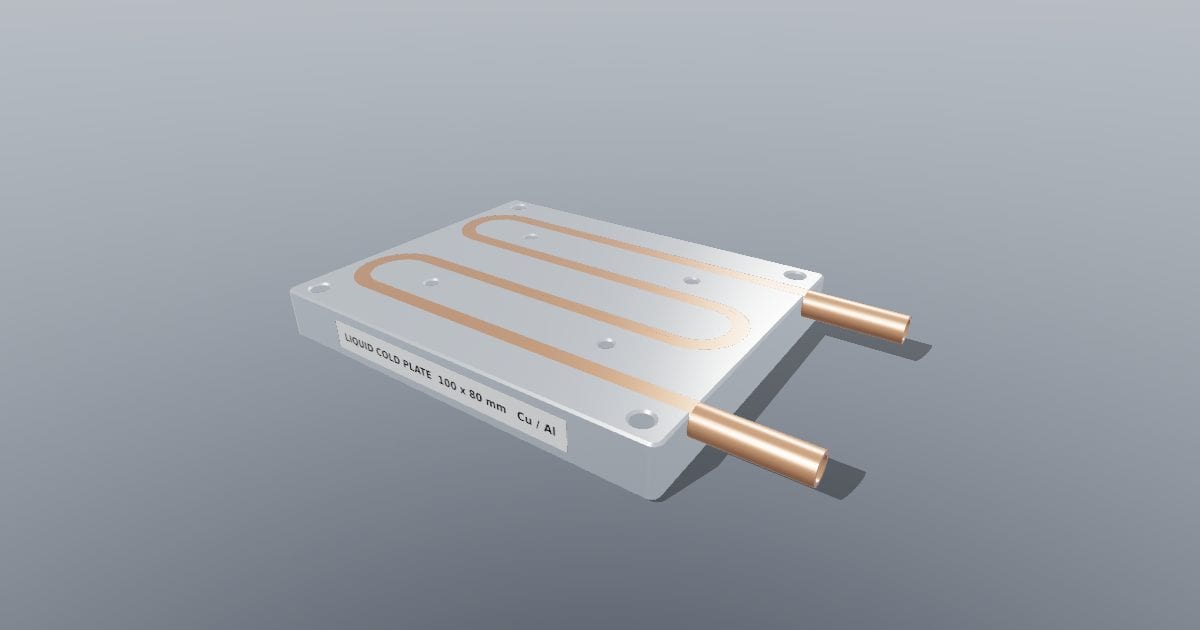

Liquid cooling cold plate 100 x 80 mm with copper tube
3D model · GLB · 573 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Liquid cooling cold plate 100 x 80 mm with copper tube. Overall 122.0 x 80.1 x 12.6 mm (X x Y x Z, Z up): liquid cooling cold plate: aluminium plate with a 6.35 mm copper tube in four passes pressed in and milled flush with the mounting face, two tube stubs on one side, mounting and M4 tapping holes. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 122 x 80 x 13 mm. Nominal size: 122.00 x 80.12 x 12.64 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: liquid-cooling-cold-plate-100-x-80-mm-with-copper-tube.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
