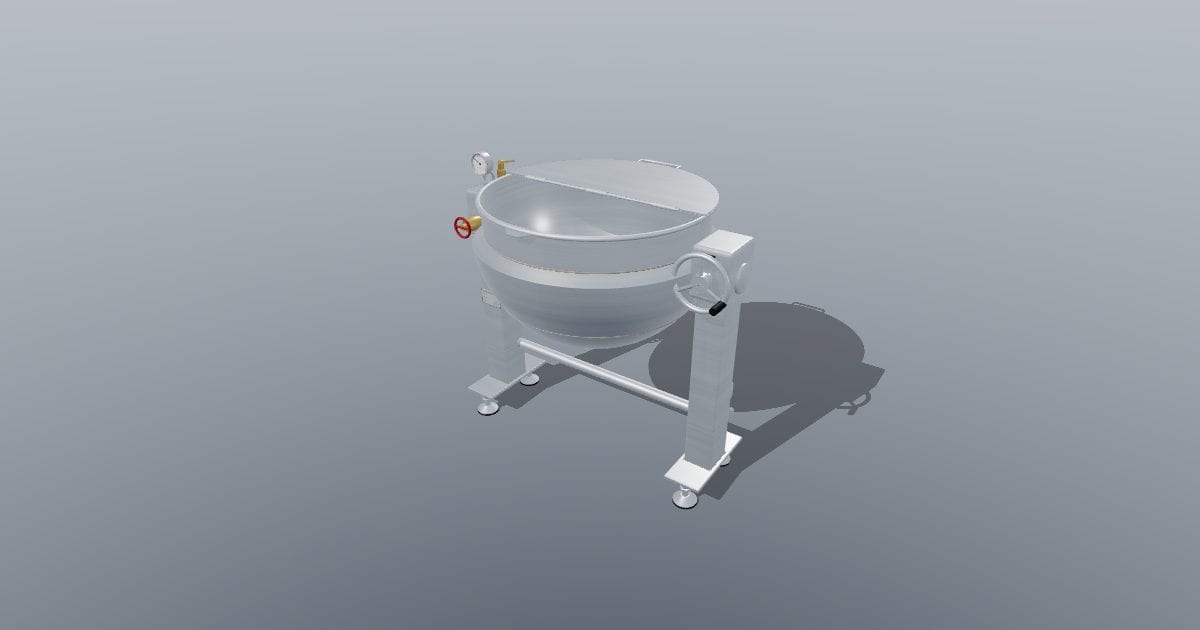

Jacketed stainless kettle, 150 L steam tilting
3D model · GLB · 7.7 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Jacketed stainless kettle, 150 L steam tilting. Overall 1081 x 830 x 1042 mm (X width x Y depth x Z height): steam jacketed tilting kettle (150 L): hemispherical stainless bowl with a two-thirds steam jacket, rolled rim and pouring lip, two-part lid with the front half folded back, trunnions in two pedestals, tilt handwheel with worm gear, steam valve, jacket pressure gauge and safety valve, condensate trap, adjustable feet. Original unbranded model. Overall 1081 x 830 x 1042 mm. Nominal size: 1080.50 x 829.77 x 1041.90 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: jacketed-stainless-kettle-150-l-steam-tilting.glb · added 2026-10-23 · available until 2030-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
