ISO 15552 tie-rod pneumatic cylinder 63 mm bore x 160 mm stroke
3D model · GLB · 1.5 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

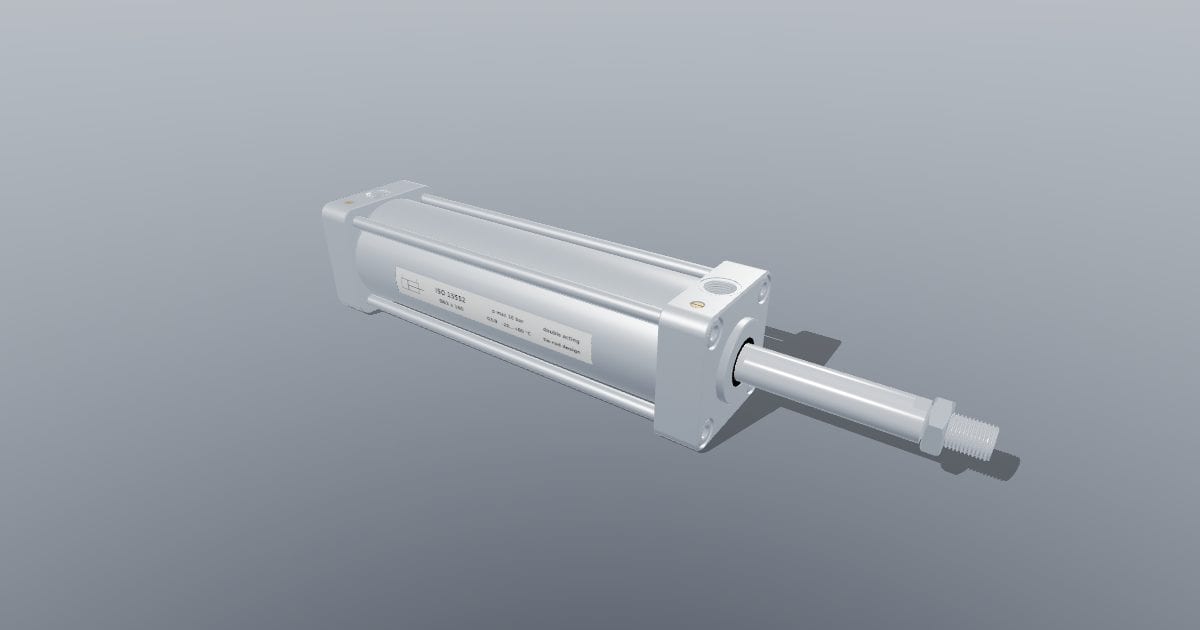

ISO 15552 tie-rod pneumatic cylinder 63 mm bore x 160 mm stroke. Overall 402.0 x 75.0 x 75.0 mm (X x Y x Z, Z up): ISO 15552 tie-rod cylinder: 75 mm end caps with recessed tie-rod nuts carrying M8 fixing threads on the 56.5 mm square, four tie rods, two G3/8 ports with real internal threads, cushioning screws, 20 mm chrome rod shown at half stroke with flats, real M16 x 1.5 thread and rod nut. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 402 x 75 x 75 mm. Nominal size: 402.00 x 75.00 x 75.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
