ISO 15552 pneumatic cylinder 32 mm bore x 100 mm stroke
3D model · GLB · 1.3 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

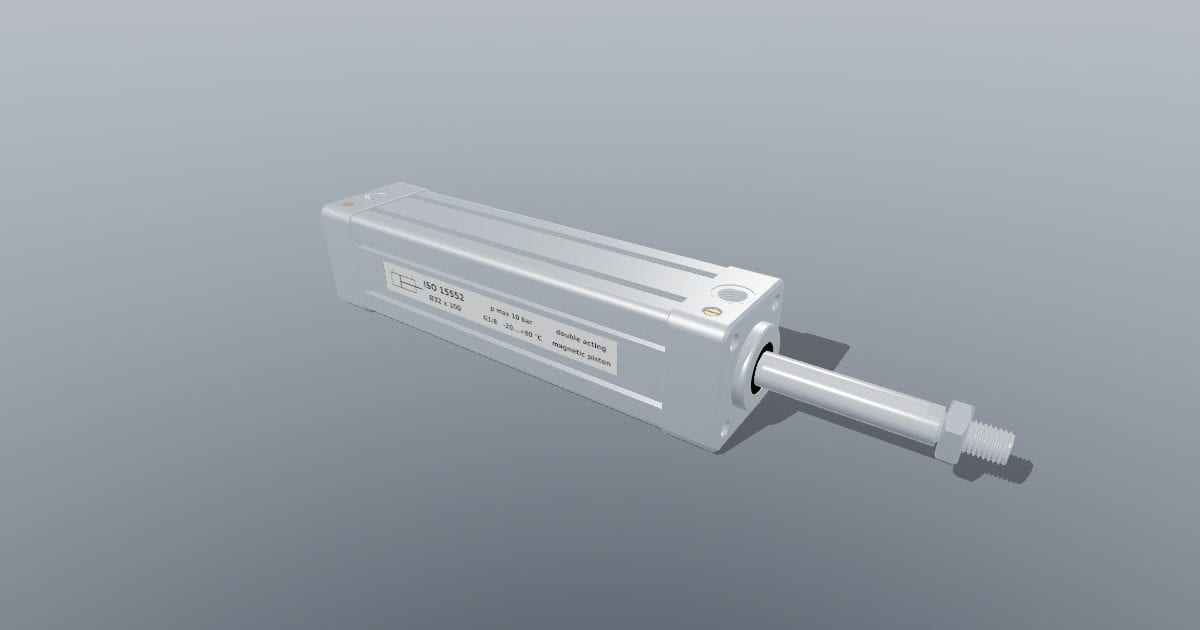

ISO 15552 pneumatic cylinder 32 mm bore x 100 mm stroke. Overall 274.0 x 47.0 x 47.0 mm (X x Y x Z, Z up): ISO 15552 profile-barrel cylinder: 47 mm end caps with M6 fixing threads on the 32.5 mm square, two G1/8 ports with real internal threads, brass cushioning screws, sensor slots, 12 mm chrome piston rod shown at half stroke with wrench flats, real M10 x 1.25 thread and rod nut. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 274 x 47 x 47 mm. Nominal size: 274.00 x 47.00 x 47.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
