Double-acting welded hydraulic cylinder with clevis ends, 63 mm bore
3D model · GLB · 1.4 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

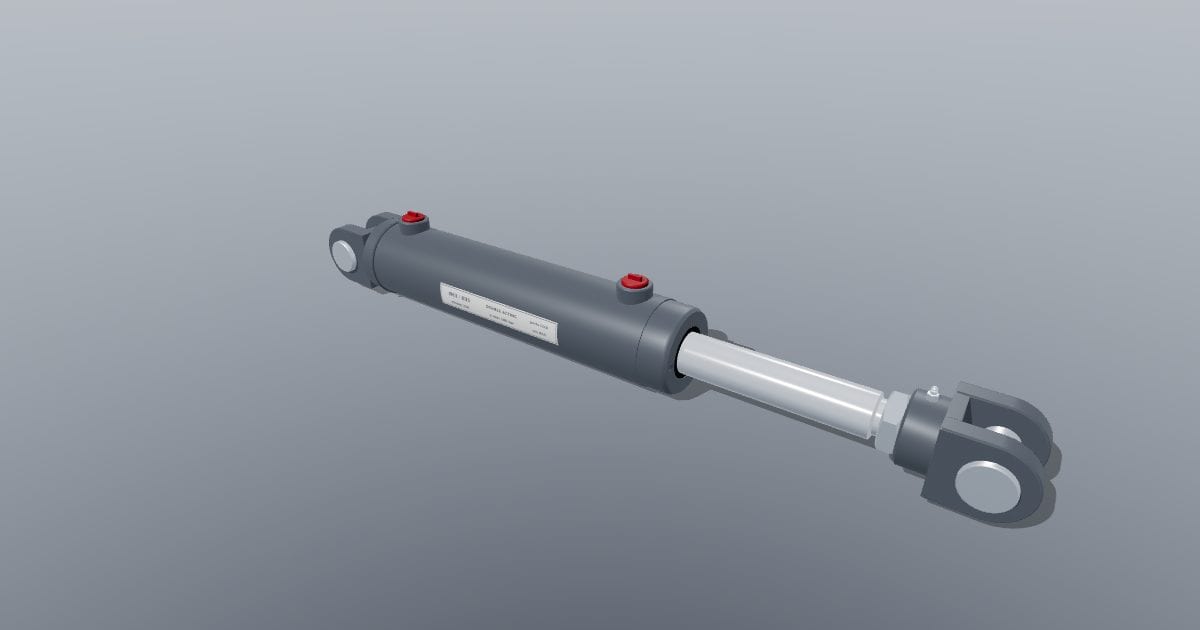

Double-acting welded hydraulic cylinder with clevis ends, 63 mm bore. Overall 674.0 x 80.6 x 94.3 mm (X x Y x Z, Z up): double-acting welded hydraulic cylinder: 76 mm barrel with welded rear clevis, two G3/8 port bosses with real internal threads and red dust plugs, screwed gland with wiper, 35 mm chrome rod shown at half stroke, jam nut, rod clevis with grease nipple, 25 mm pins with washers and split pins. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 674 x 81 x 94 mm. Nominal size: 673.96 x 80.56 x 94.25 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: double-acting-welded-hydraulic-cylinder-with-clevis-ends-63-.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
