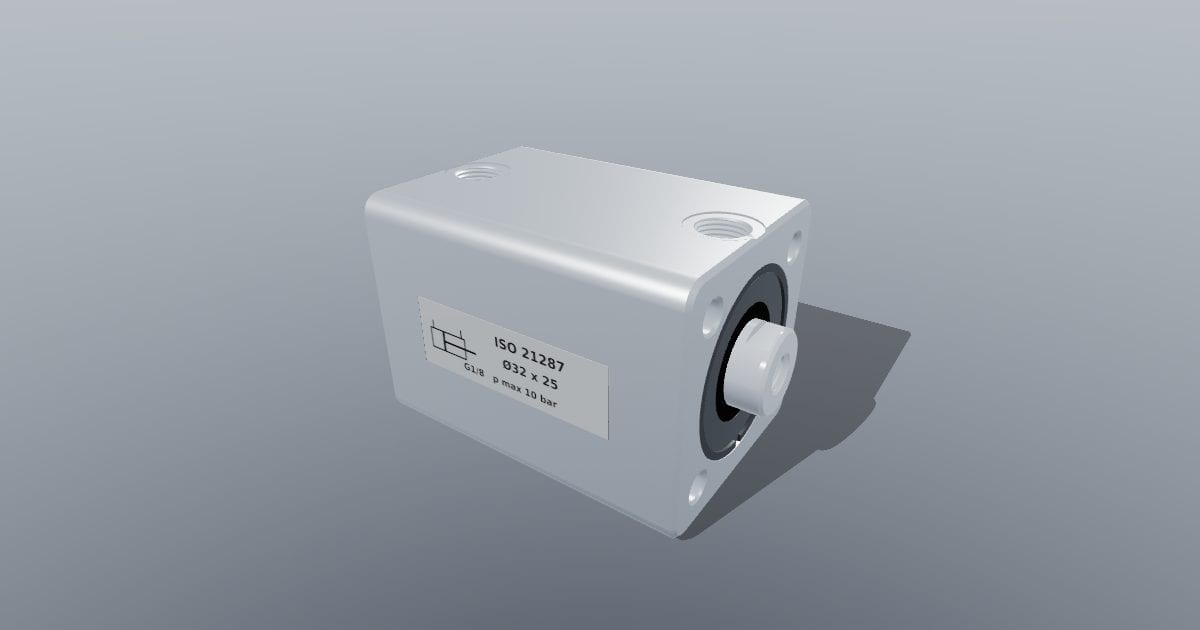

Compact pneumatic cylinder 32 mm bore x 25 mm stroke (ISO 21287)
3D model · GLB · 1.0 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Compact pneumatic cylinder 32 mm bore x 25 mm stroke (ISO 21287). Overall 75.0 x 48.2 x 48.0 mm (X x Y x Z, Z up): compact short-stroke cylinder: 48 mm square body 69 mm long, two G1/8 ports with real internal threads, four through holes on the 32.5 mm square, end covers with retaining rings, 16 mm rod shown retracted with flats and a real M8 female thread. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 75 x 48 x 48 mm. Nominal size: 75.00 x 48.15 x 48.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: compact-pneumatic-cylinder-32-mm-bore-x-25-mm-stroke-iso-212.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
