5/2 single-solenoid pneumatic valve, G1/4, 24 V DC
3D model · GLB · 1.5 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

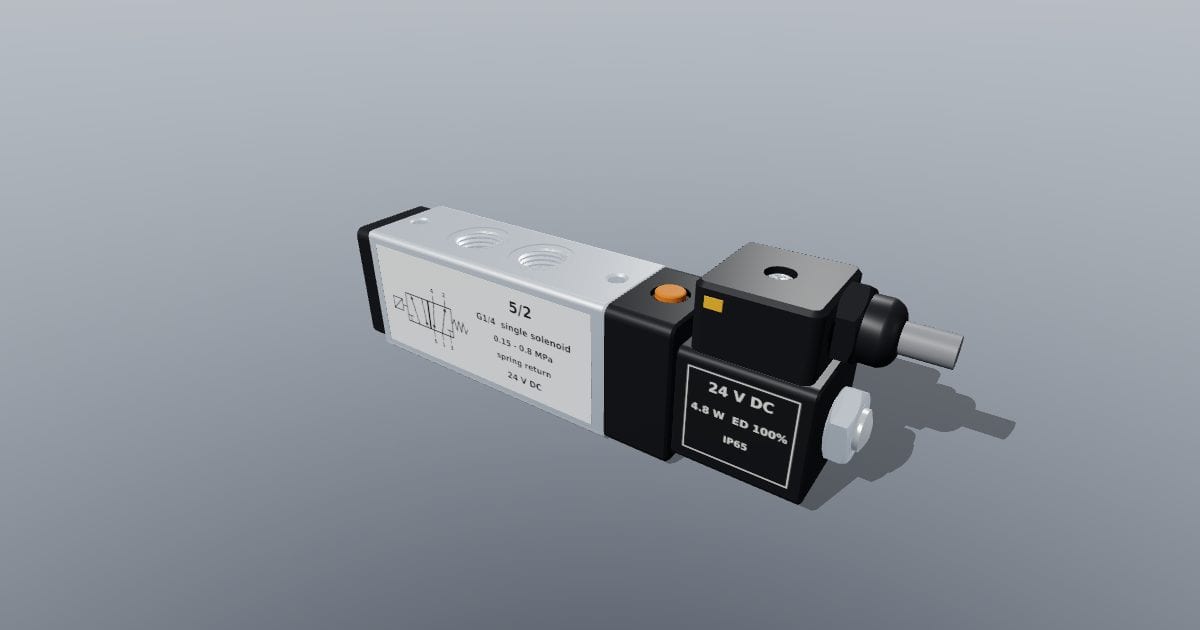

5/2 single-solenoid pneumatic valve, G1/4, 24 V DC. Overall 155.7 x 28.2 x 49.4 mm (X x Y x Z, Z up): inline 5/2 directional valve: aluminium body with five G1/4 ports (real internal threads), spring end cap, pilot head with orange manual override, 24 V DC coil with retaining nut, plug connector with status lens, cable gland and cable stub, printed valve symbol. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 156 x 28 x 49 mm. Nominal size: 155.73 x 28.15 x 49.41 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
