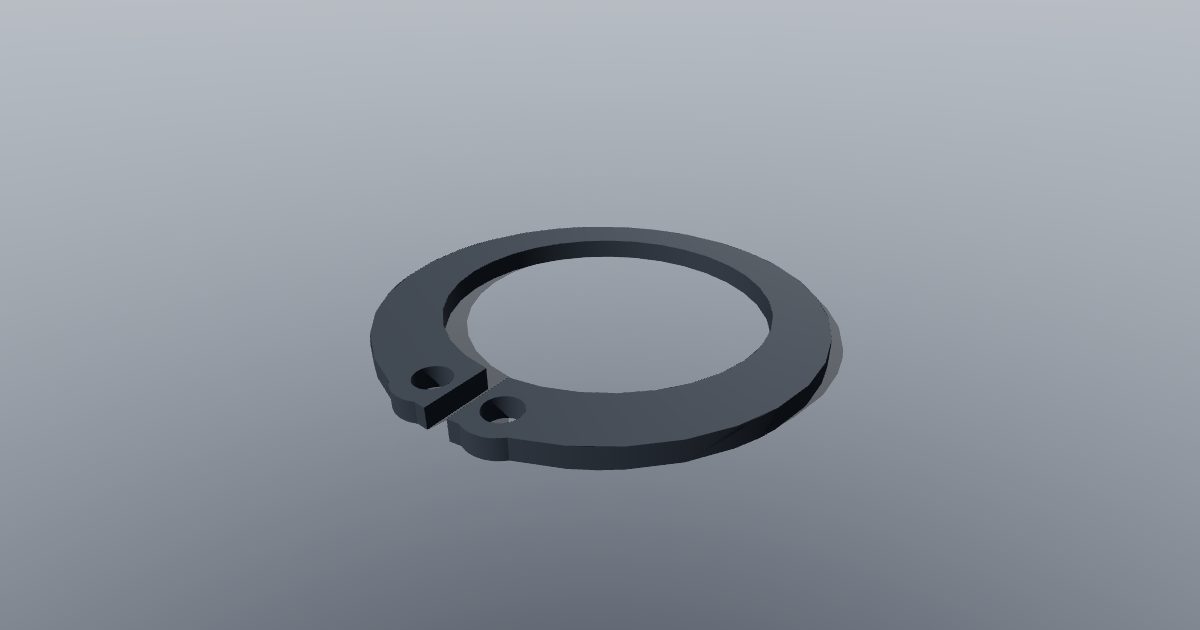

DIN 471 external circlip 20 mm
DIN 471 external circlip 20 mm, modeled from published dimensions. Overall 25 x 25.1 x 1.2 mm. Key dimensions: nominal shaft 20 mm; free diameter 18.5 mm; thickness 1.2 mm; crown radial width 2.6 mm; pliers hole diameter 2 mm; mating groove diameter 19 mm; mating groove width 1.3 mm; condition Free / uninstalled. Free-state diameter, thickness, crown width and pliers holes follow the cited table. The ring must deform for installation; the separate groove dimensions describe its mating feature. Ring outline, end-gap width and lug shape are representative; the source explicitly permits manufacturer-dependent outlines. No elastic or load-capacity simulation is assigned. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
46 KBDetails & download
stepRotate in 3D
DIN 471 external circlip 16 mm
DIN 471 external circlip 16 mm, modeled from published dimensions. Overall 20.2 x 20.6 x 1 mm. Key dimensions: nominal shaft 16 mm; free diameter 14.7 mm; thickness 1 mm; crown radial width 2.2 mm; pliers hole diameter 1.7 mm; mating groove diameter 15.2 mm; mating groove width 1.1 mm; condition Free / uninstalled. Free-state diameter, thickness, crown width and pliers holes follow the cited table. The ring must deform for installation; the separate groove dimensions describe its mating feature. Ring outline, end-gap width and lug shape are representative; the source explicitly permits manufacturer-dependent outlines. No elastic or load-capacity simulation is assigned. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
46 KBDetails & download
stepRotate in 3D

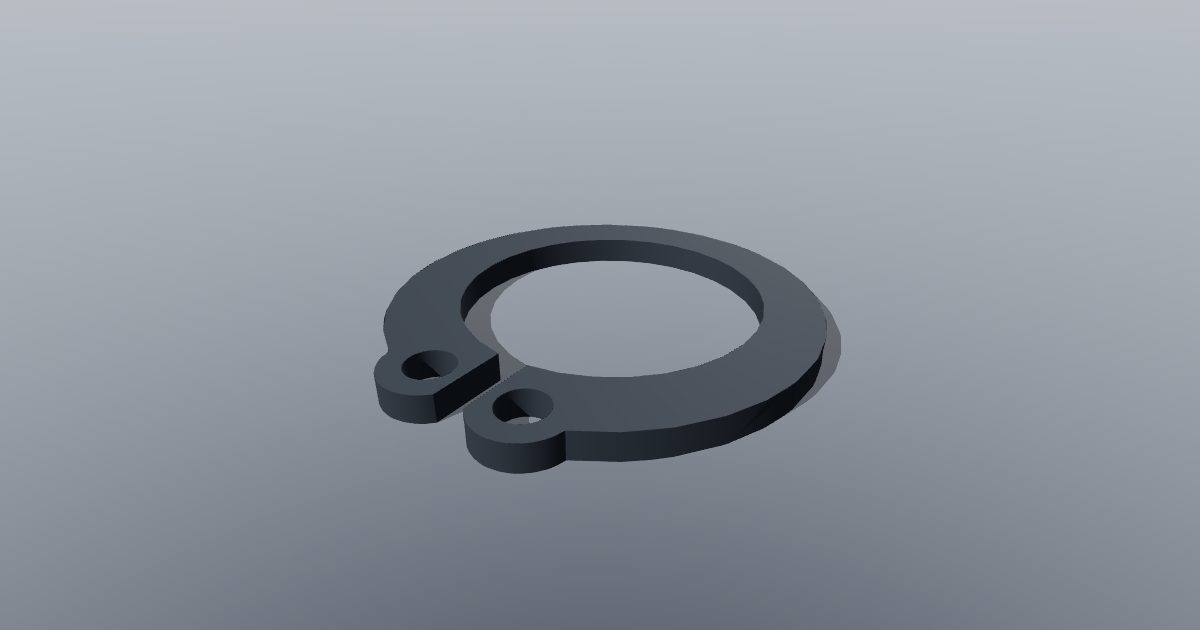

DIN 471 external circlip 12 mm
DIN 471 external circlip 12 mm, modeled from published dimensions. Overall 15.5 x 16.1 x 1 mm. Key dimensions: nominal shaft 12 mm; free diameter 11 mm; thickness 1 mm; crown radial width 1.8 mm; pliers hole diameter 1.7 mm; mating groove diameter 11.5 mm; mating groove width 1.1 mm; condition Free / uninstalled. Free-state diameter, thickness, crown width and pliers holes follow the cited table. The ring must deform for installation; the separate groove dimensions describe its mating feature. Ring outline, end-gap width and lug shape are representative; the source explicitly permits manufacturer-dependent outlines. No elastic or load-capacity simulation is assigned. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
37 KBDetails & download
stepRotate in 3D
DIN 471 external circlip 10 mm
DIN 471 external circlip 10 mm, modeled from published dimensions. Overall 13.8 x 14.4 x 1 mm. Key dimensions: nominal shaft 10 mm; free diameter 9.3 mm; thickness 1 mm; crown radial width 1.8 mm; pliers hole diameter 1.5 mm; mating groove diameter 9.6 mm; mating groove width 1.1 mm; condition Free / uninstalled. Free-state diameter, thickness, crown width and pliers holes follow the cited table. The ring must deform for installation; the separate groove dimensions describe its mating feature. Ring outline, end-gap width and lug shape are representative; the source explicitly permits manufacturer-dependent outlines. No elastic or load-capacity simulation is assigned. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
37 KBDetails & download
stepM8Rotate in 3D

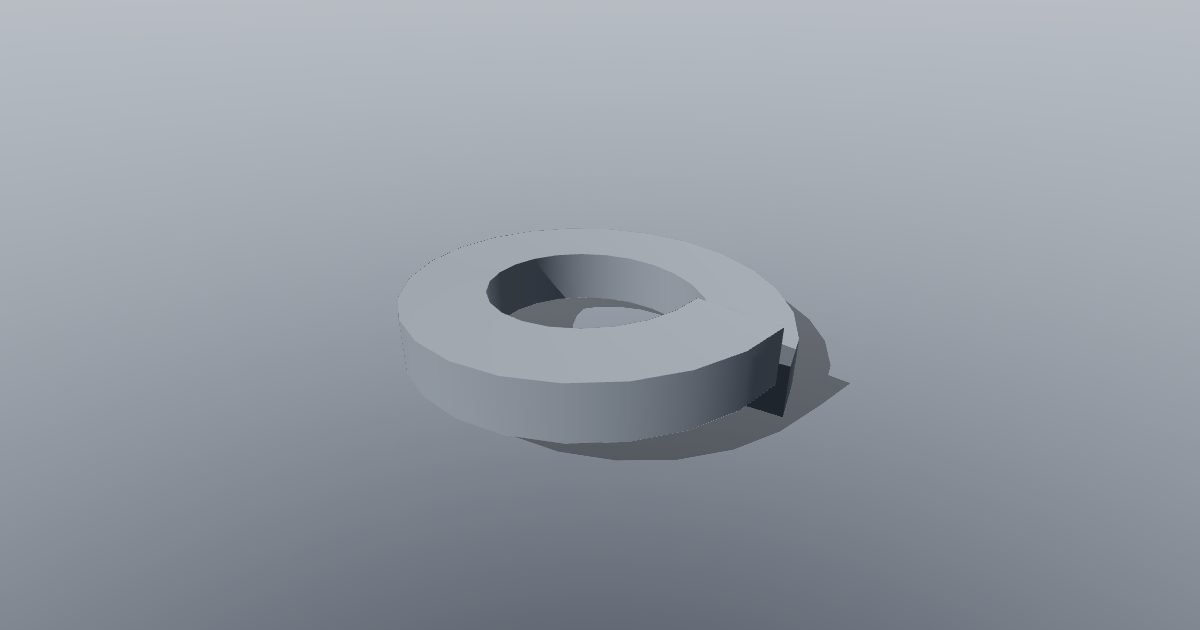

Split spring washer M8
Split spring washer M8, modeled from published dimensions. Overall 14.1 x 14.1 x 4 mm. Key dimensions: for thread 8 mm; inside diameter 8.1 mm; radial width 3 mm; section thickness 2 mm; free height 4 mm; split angle degrees 10. DIN 127 B nominal section width/thickness and minimum bore/free height. Uncompressed helical form; end gap is a representative 10 degrees. No spring or locking-performance simulation is implied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
41 KBDetails & download
stepM6Rotate in 3D

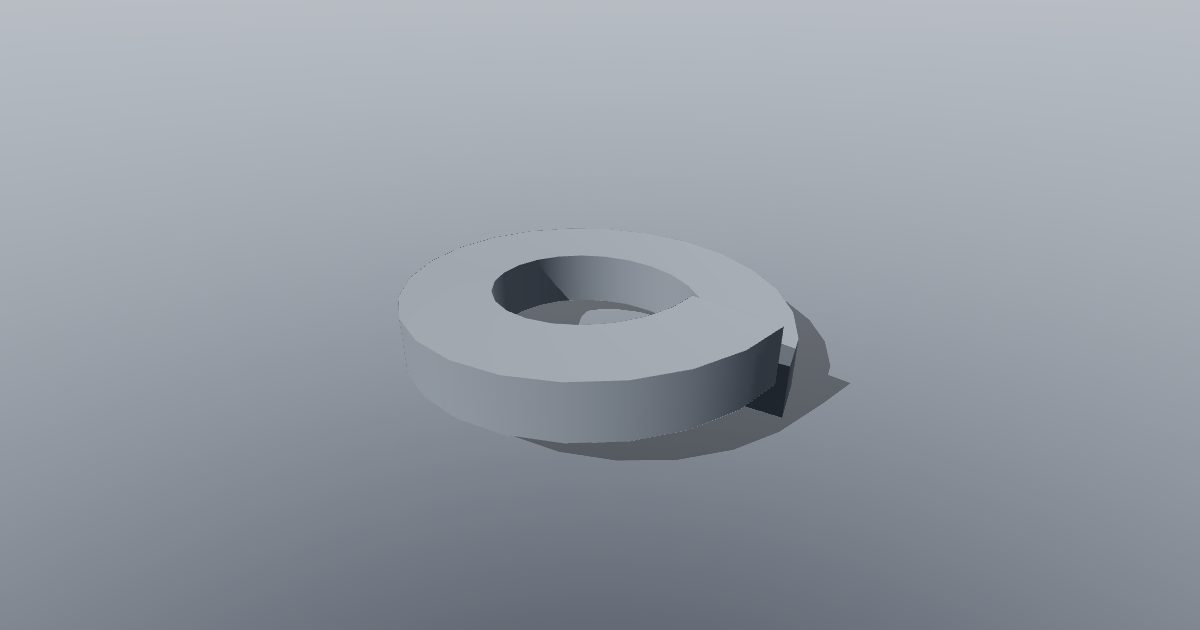

Split spring washer M6
Split spring washer M6, modeled from published dimensions. Overall 11.1 x 11.1 x 3.2 mm. Key dimensions: for thread 6 mm; inside diameter 6.1 mm; radial width 2.5 mm; section thickness 1.6 mm; free height 3.2 mm; split angle degrees 10. DIN 127 B nominal section width/thickness and minimum bore/free height. Uncompressed helical form; end gap is a representative 10 degrees. No spring or locking-performance simulation is implied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
42 KBDetails & download
stepM5Rotate in 3D
Split spring washer M5
Split spring washer M5, modeled from published dimensions. Overall 8.7 x 8.7 x 2.4 mm. Key dimensions: for thread 5 mm; inside diameter 5.1 mm; radial width 1.8 mm; section thickness 1.2 mm; free height 2.4 mm; split angle degrees 10. DIN 127 B nominal section width/thickness and minimum bore/free height. Uncompressed helical form; end gap is a representative 10 degrees. No spring or locking-performance simulation is implied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
40 KBDetails & download
stepM4Rotate in 3D

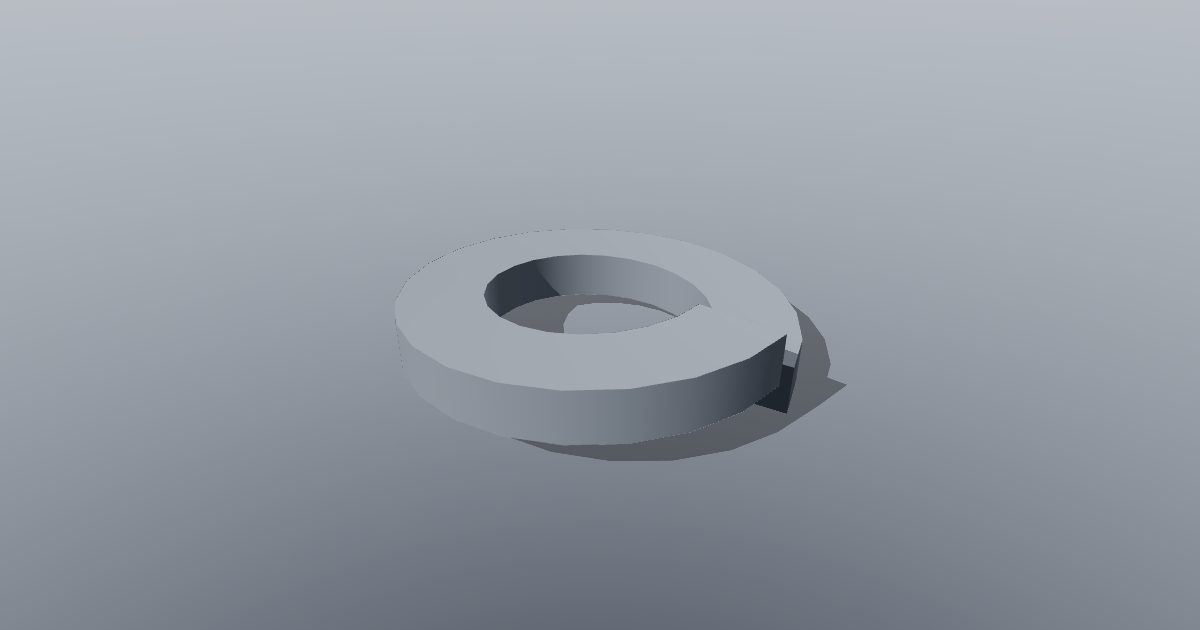

Split spring washer M4
Split spring washer M4, modeled from published dimensions. Overall 7.1 x 7.1 x 1.8 mm. Key dimensions: for thread 4 mm; inside diameter 4.1 mm; radial width 1.5 mm; section thickness 0.9 mm; free height 1.8 mm; split angle degrees 10. DIN 127 B nominal section width/thickness and minimum bore/free height. Uncompressed helical form; end gap is a representative 10 degrees. No spring or locking-performance simulation is implied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
39 KBDetails & download
stepM3Rotate in 3D
Split spring washer M3
Split spring washer M3, modeled from published dimensions. Overall 5.7 x 5.7 x 1.6 mm. Key dimensions: for thread 3 mm; inside diameter 3.1 mm; radial width 1.3 mm; section thickness 0.8 mm; free height 1.6 mm; split angle degrees 10. DIN 127 B nominal section width/thickness and minimum bore/free height. Uncompressed helical form; end gap is a representative 10 degrees. No spring or locking-performance simulation is implied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
41 KBDetails & download
stepM12Rotate in 3D

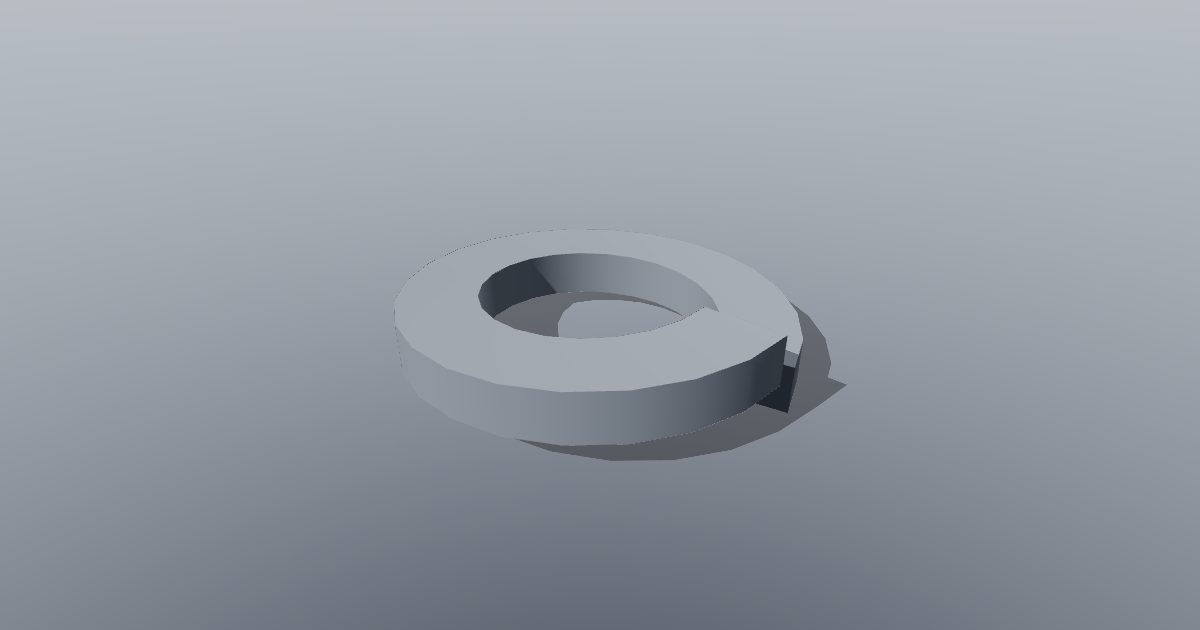

Split spring washer M12
Split spring washer M12, modeled from published dimensions. Overall 20.2 x 20.2 x 5 mm. Key dimensions: for thread 12 mm; inside diameter 12.2 mm; radial width 4 mm; section thickness 2.5 mm; free height 5 mm; split angle degrees 10. DIN 127 B nominal section width/thickness and minimum bore/free height. Uncompressed helical form; end gap is a representative 10 degrees. No spring or locking-performance simulation is implied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
41 KBDetails & download
stepM10Rotate in 3D
Split spring washer M10
Split spring washer M10, modeled from published dimensions. Overall 17.2 x 17.2 x 4.4 mm. Key dimensions: for thread 10 mm; inside diameter 10.2 mm; radial width 3.5 mm; section thickness 2.2 mm; free height 4.4 mm; split angle degrees 10. DIN 127 B nominal section width/thickness and minimum bore/free height. Uncompressed helical form; end gap is a representative 10 degrees. No spring or locking-performance simulation is implied. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
41 KBDetails & download
stepM8Rotate in 3D

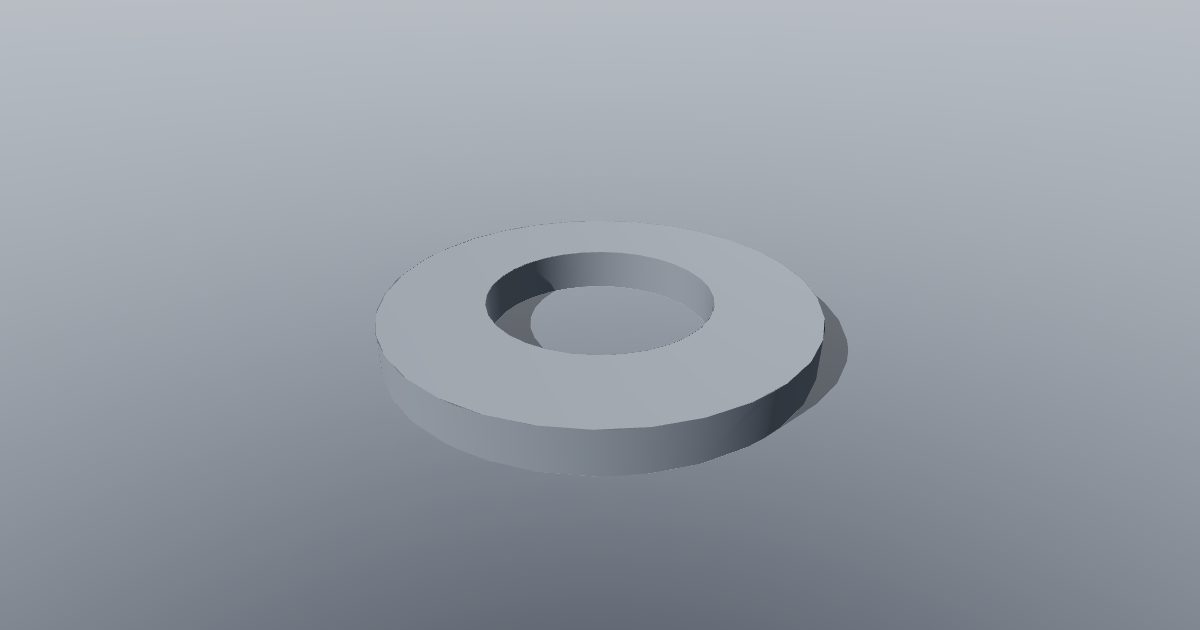

Flat washer M8
Flat washer M8, modeled from published dimensions. Overall 16 x 16 x 1.6 mm. Key dimensions: for thread 8 mm; bore diameter 8.4 mm; outside diameter 16 mm; thickness 1.6 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM6Rotate in 3D

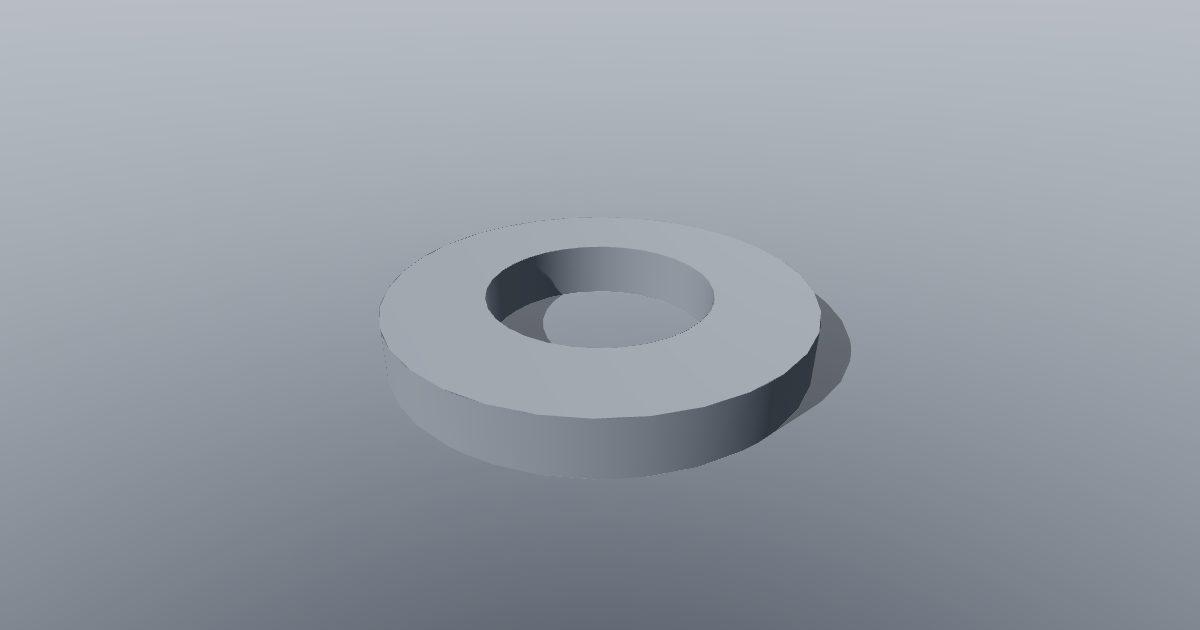

Flat washer M6
Flat washer M6, modeled from published dimensions. Overall 12 x 12 x 1.6 mm. Key dimensions: for thread 6 mm; bore diameter 6.4 mm; outside diameter 12 mm; thickness 1.6 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM5Rotate in 3D
Flat washer M5
Flat washer M5, modeled from published dimensions. Overall 10 x 10 x 1 mm. Key dimensions: for thread 5 mm; bore diameter 5.3 mm; outside diameter 10 mm; thickness 1 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM4Rotate in 3D

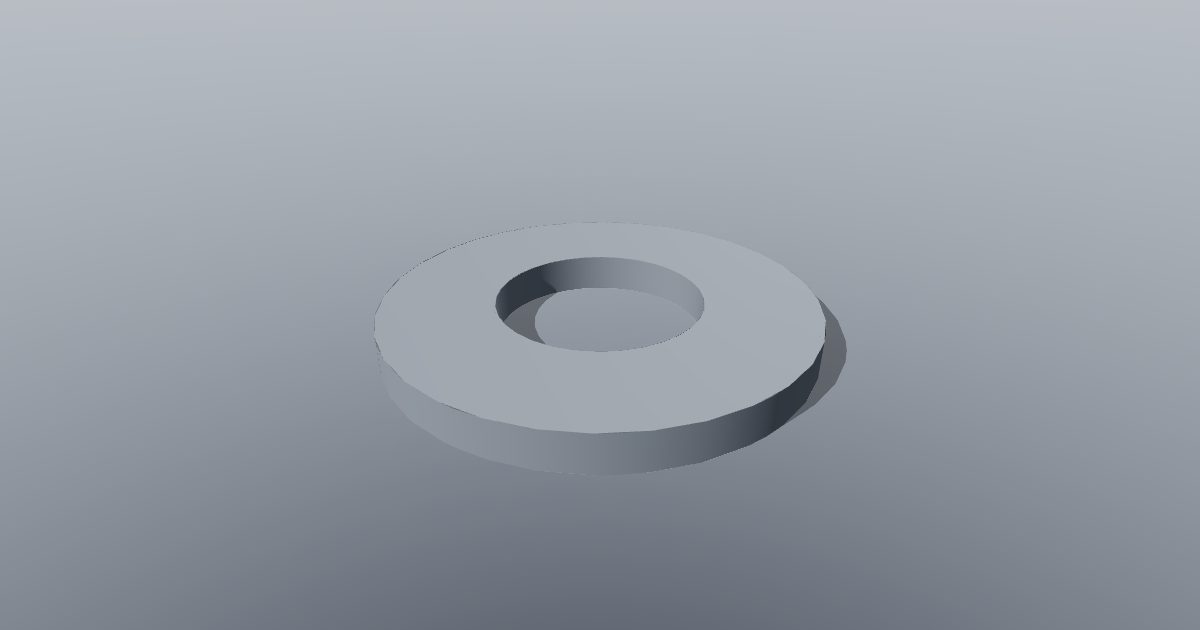

Flat washer M4
Flat washer M4, modeled from published dimensions. Overall 9 x 9 x 0.8 mm. Key dimensions: for thread 4 mm; bore diameter 4.3 mm; outside diameter 9 mm; thickness 0.8 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM3Rotate in 3D

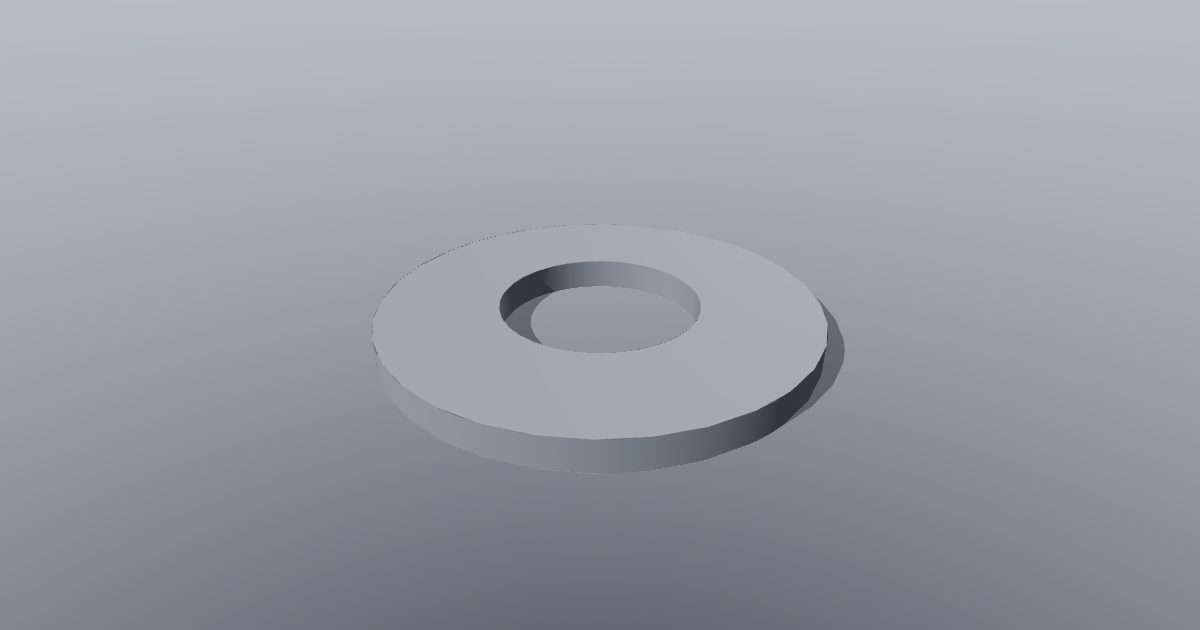

Flat washer M3
Flat washer M3, modeled from published dimensions. Overall 7 x 7 x 0.5 mm. Key dimensions: for thread 3 mm; bore diameter 3.2 mm; outside diameter 7 mm; thickness 0.5 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM20Rotate in 3D

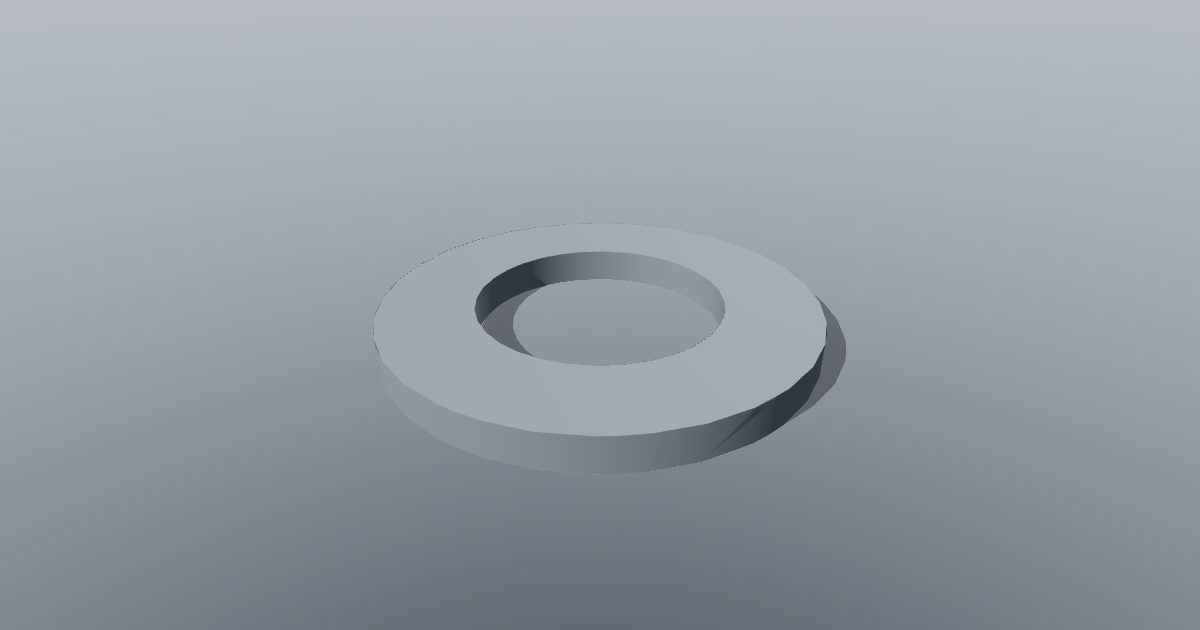

Flat washer M20
Flat washer M20, modeled from published dimensions. Overall 37 x 37 x 3 mm. Key dimensions: for thread 20 mm; bore diameter 21 mm; outside diameter 37 mm; thickness 3 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM16Rotate in 3D

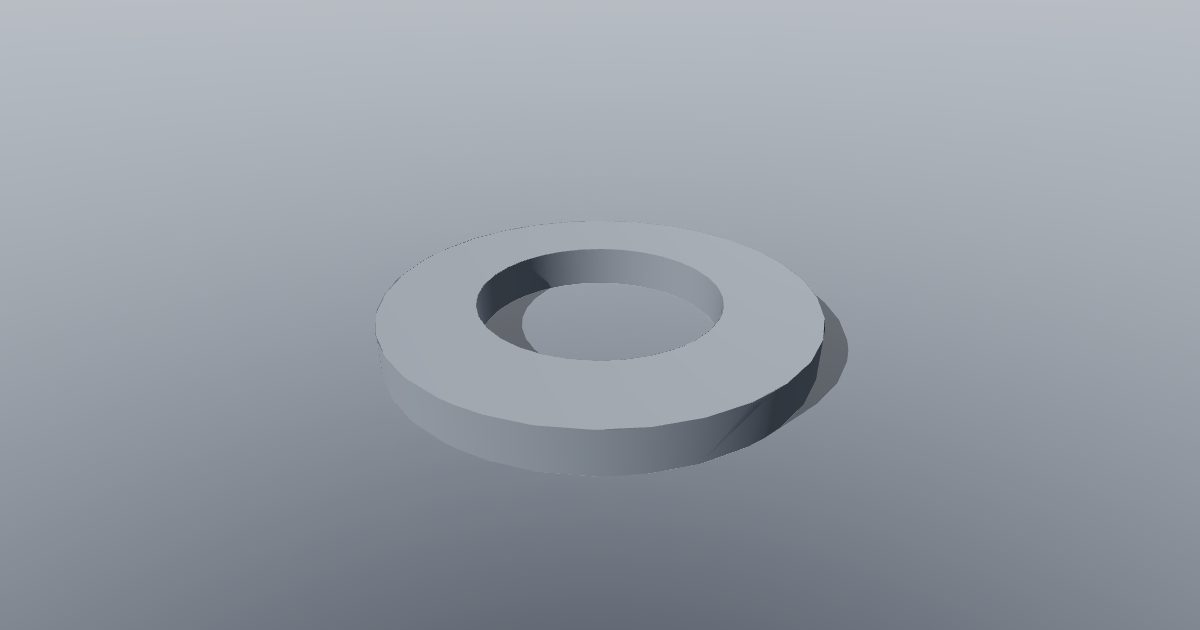

Flat washer M16
Flat washer M16, modeled from published dimensions. Overall 30 x 30 x 3 mm. Key dimensions: for thread 16 mm; bore diameter 17 mm; outside diameter 30 mm; thickness 3 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM12Rotate in 3D
Flat washer M12
Flat washer M12, modeled from published dimensions. Overall 24 x 24 x 2.5 mm. Key dimensions: for thread 12 mm; bore diameter 13 mm; outside diameter 24 mm; thickness 2.5 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
stepM10Rotate in 3D
Flat washer M10
Flat washer M10, modeled from published dimensions. Overall 20 x 20 x 2 mm. Key dimensions: for thread 10 mm; bore diameter 10.5 mm; outside diameter 20 mm; thickness 2 mm. DIN 125 A nominal washer dimensions; straight edges, with no type-B chamfer. Exact solid STEP geometry in millimeters, opens in any CAD system. Export to STL, OBJ, GLB and other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
11 KBDetails & download
