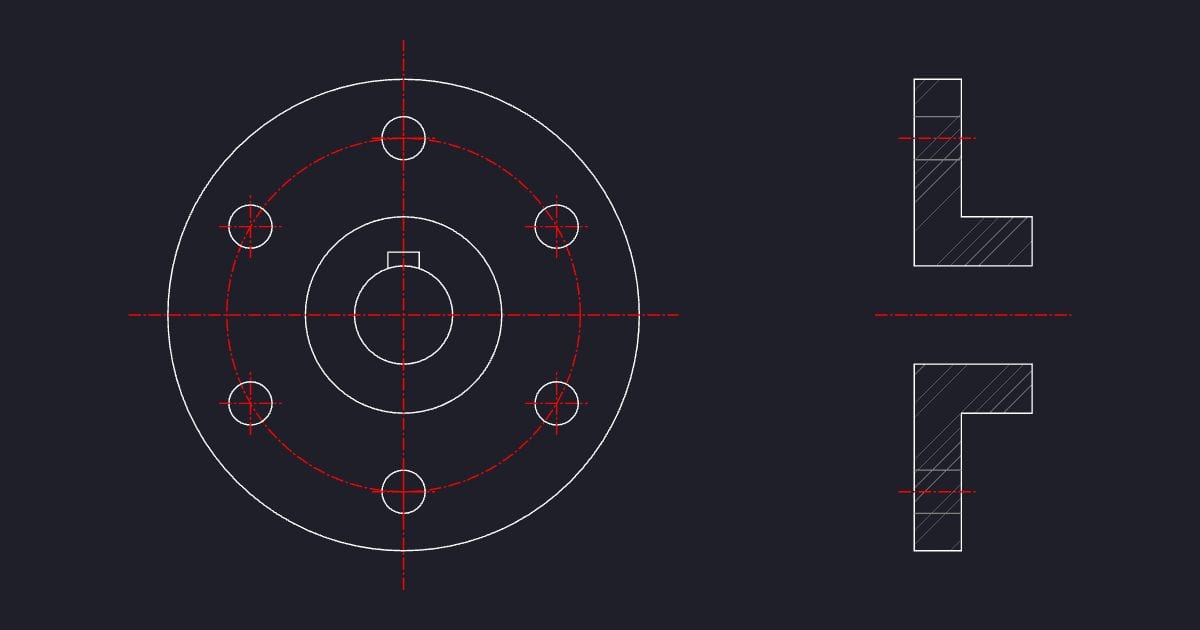

Hub flange drawing (dimensioned)
2D drawing · DXF · 60 KB
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: Innerscene
Description
Hub flange drawing (dimensioned): a AutoCAD DXF (.dxf) sample file from the Innerscene 3D Viewer's Samples menu. Source: Authored by Innerscene (public/samples/SOURCES.md). License: Innerscene.
Architecture & BIMMechanicalautocad dxfdxfsample fileflangespipefittingtechnical drawingcaddetaildimensionsmechanicalpartmachining
File: innerscene-flange-drawing.dxf · added 2026-10-01. Added from Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
