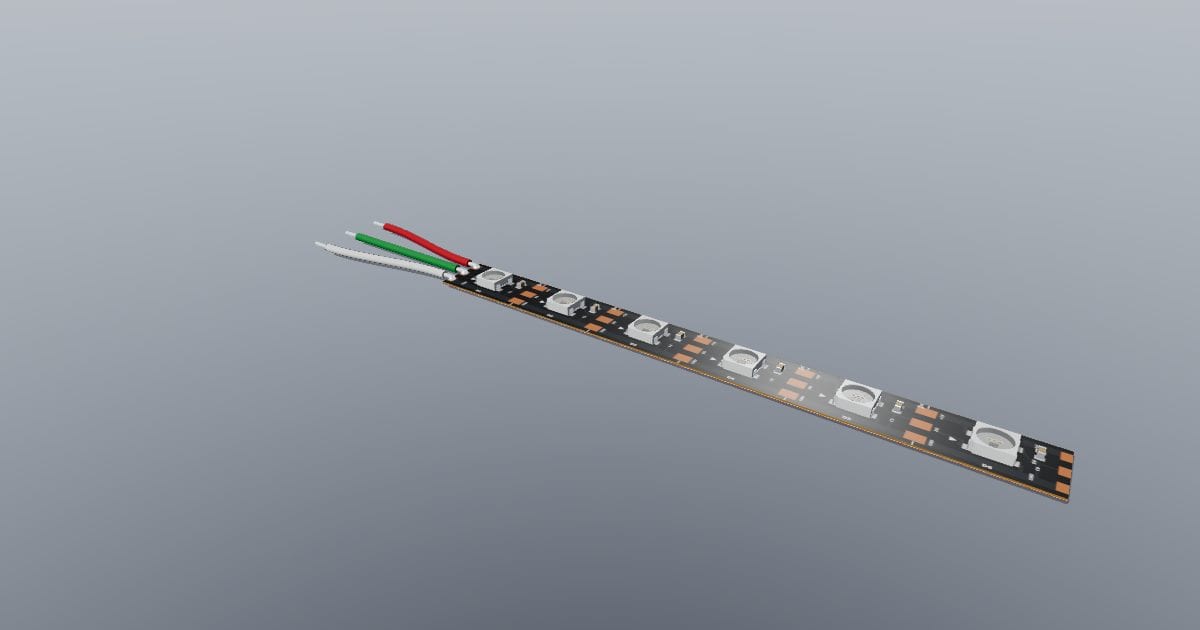

WS2812B addressable LED strip segment, 6 LEDs at 60/m with input leads
3D model · GLB · 900 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
WS2812B addressable LED strip segment, 6 LEDs at 60/m with input leads. Overall 135.2 x 16.5 x 2.0 mm (X x Y x Z, Z up): six 5050 addressable RGB LEDs at 16.67 mm pitch (60 per metre) on a 10 mm black flexible circuit with adhesive tape and liner, 0603 capacitors, exposed copper cut pads with +5V / DI / DO / GND marks, three tinned input leads (red 5 V, green data, white GND). Original unbranded model; printed markings and ratings are generic, not a certification. Overall 135 x 17 x 2 mm. Nominal size: 135.20 x 16.53 x 2.02 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: ws2812b-addressable-led-strip-segment-6-leds-at-60-m-with-in.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
