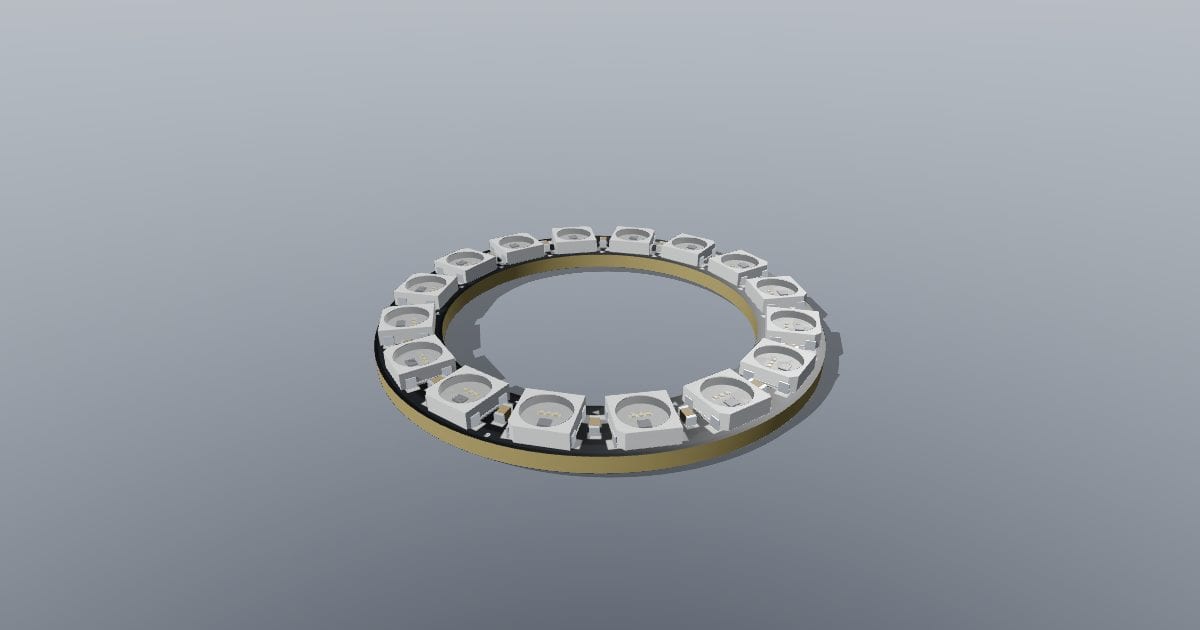

WS2812B 16-LED addressable ring, 44.5 mm
3D model · GLB · 1.2 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
WS2812B 16-LED addressable ring, 44.5 mm. Overall 44.5 x 44.5 x 3.2 mm (X x Y x Z, Z up): sixteen 5050 addressable RGB LEDs on a black 44.5 / 31.75 mm ring board with decoupling capacitors between pixels and gold 5V / GND / DI / DO pads on the back. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 44 x 44 x 3 mm. Nominal size: 44.49 x 44.50 x 3.20 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: ws2812b-16-led-addressable-ring-44-5-mm.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
