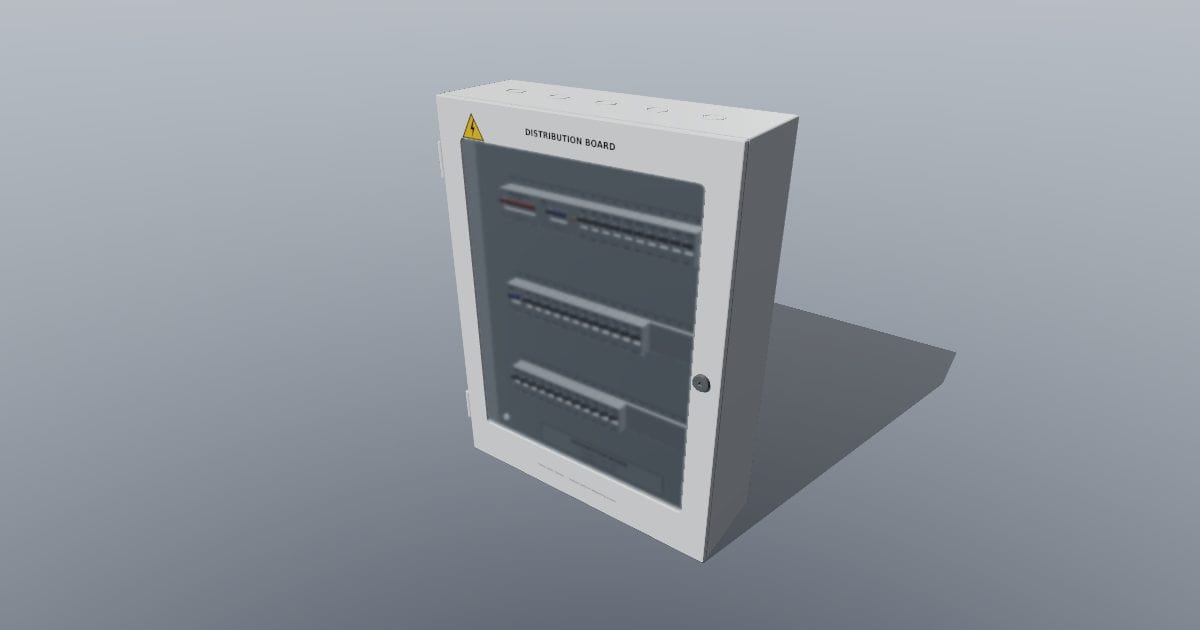

Wall-mounted distribution board with breakersOpen in 3D

Wall-mounted distribution board with breakers

3D model · GLB · 1.9 MB

Open in 3D viewerDownload GLB

Need another format? Open it in the viewer and use Export.

Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0

Source: Innerscene - original model

Description

Wall-mounted distribution board with breakers. Overall 458.4 x 156.0 x 601.0 mm (width x depth x height, including handles, terminals and clips): wall-mounted steel distribution board with three TH35 rails (54 modules): main switch, 4P and 2P RCDs, single and three-pole MCBs and blanking strips behind a cover plate, hinged door with clear window shown closed. Original unbranded model; printed ratings are generic, not a certification. Overall 458 x 156 x 601 mm. Nominal size: 458.45 x 156.00 x 601.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

Electronics & PCBReal-world scaleTextured / materialsAssemblyminiature circuit breakermcbrcdrcbomccbcircuit breakerfuseisolator switchswitchgeardistribution boardsconsumer unitfuse boxbreaker boxbreaker panelelectrical panelpanelboardelectrical

File: wall-mounted-distribution-board-with-breakers.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
