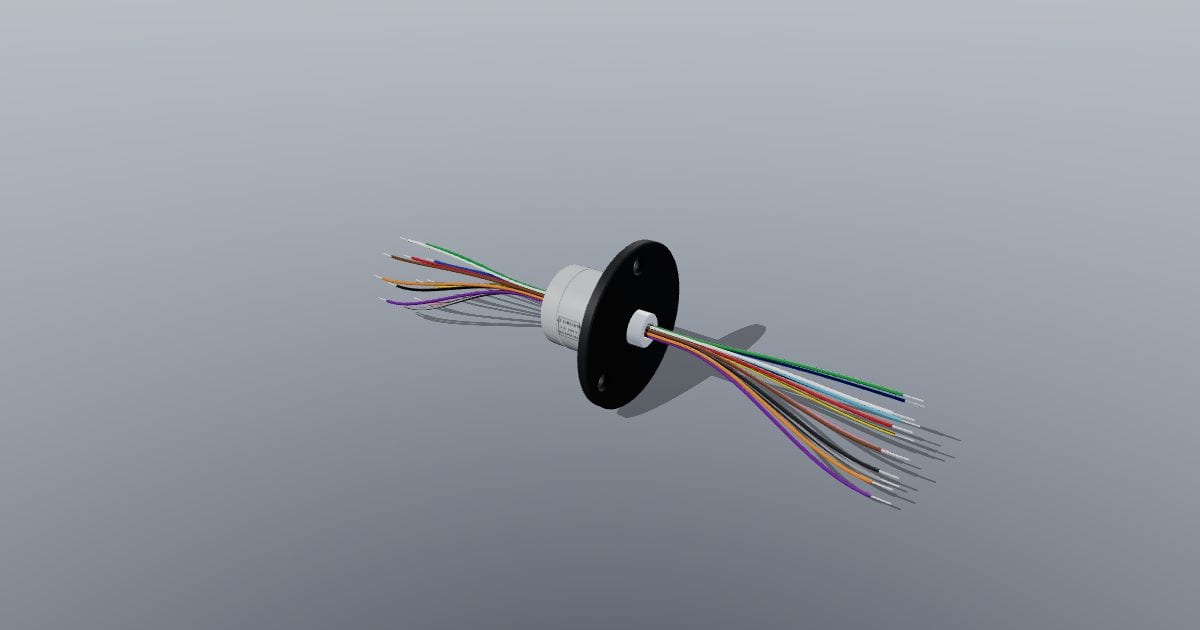

Twelve-wire capsule slip ring, 22 mm with 44 mm flange
3D model · GLB · 1.3 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Twelve-wire capsule slip ring, 22 mm with 44 mm flange. Overall 157.0 x 44.0 x 44.0 mm (X x Y x Z, Z up): 22 mm capsule housing with printed label, 44 mm flange with three 5 mm holes, rotating collar and twelve colour-coded leads on each side with stripped tinned ends. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 157 x 44 x 44 mm. Nominal size: 157.00 x 43.96 x 44.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: twelve-wire-capsule-slip-ring-22-mm-with-44-mm-flange.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
