Three-pole MCCB 160 A frame with rotary handle
3D model · GLB · 636 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

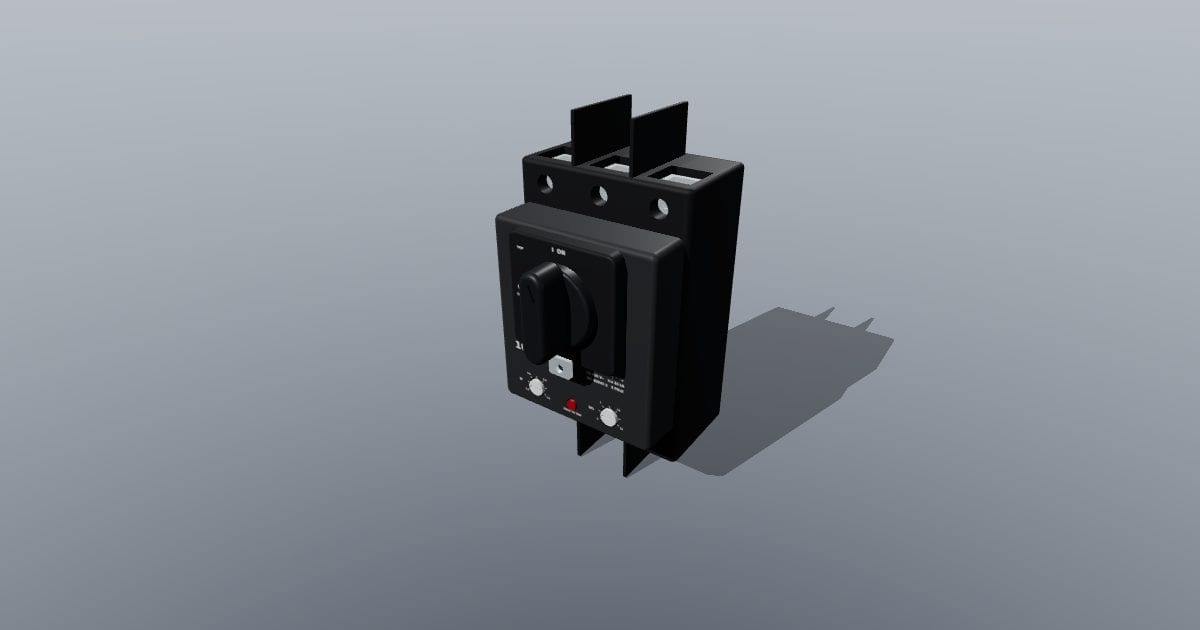

Three-pole MCCB 160 A frame with rotary handle. Overall 105.0 x 118.2 x 217.0 mm (width x depth x height, including handles, terminals and clips): three-pole moulded-case circuit breaker, 160 A frame, direct rotary handle shown ON with padlock hasp, Ir and Im setting dials, push-to-trip button, tunnel lugs with hex socket screws and interphase barriers. Original unbranded model; printed ratings are generic, not a certification. Overall 105 x 118 x 217 mm. Nominal size: 105.00 x 118.20 x 217.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
