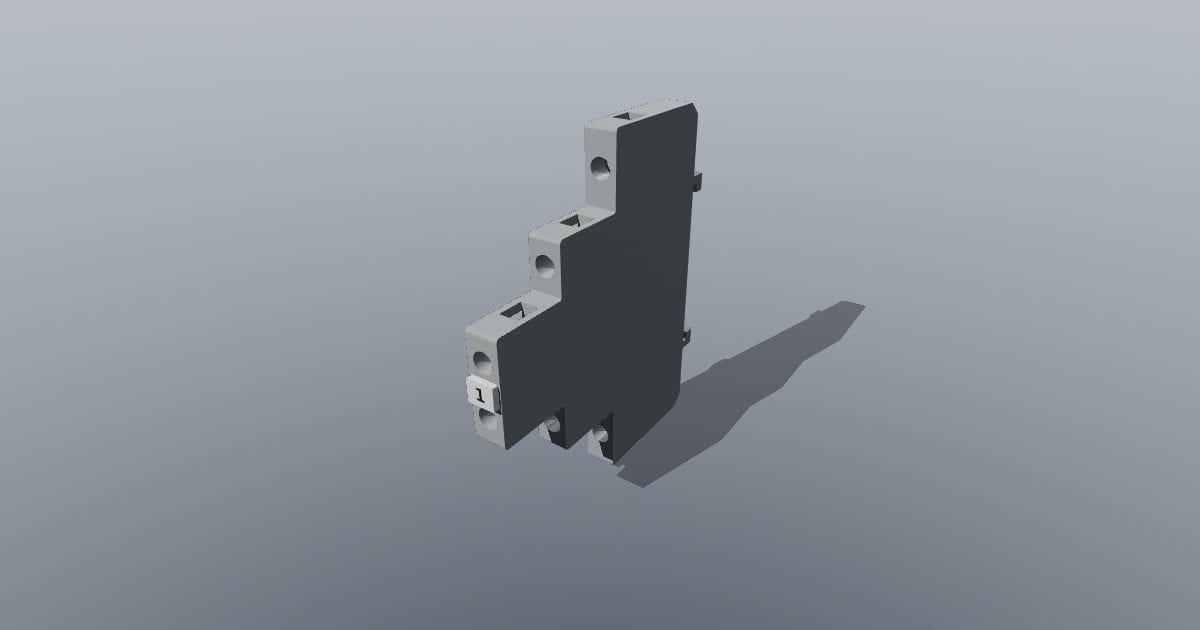

Three-level DIN-rail screw terminal block
3D model · GLB · 326 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Three-level DIN-rail screw terminal block. Overall 6.2 x 62.2 x 68.0 mm (width x depth x height, including handles, terminals and clips): 6.2 mm three-level feed-through screw terminal block with six clamping points on stepped levels, cage clamps, marker tag and TH35 rail foot with two hooks. Original unbranded model; printed ratings are generic, not a certification. Overall 6 x 62 x 68 mm. Nominal size: 6.20 x 62.20 x 68.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: three-level-din-rail-screw-terminal-block.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
