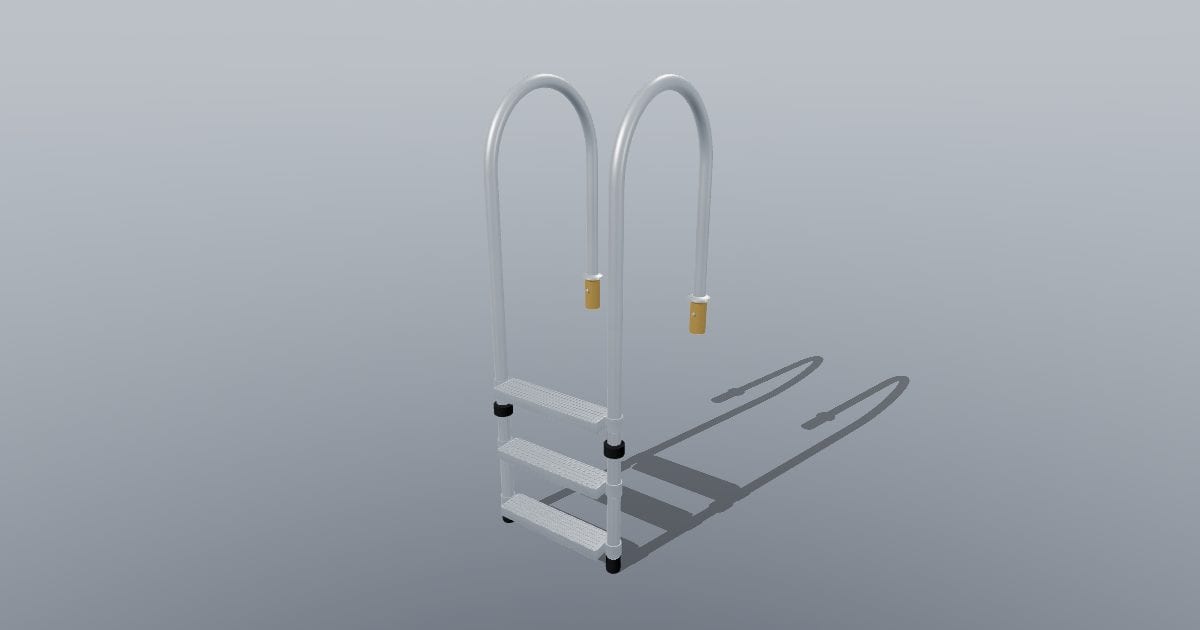

Stainless pool ladder, 3 steps
3D model · GLB · 3.7 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Stainless pool ladder, 3 steps. Overall 600 x 705 x 1704 mm (X width x Y depth x Z height): three-step in-ground pool ladder: two 48.3 mm (1.90 in) stainless handrails bent over the coping, three ribbed stainless treads on clamp brackets at 255 mm spacing, rubber bumpers and end caps, deck escutcheons over bronze anchor sockets on 508 mm centres. Original unbranded model. Overall 600 x 705 x 1704 mm. Nominal size: 600.00 x 705.00 x 1704.15 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: stainless-pool-ladder-3-steps.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
