Tram stop
3D model · GLB · 14.7 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

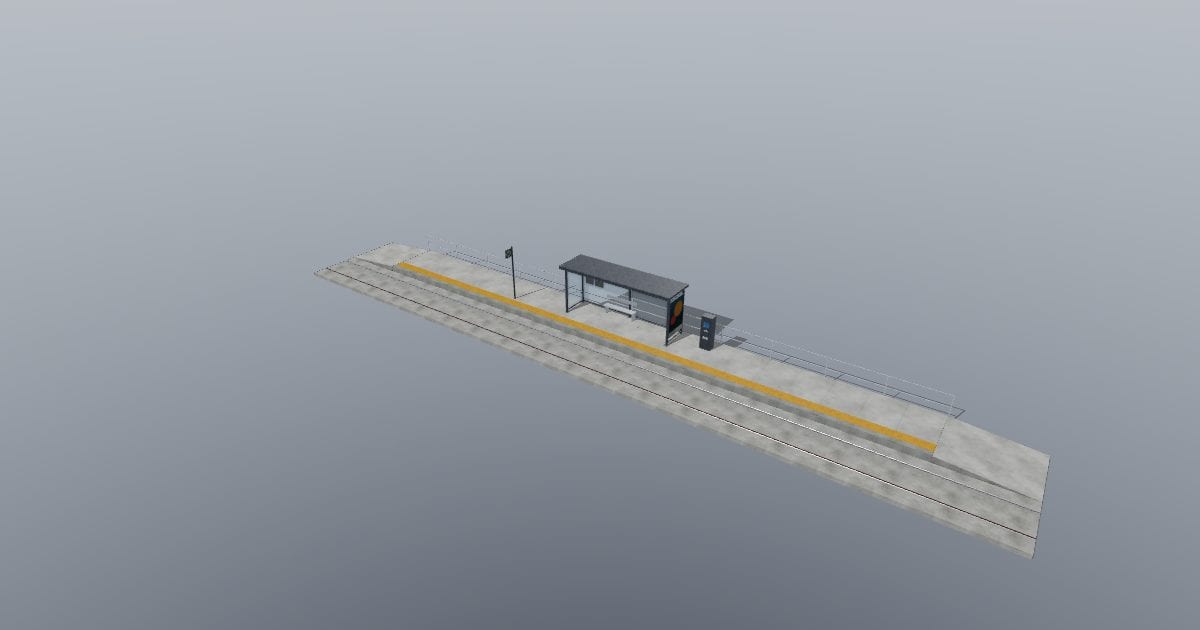

Tram stop: tram stop, 37.20 x 5.82 x 3.54 m overall (measured, X x Y x Z). Platform 30.00 x 3.00 m with its top 0.30 m above the rail head and its edge 1.32 m from the track centreline, 3.60 m end ramps (1:12), a light edge band and a yellow tactile warning strip; embedded grooved-rail track at standard gauge (1.435 m) with rail tops at Z = 0; glass shelter with 2.50 m clear height above the platform, bench, ticket machine, railing and stop pylon with an original tram pictogram. Original unbranded model. Overall 37.2 x 5.8 x 3.5 m. Nominal size: 37200.00 x 5820.00 x 3540.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: tram-stop.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
