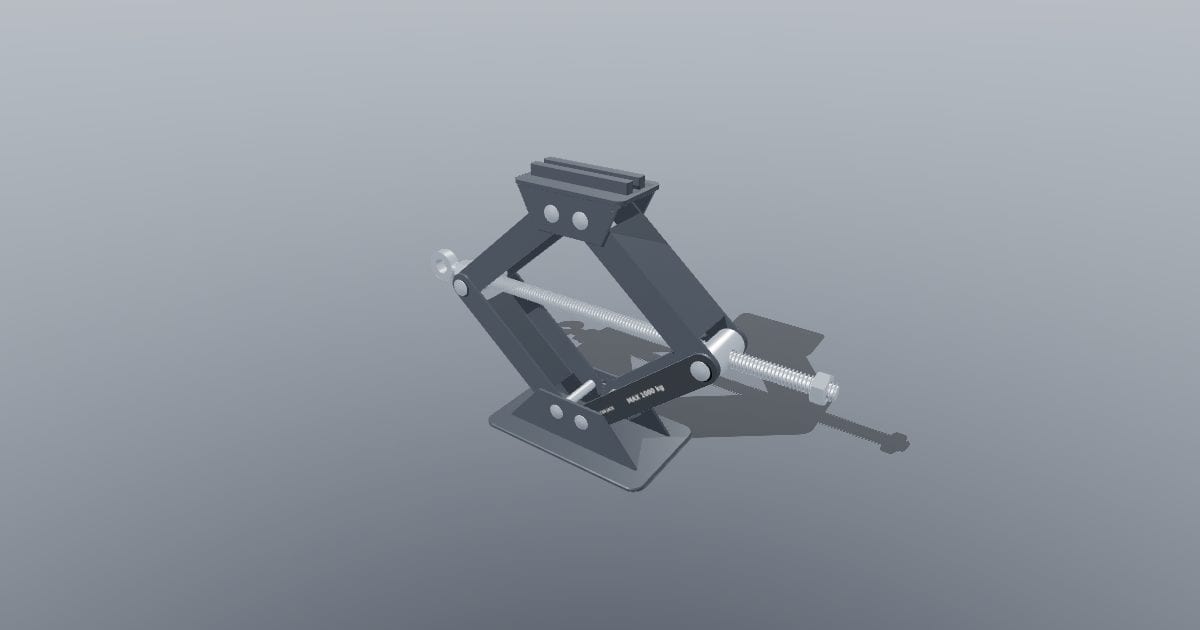

Scissor car jack 1 t with crank eye
3D model · GLB · 1.0 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Scissor car jack 1 t with crank eye. Overall 351.0 x 90.0 x 215.0 mm (X x Y x Z, Z up): 1 t scissor car jack shown part raised: pressed steel base and saddle with pinch-weld groove, four U-channel arms with meshing gear segments, trunnions, 12.5 x 2.5 mm lifting screw with real thread, crank eye and stop nut, printed MAX 1000 kg. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 351 x 90 x 215 mm. Nominal size: 351.00 x 90.00 x 215.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: scissor-car-jack-1-t-with-crank-eye.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
