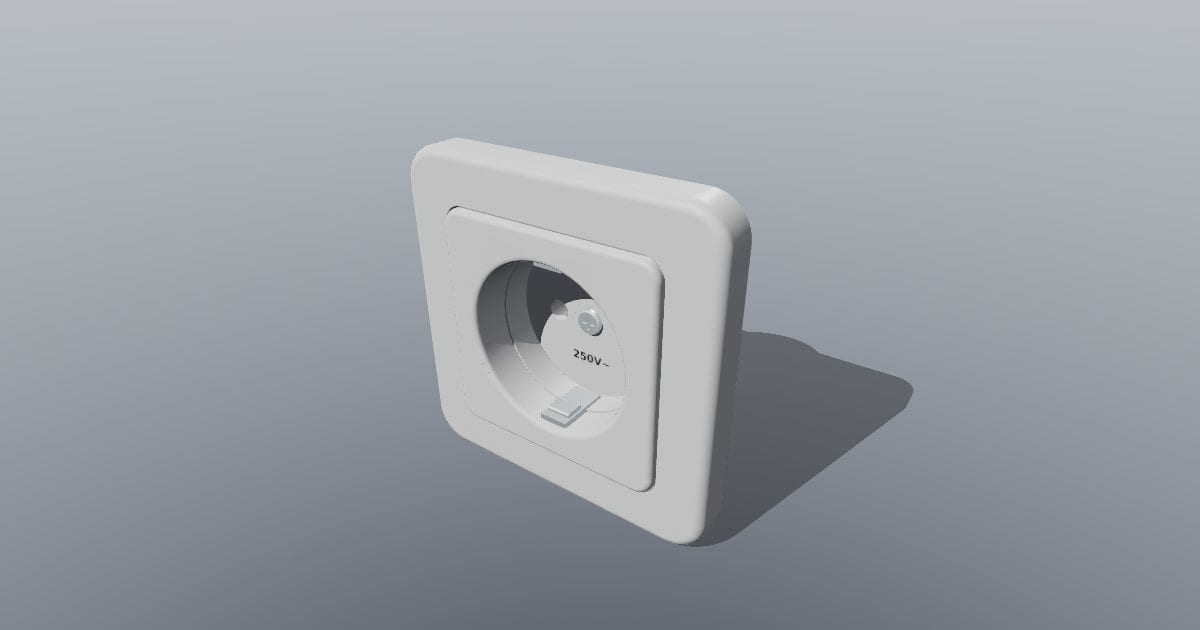

Schuko socket outlet (CEE 7/3, flush mounted)
3D model · GLB · 338 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Schuko socket outlet (CEE 7/3, flush mounted). Overall 80.0 x 42.3 x 80.0 mm (width x depth x height, including handles, terminals and clips): flush-mounted CEE 7/3 socket outlet with 80 x 80 mm frame, 17.5 mm deep recess, pin holes on 19 mm centres, side earthing clips, steel support ring and box fixing claws. Original unbranded model; printed ratings are generic, not a certification. Overall 80 x 42 x 80 mm. Nominal size: 80.00 x 42.30 x 80.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: schuko-socket-outlet-cee-7-3-flush-mounted.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
