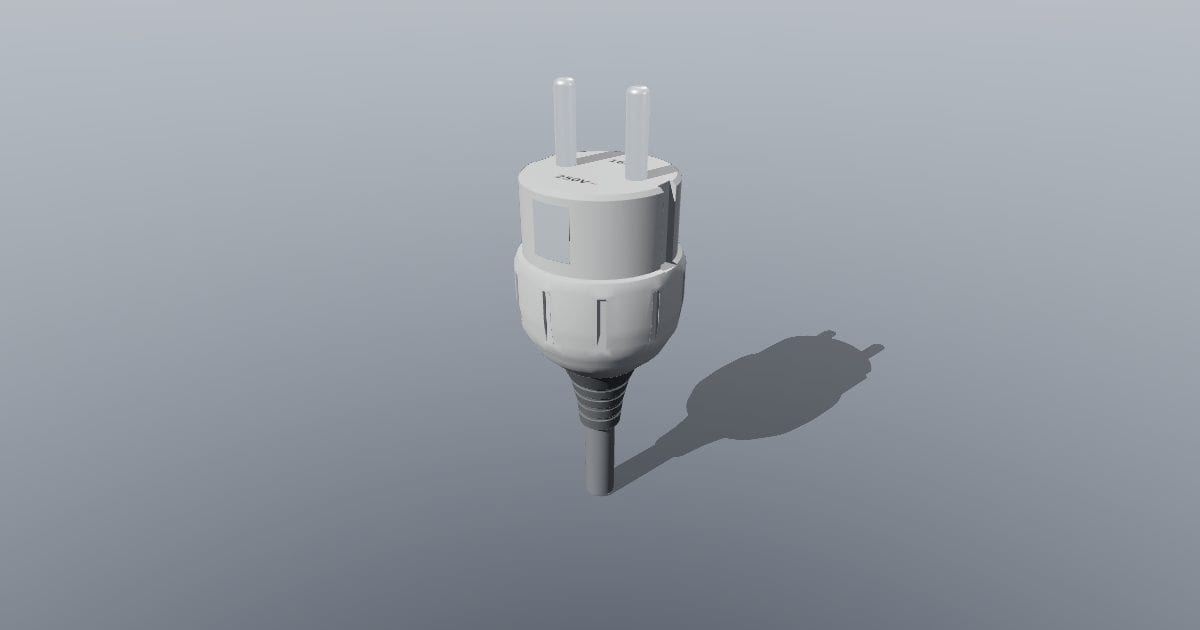

Schuko plug (CEE 7/4)
3D model · GLB · 366 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Schuko plug (CEE 7/4). Overall 40.8 x 40.8 x 111.0 mm (width x depth x height, including handles, terminals and clips): CEE 7/4 plug with 4.8 x 19 mm pins on 19 mm centres, side earth contact strips, guide notches, gripped body, strain relief and cable stub. Original unbranded model; printed ratings are generic, not a certification. Overall 41 x 41 x 111 mm. Nominal size: 40.80 x 40.80 x 111.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: schuko-plug-cee-7-4.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
