Roundabout

Description

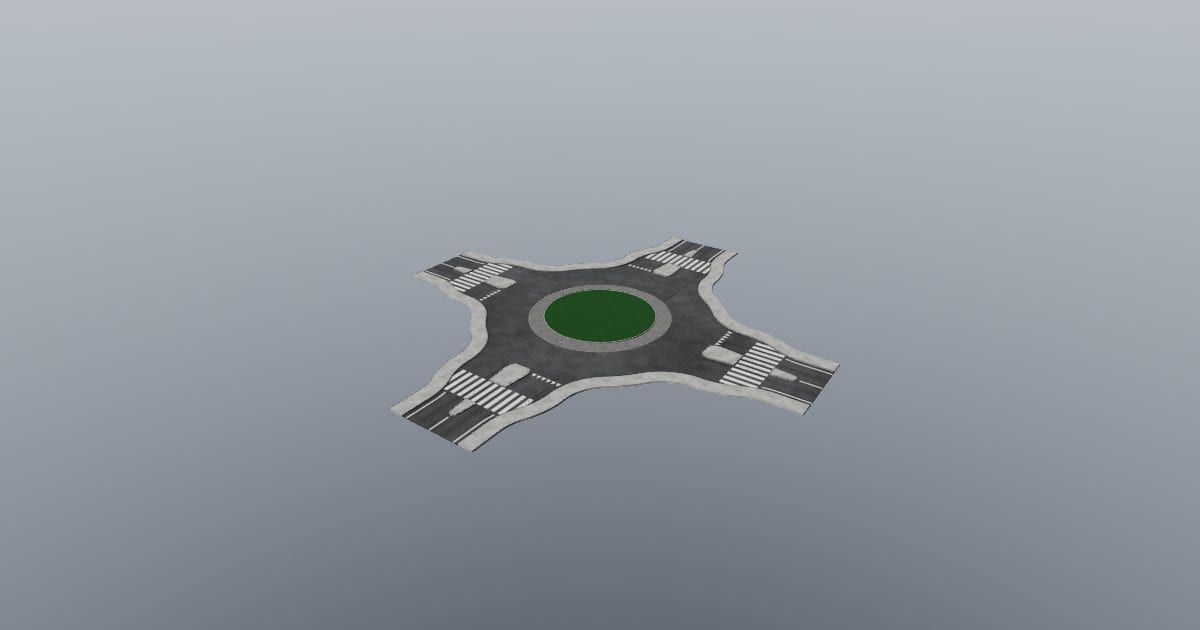

Roundabout: compact single-lane roundabout, 60.00 x 60.00 m footprint, 0.30 m overall height (measured, X x Y x Z), with four S12 arms. Measured cross-section at the west, east, south and north edges: 1.85 m concrete sidewalk + 0.15 m precast curb + 8.00 m asphalt carriageway + 0.15 m precast curb + 1.85 m concrete sidewalk = 12.00 m (S12 profile); road surface 0.00 m, curb and sidewalk tops +0.15 m, i.e. a 0.15 m curb reveal. Measured along the 45-degree radius: planted central island to 7.35 m inside a curb with its top at +0.20 m, a 2.00 m mountable granite-sett truck apron (radius 7.50 to 9.50 m, rising to +0.05 m), a 5.50 m circulatory roadway at road level and the outer curb face at radius 15.00 m, i.e. a 30.00 m inscribed circle diameter. Flared entries with splitter islands and pedestrian refuges; base 0.10 m deep. Painted (authored): zebra crossings on every arm, give-way teeth at the entries and 0.15 m lines. Right-hand traffic (counter-clockwise circulation); original unbranded model. Overall 60 x 60 x 0.3 m. Nominal size: 60000.00 x 60000.00 x 300.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: roundabout.glb · added 2026-10-24 · available until 2029-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
