Road T-junction

Description

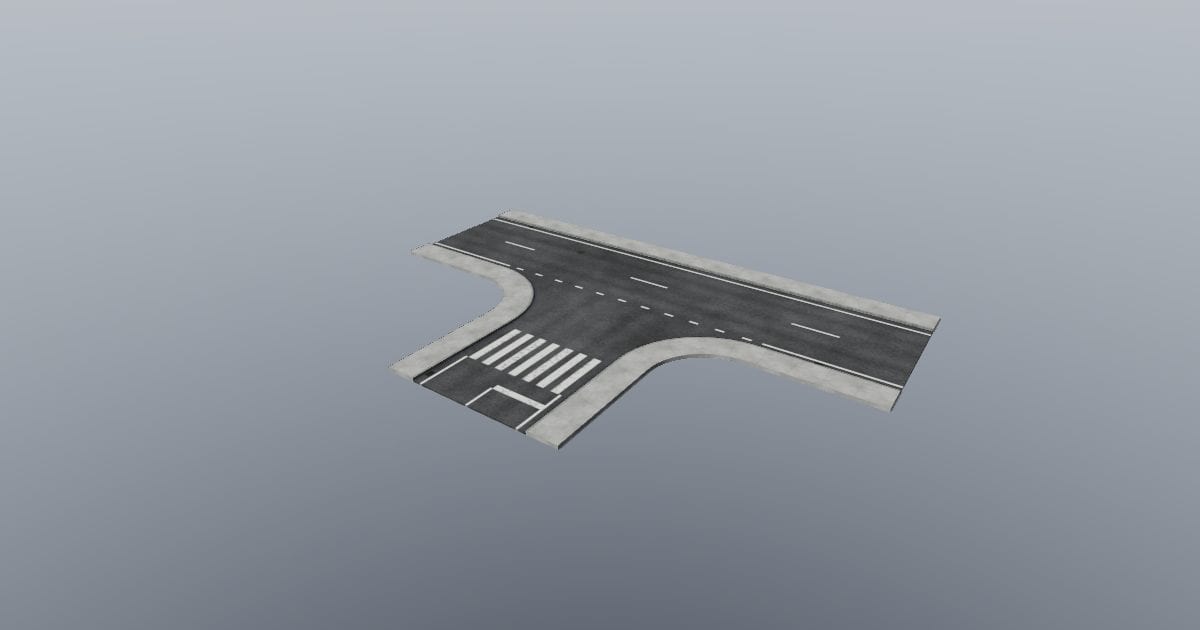

Road T-junction: T-junction module, 36.00 x 24.00 m footprint, 0.25 m overall height (measured, X x Y x Z). Measured cross-section at the west, east and south edges: 1.85 m concrete sidewalk + 0.15 m precast curb + 8.00 m asphalt carriageway + 0.15 m precast curb + 1.85 m concrete sidewalk = 12.00 m (S12 profile); road surface 0.00 m, curb and sidewalk tops +0.15 m, i.e. a 0.15 m curb reveal. Curb returns 6.00 m radius (measured along the diagonals from the junction centre). Base 0.10 m deep. Painted in the colour texture (authored, not geometry): two 3.50 m lanes inside 0.50 m edge strips, 0.15 m white lines; a zebra crossing (0.50 m stripes, 4.0 m long) and a 0.40 m stop line on the side road, and a dotted edge-line extension across the junction mouth. Right-hand traffic; original unbranded model. Overall 36 x 24 x 0.3 m. Nominal size: 36000.00 x 24000.00 x 250.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: road-t-junction.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
