Railroad crossing

Description

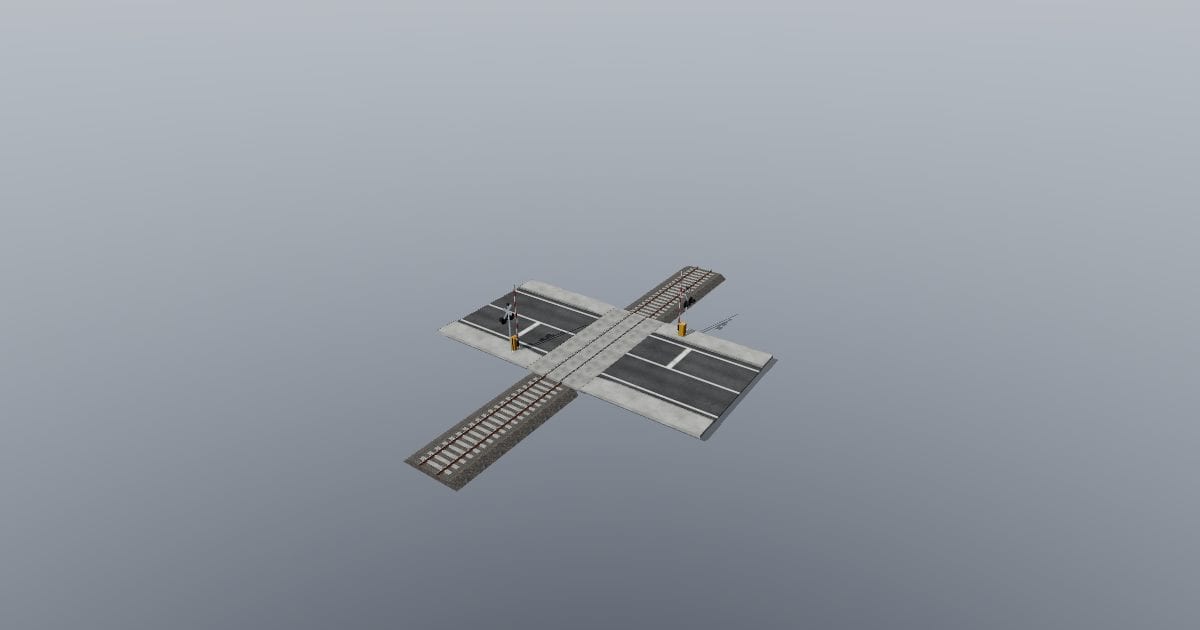

Railroad crossing: level-crossing module, 24.00 x 36.00 m footprint, 6.38 m overall height (measured, X x Y x Z), road along X and track along Y. Measured cross-section at the west and east edges: 1.85 m concrete sidewalk + 0.15 m precast curb + 8.00 m asphalt carriageway + 0.15 m precast curb + 1.85 m concrete sidewalk = 12.00 m (S12 profile); road surface 0.00 m, curb and sidewalk tops +0.15 m, i.e. a 0.15 m curb reveal. Track (measured): standard gauge 1.435 m between rail-head gauge faces 14 mm below the rail top, rail tops at 0.00 m flush with the concrete crossing panels and rubber flangeway fillers, ballast shoulders down to -0.60 m at both track ends. Two signal masts on the sidewalks, each with a crossbuck centred 3.60 m above the road, twin 300 mm flashing lights centred 3.00 m up (shown idle, unlit) and a 4.60 m red and white barrier arm shown raised. Painted (authored): 0.40 m stop lines, 0.15 m lines and the 3.50 m lanes; sidewalks ramp to the panels at about 1:12. Road base 0.10 m deep. Right-hand traffic; original unbranded model. Overall 24 x 36 x 6.4 m. Nominal size: 24000.00 x 36000.00 x 6380.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
