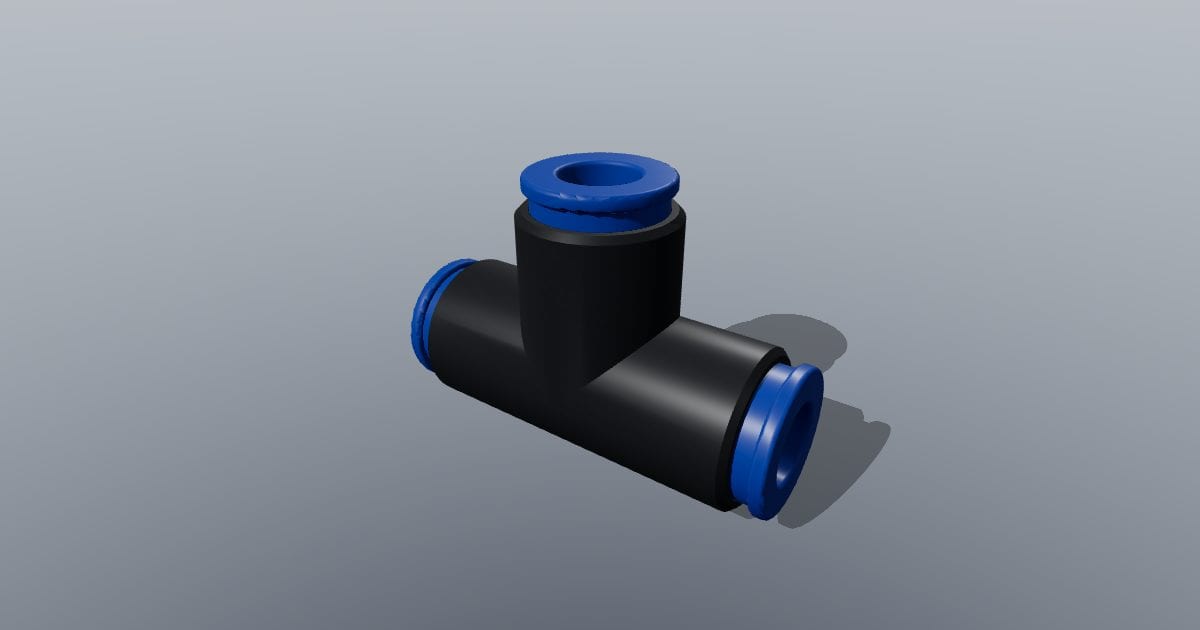

Push-in union tee fitting, 6 mm tube
3D model · GLB · 525 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Push-in union tee fitting, 6 mm tube. Overall 33.6 x 12.6 x 23.1 mm (X x Y x Z, Z up): equal union tee with three push-in sockets for 6 mm OD tube: black polymer body, blue release collet, stainless grip ring and O-ring visible in the socket. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 34 x 13 x 23 mm. Nominal size: 33.60 x 12.60 x 23.10 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: push-in-union-tee-fitting-6-mm-tube.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
