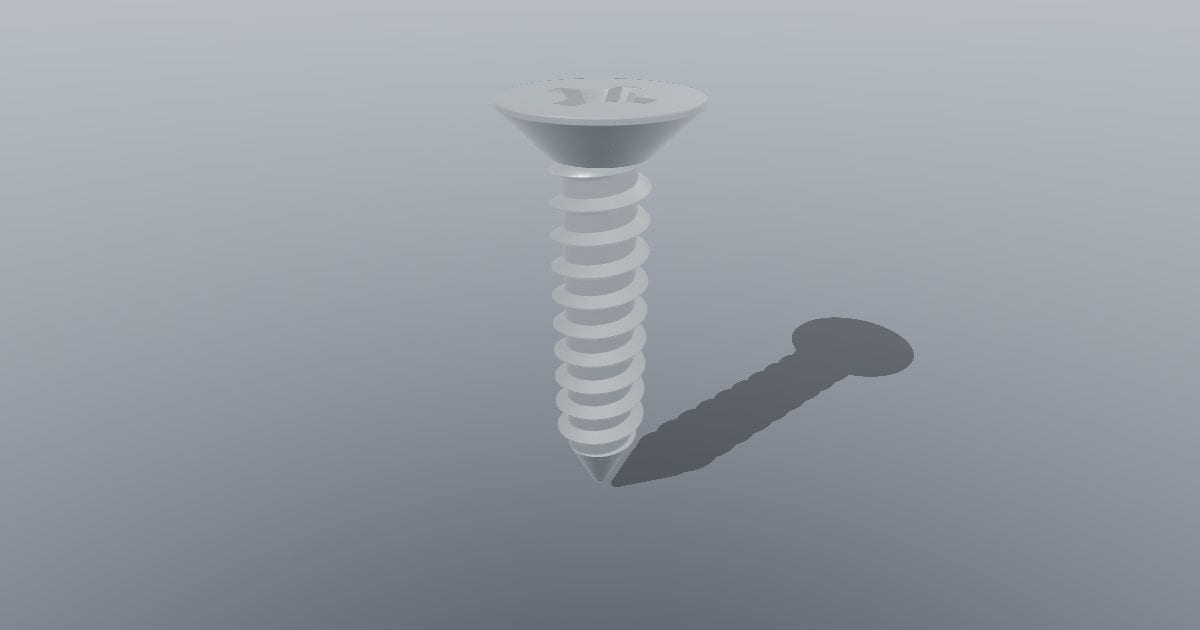

Self-tapping screw, countersunk ST4.2 x 19 (ISO 7050)
3D model · GLB · 305 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Self-tapping screw, countersunk ST4.2 x 19 (ISO 7050). Overall 8.2 x 8.2 x 19.0 mm (X x Y x Z, Z up): zinc-plated or stainless self-tapping screw, 90 degree countersunk head ST4.2 x 19 (ISO 7050 dimensions), cross recess H2, length including head, real ISO 1478 style thread with true pitch, major and core diameters running out over a type C point. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 8 x 8 x 19 mm. Nominal size: 8.19 x 8.20 x 19.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: self-tapping-screw-countersunk-st4-2-x-19-iso-7050.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
