Push-in straight male fitting, 8 mm tube x G1/4
3D model · GLB · 530 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

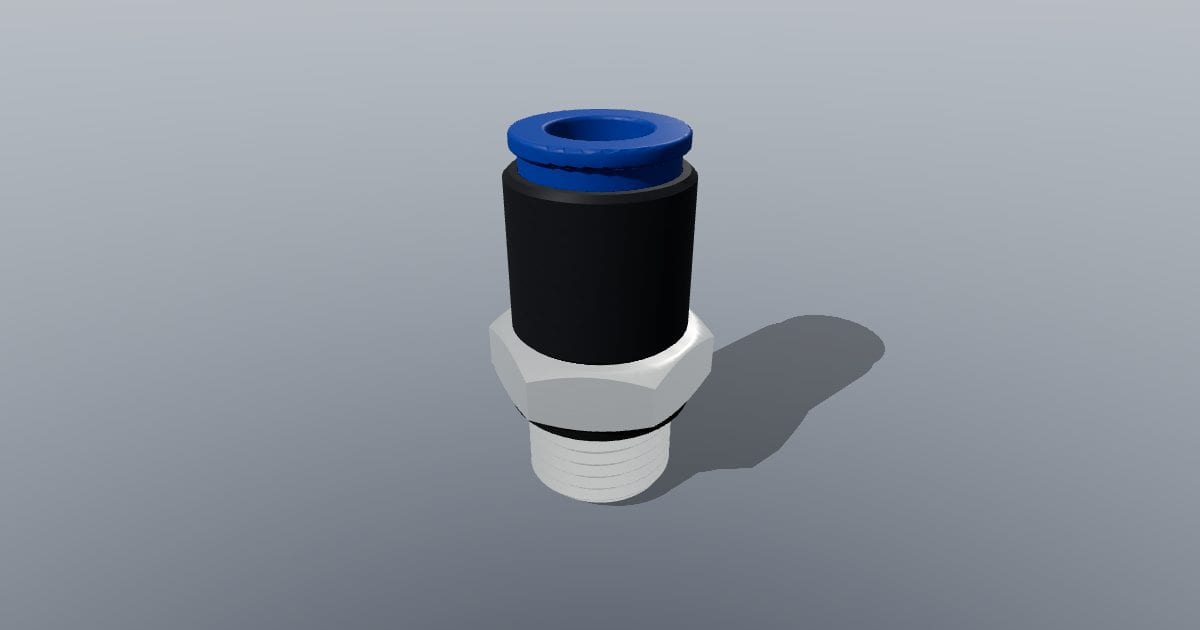

Push-in straight male fitting, 8 mm tube x G1/4. Overall 17.0 x 19.6 x 31.8 mm (X x Y x Z, Z up): straight male push-in connector for 8 mm OD tube: black polymer body, blue release collet, stainless grip ring and O-ring visible in the socket, nickel-plated G1/4 male thread (real 55 degree parallel thread) with sealing ring and 17 mm hexagon. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 17 x 20 x 32 mm. Nominal size: 17.00 x 19.63 x 31.80 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: push-in-straight-male-fitting-8-mm-tube-x-g1-4.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
