Push-in male elbow fitting, 8 mm tube x G1/4
3D model · GLB · 565 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

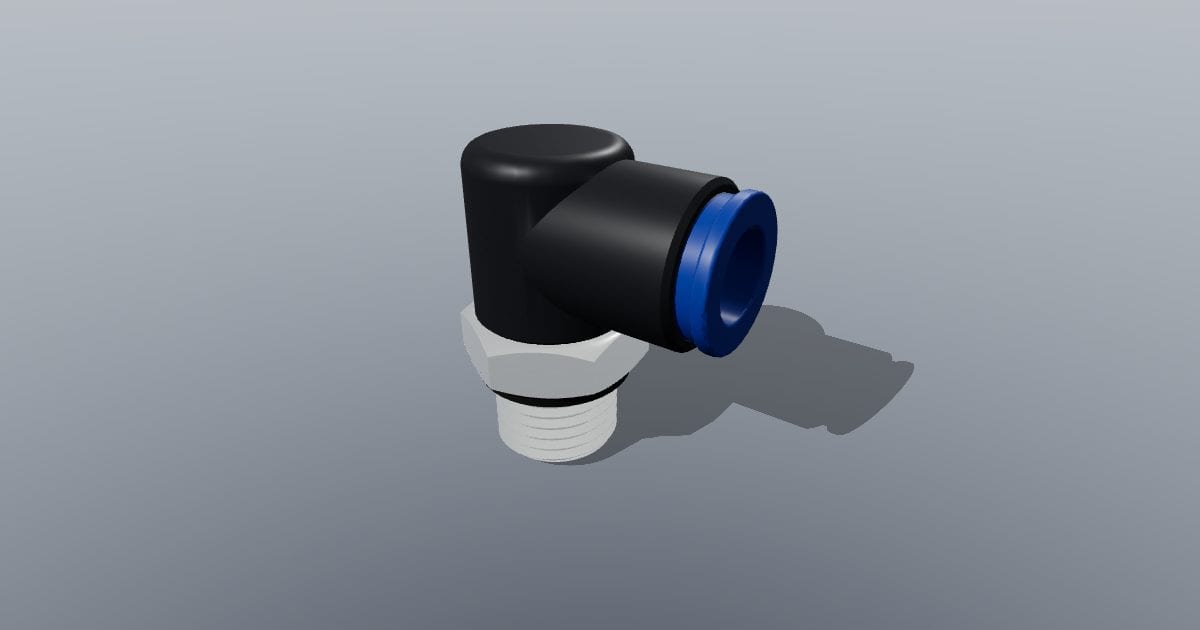

Push-in male elbow fitting, 8 mm tube x G1/4. Overall 28.5 x 19.6 x 32.4 mm (X x Y x Z, Z up): male elbow push-in fitting with swivel body for 8 mm OD tube: black polymer body, blue release collet, stainless grip ring and O-ring visible in the socket, nickel-plated G1/4 male thread (real 55 degree parallel thread) with sealing ring and 17 mm hexagon. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 29 x 20 x 32 mm. Nominal size: 28.50 x 19.63 x 32.40 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
