Push-in bulkhead union fitting, 8 mm tube, M16 x 1
3D model · GLB · 689 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

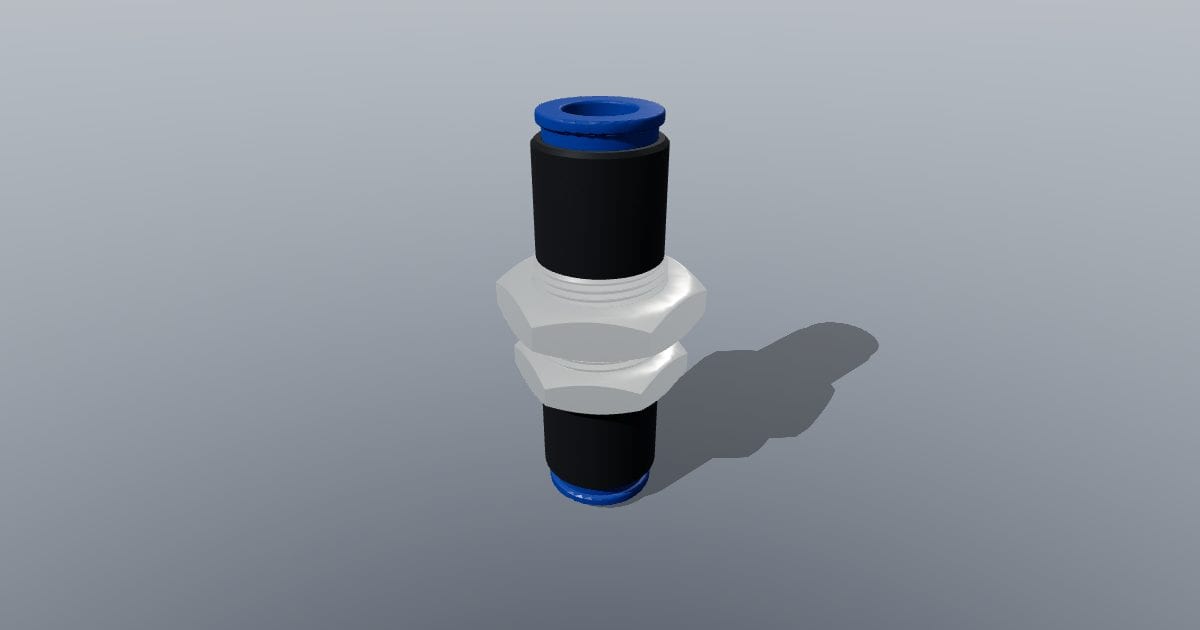

Push-in bulkhead union fitting, 8 mm tube, M16 x 1. Overall 22.0 x 25.4 x 49.5 mm (X x Y x Z, Z up): bulkhead union with panel locknut for 8 mm OD tube: black polymer body, blue release collet, stainless grip ring and O-ring visible in the socket, real M16 x 1 body thread with flange hexagon and locknut. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 22 x 25 x 49 mm. Nominal size: 22.00 x 25.40 x 49.50 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: push-in-bulkhead-union-fitting-8-mm-tube-m16-x-1.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
