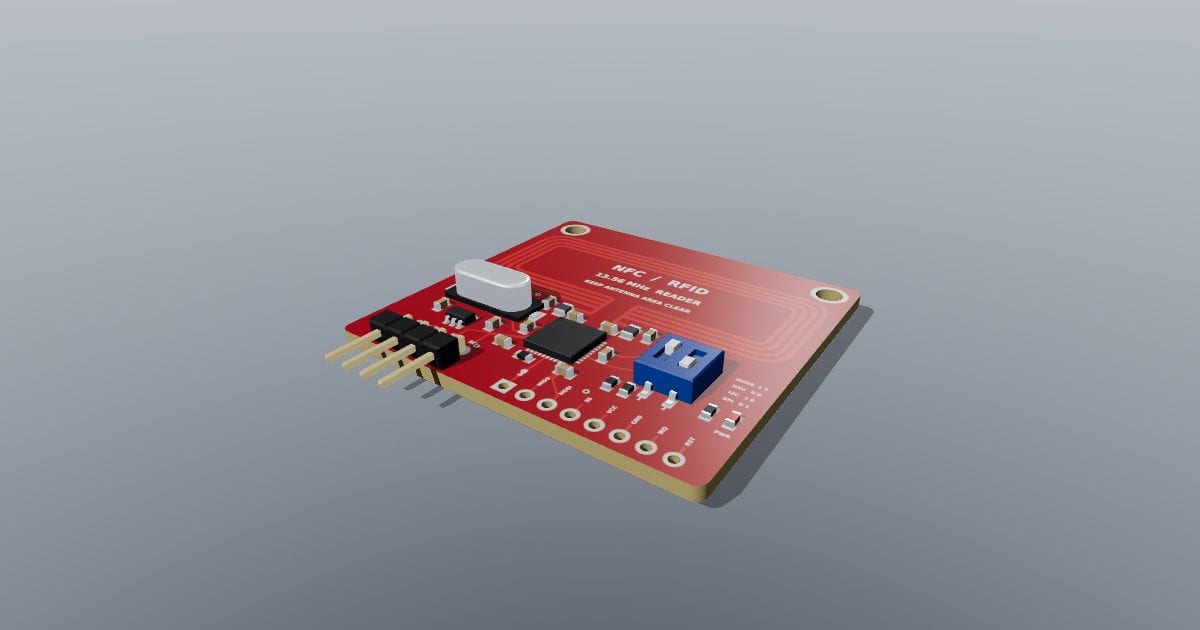

PN532 class NFC RFID reader module, 13.56 MHz
3D model · GLB · 1.0 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
PN532 class NFC RFID reader module, 13.56 MHz. Overall 42.7 x 46.2 x 6.3 mm (X x Y x Z, Z up): 42.7 x 40.4 mm red board with a four-turn printed 13.56 MHz loop antenna, QFN controller, crystal, matching network, HSU / I2C / SPI mode switch, right-angle I2C header and eight SPI holes. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 43 x 46 x 6 mm. Nominal size: 42.70 x 46.20 x 6.30 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: pn532-class-nfc-rfid-reader-module-13-56-mhz.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
