Parking lot with bays
3D model · GLB · 14.3 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

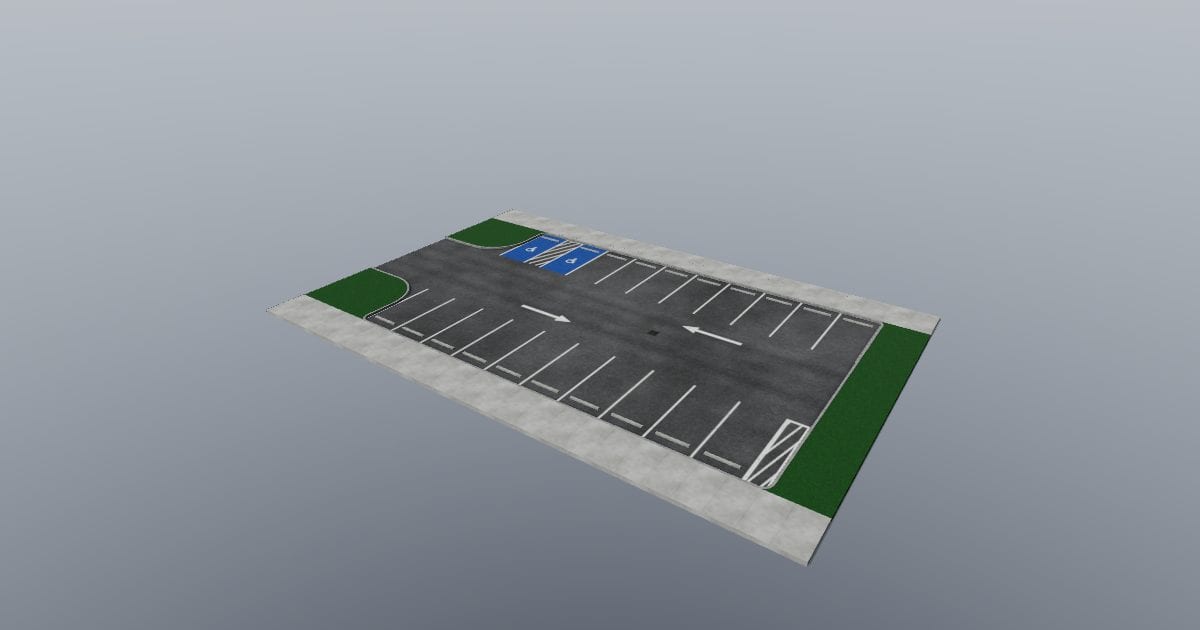

Parking lot with bays: parking lot module, 36.00 x 24.00 m footprint, 0.25 m overall height (measured, X x Y x Z). Measured at the west entrance: 2.75 m sidewalk + 5.45 m planted island + 0.15 m curb + 7.30 m two-way drive aisle at road level (0.00 m) + 0.15 m curb + 5.45 m planted island + 2.75 m sidewalk; curb tops +0.15 m. 20 precast wheel stops, each 1.83 x 0.15 x 0.10 m (measured). Painted (authored): 2.60 x 5.50 m bays facing a 7.30 m aisle, two 2.44 m accessible bays sharing a 1.52 m hatched access aisle with the access symbol, 0.10 m bay lines and direction arrows. Base 0.10 m deep. Original unbranded model. Overall 36 x 24 x 0.3 m. Nominal size: 36000.00 x 24000.00 x 250.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: parking-lot-with-bays.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
