One-channel 5 V relay module
3D model · GLB · 1.1 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

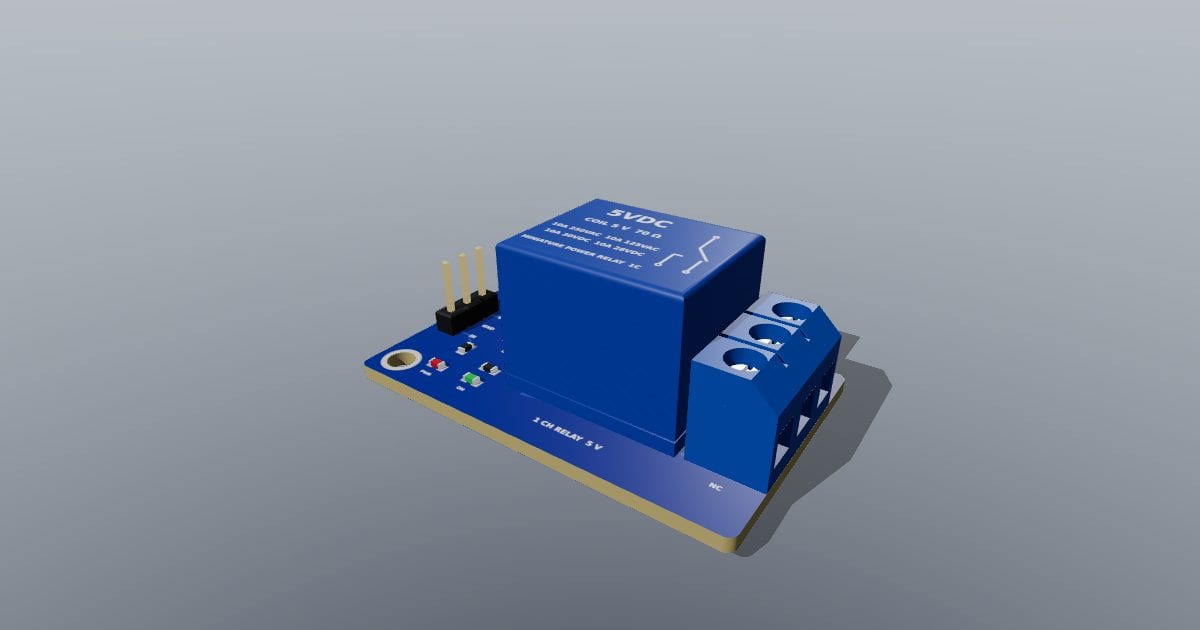

One-channel 5 V relay module. Overall 43.0 x 27.0 x 18.1 mm (X x Y x Z, Z up): blue board with a sealed 5 V relay (printed generic 10 A ratings), 3-way screw terminal NO / COM / NC with clamps and screws, driver transistor, flyback diode, two LEDs and a VCC / GND / IN header. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 43 x 27 x 18 mm. Nominal size: 43.00 x 27.00 x 18.10 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: one-channel-5-v-relay-module.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
