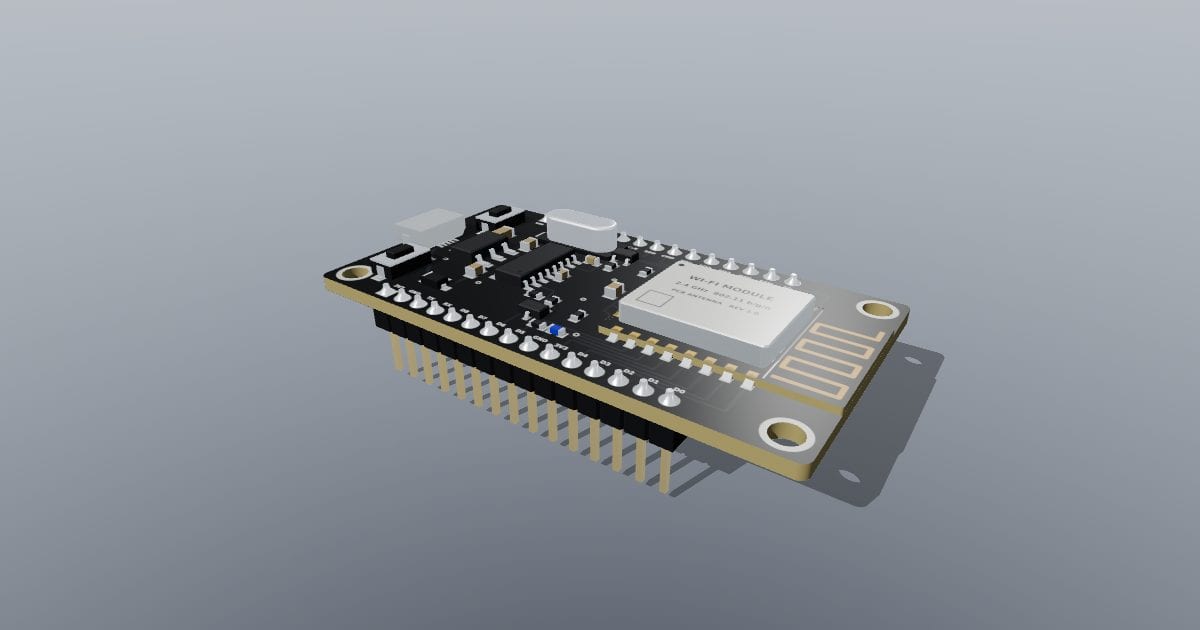

NodeMCU-compatible ESP8266 Wi-Fi development board
3D model · GLB · 1.5 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
NodeMCU-compatible ESP8266 Wi-Fi development board. Overall 58.6 x 31.0 x 13.8 mm (X x Y x Z, Z up): 58 x 31 mm Wi-Fi development board: shielded 2.4 GHz module with printed antenna, micro-B USB, USB-serial bridge with crystal, 3.3 V regulator, RST and FLASH buttons, status LED, two 15-pin rows 27.94 mm apart pointing down, pin names printed on both sides. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 59 x 31 x 14 mm. Nominal size: 58.60 x 31.00 x 13.80 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
