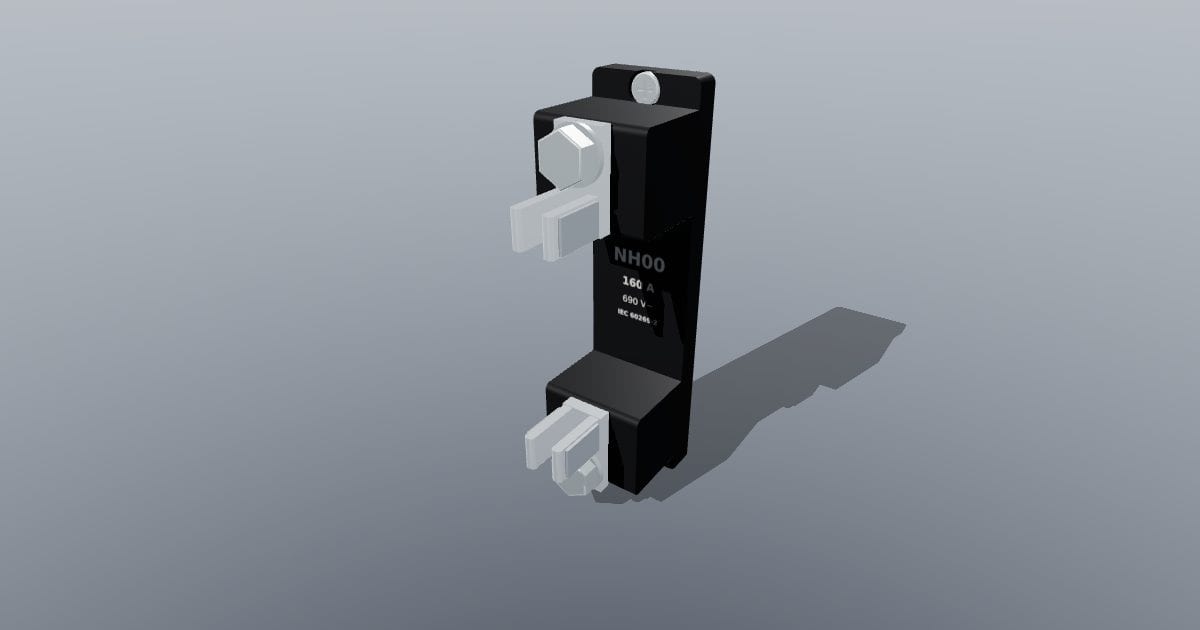

NH00 fuse holder (single-pole fuse base)
3D model · GLB · 378 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
NH00 fuse holder (single-pole fuse base). Overall 34.0 x 57.0 x 128.0 mm (width x depth x height, including handles, terminals and clips): single-pole NH00 fuse base, silvered contact jaws with steel springs for 6 mm blades, M8 bolt terminals and two fixing screws on 119 mm centres. Original unbranded model; printed ratings are generic, not a certification. Overall 34 x 57 x 128 mm. Nominal size: 34.00 x 57.00 x 128.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: nh00-fuse-holder-single-pole-fuse-base.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
