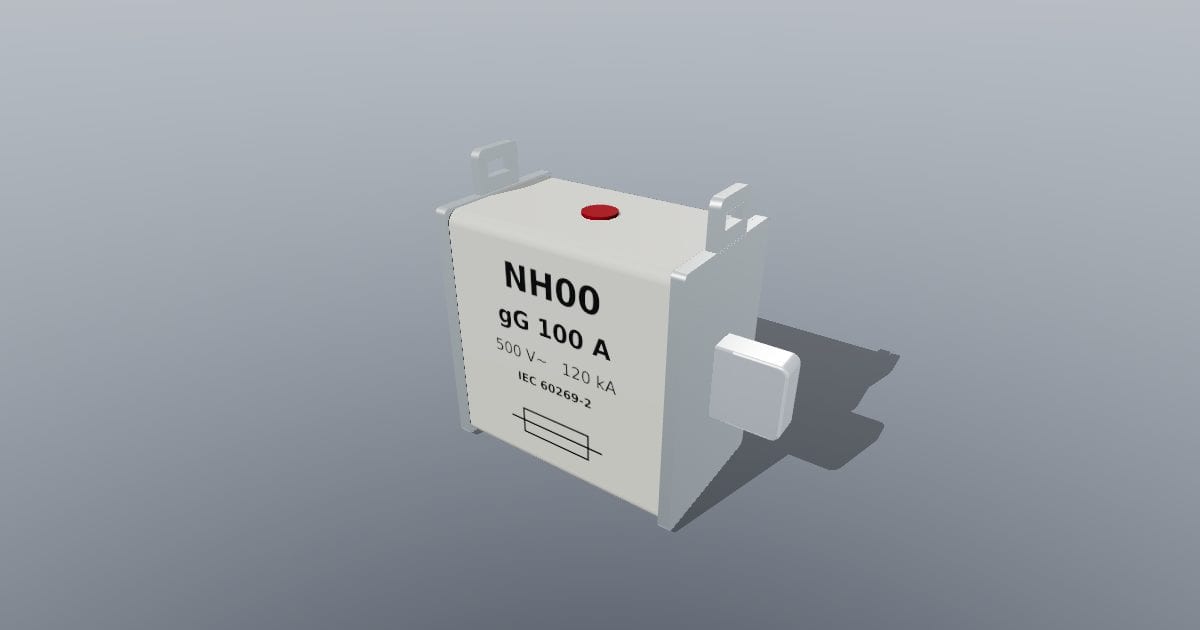

NH00 blade fuse-link gG 100 A
3D model · GLB · 367 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
NH00 blade fuse-link gG 100 A. Overall 78.5 x 31.2 x 59.4 mm (width x depth x height, including handles, terminals and clips): NH00 knife-blade fuse-link (DIN 43620 size), 78.5 mm over 15 mm wide blades, ceramic body, end plates with gripping lugs and centre indicator, printed gG 100 A rating. Original unbranded model; printed ratings are generic, not a certification. Overall 79 x 31 x 59 mm. Nominal size: 78.50 x 31.20 x 59.40 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: nh00-blade-fuse-link-gg-100-a.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
