Network switch
3D model · GLB · 8.7 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

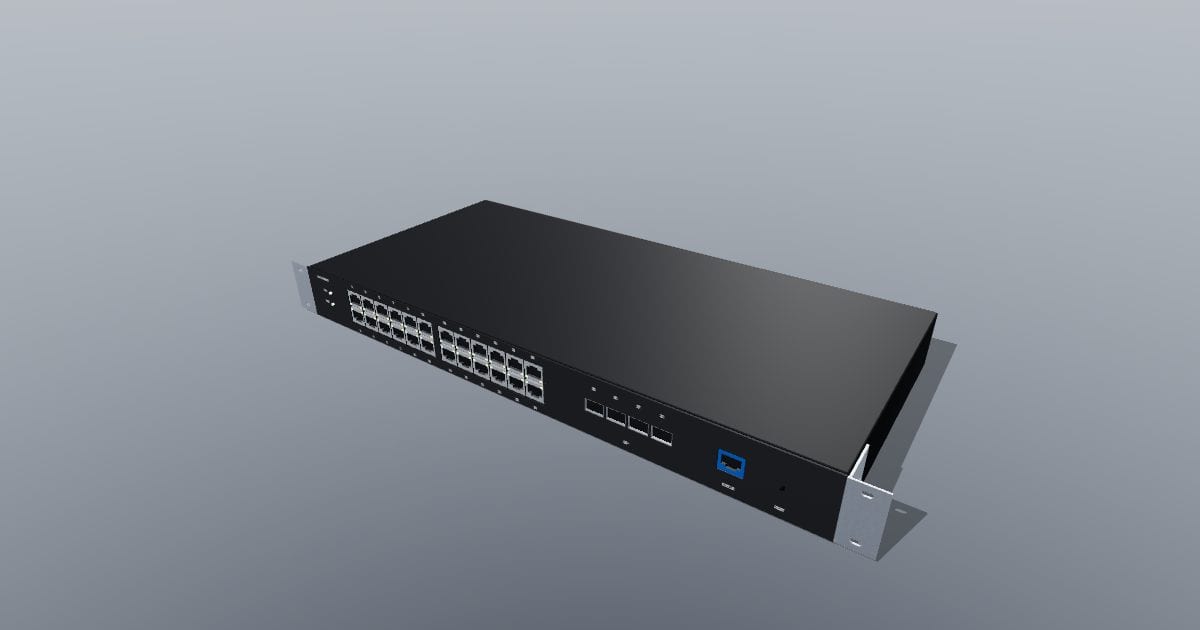

Network switch: generic 24-port gigabit Ethernet switch for a 19 in rack, 440.0 mm wide and 44.0 mm (1U) tall (measured housing), 482.6 mm across the rack ears, 482.6 x 212.8 x 46.0 mm overall (measured, X x Y x Z) incl. ears, inlet and rubber feet. Front: 24 RJ45 ports in two rows with link lights and printed port numbers, four SFP cages, a console port, status lights and a reset pinhole; back: IEC C14 inlet and printed fan vents; ears with slotted holes. Generic design with no logos or brand names. Overall 483 x 213 x 46 mm. Nominal size: 482.61 x 212.80 x 46.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: network-switch.glb · added 2026-10-25 · available until 2030-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
