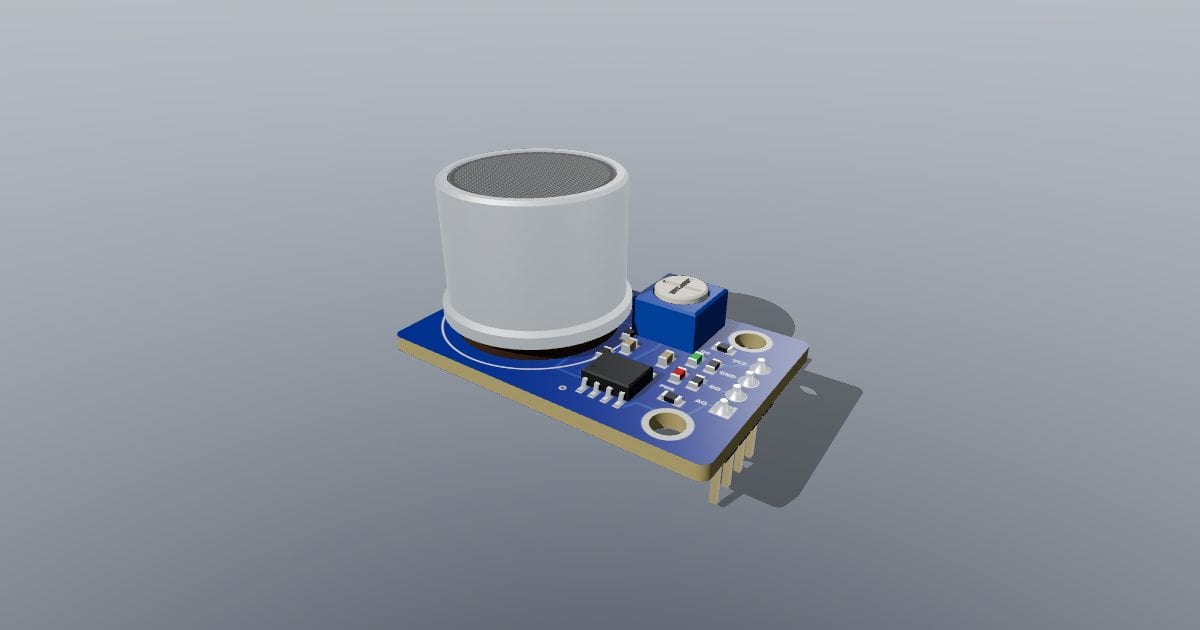

MQ-2 style gas sensor module
3D model · GLB · 1.4 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
MQ-2 style gas sensor module. Overall 34.5 x 22.0 x 25.5 mm (X x Y x Z, Z up): blue sensor board with a 19 mm gas sensor element (bakelite base, metal cap, stainless mesh), comparator, threshold trimmer, power and output LEDs and a 4-pin VCC / GND / DO / AO header pointing down. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 34 x 22 x 25 mm. Nominal size: 34.50 x 22.00 x 25.45 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: mq-2-style-gas-sensor-module.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
